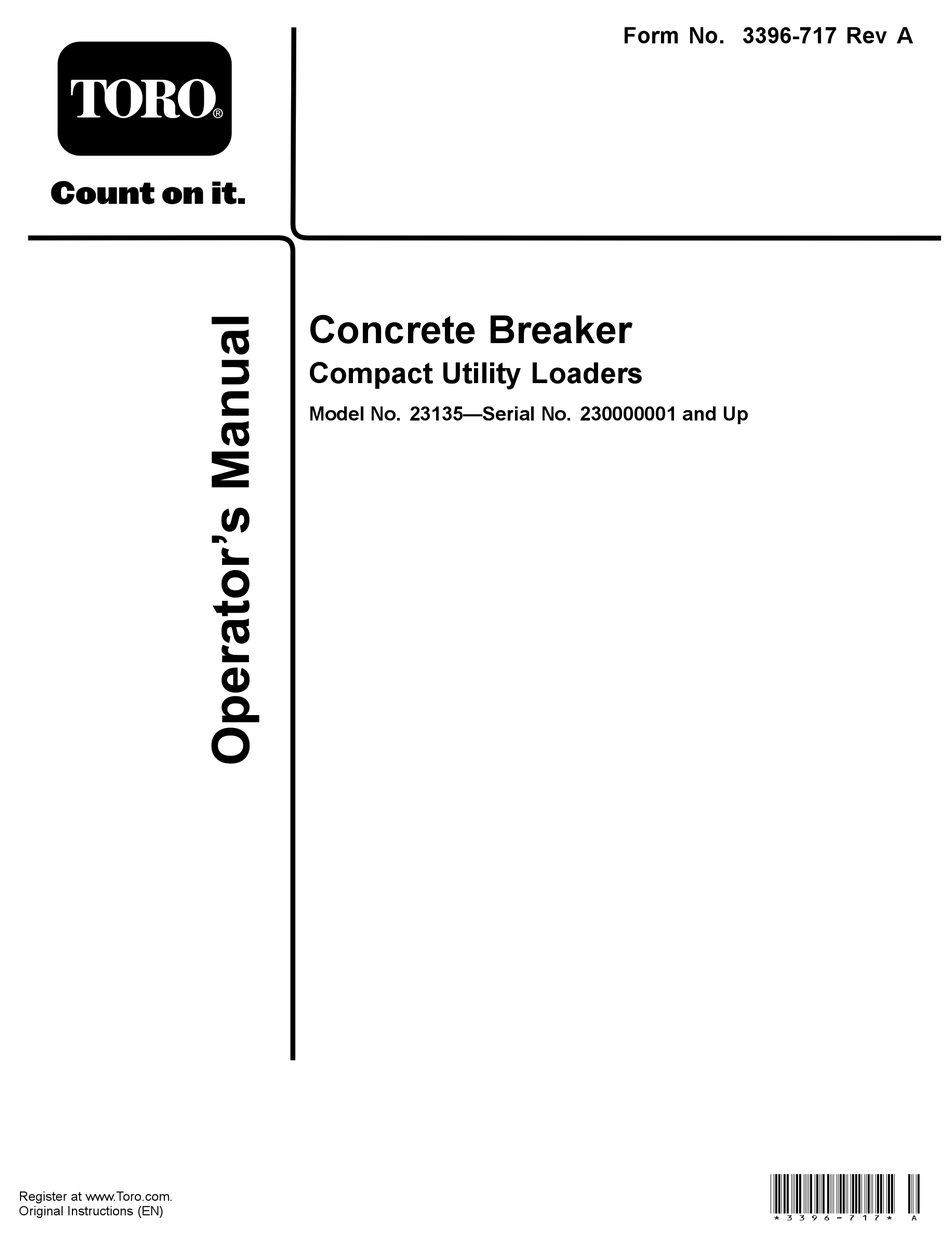

Form No. 3396-717 Rev A Concrete Breaker Compact Utility Loaders Model No. 23135—Serial No. 230000001 and Up *3396-717* A Register at www.Toro.com. Original Instructions (EN)
You are responsible for operating the product properly and safely. You may contact Toro directly at www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.
• Do not take apart the body of the breaker. • Do not attempt to recharge the chamber yourself. Always take the breaker to and Authorized Toro Dealer for recharging. • Ensure that the breaker is charged only with nitrogen. Other gases can explode.
Stability ratings Safety and Instructional Decals To determine the degree of slope you can traverse with the attachment installed on a traction unit, find the stability rating Safety decals and instructions are easily for the hill position you want to travel in the appropriate visible to the operator and are located near table below, then find the degree of slope for the same rating any area of potential danger.
Setup 8. Hold the bit in place and insert the 2 bit-retaining pins into the breaker housing (Figure Refer to the Operator’s Manual for your traction unit for 9. Drive the pins into place with a hammer (Figure instructions on installing and removing the attachment. 10.
Relief Valve Kit on your traction unit before using the breaker. Failure to install the kit may damage your traction unit. Refer to your Authorized Toro Dealer for more information. Important: Always use the traction unit to lift and move the attachment.
Specifications • Do not move the auxiliary hydraulics lever to engage the breaker unless the bit is on the ground and downward Note: Specifications and design are subject to change pressure is applied. without notice. • Do not bind the bit in the material being cut. Binding of the bit can cause the bit to bend or wear out prematurely.
Maintenance CAUTION If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the ignition before you do any maintenance. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval •...
Repair or replace any the pressure is dropping in the chamber. If this should part that is damaged or worn. happen, bring the breaker to your Authorized Toro Dealer to be charged. 5. Inspect all hydraulic fittings and hoses for leaks. Repair or replace any fittings or hoses that leak.
3. There is an obstruction in a hydraulic 3. Find and remove the obstruction. hose. 4. An auxiliary valve on the traction unit 4. Repair the valve. does not open. 5. The nitrogen level in the breaker is low. 5. Contact your Authorized Toro Dealer.
Page 12
Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
