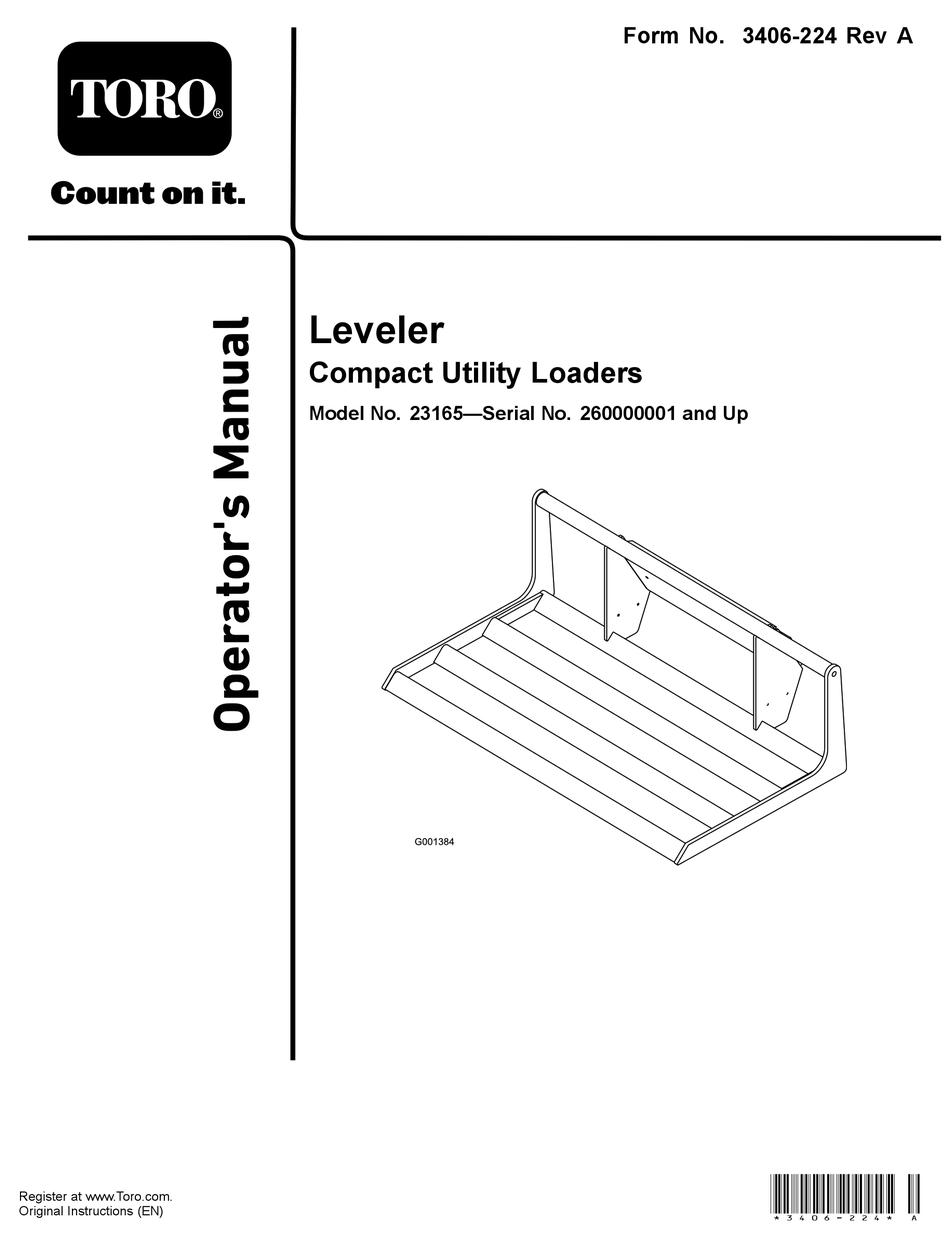

- Page 1 Form No. 3406-224 Rev A Leveler Compact Utility Loaders Model No. 23165—Serial No. 260000001 and Up *3406-224* A Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
You are responsible for operating the product properly and safely. Safety ................3 Safety and Instructional Decals ......... 3 You may contact Toro directly at www.Toro.com for product Product Overview ............4 and accessory information, help finding a dealer, or to register Specifications ............4 your product. -
Page 3: Safety
Safety WARNING Standing on or riding on the attachment can be Improper use or maintenance by the operator or owner dangerous. The rider may fall or be injured by the can result in injury. To reduce the potential for injury, moving vehicle. -
Page 4: Product Overview
Product Overview WARNING Exceeding the maximum recommended slope can cause the traction unit to tip, crushing you or bystanders. Do not drive the traction unit on a slope steeper than the maximum recommended slope, as determined in the following tables and the traction unit Operator's Manual . -
Page 5: Operation
Operation Stability with a Loaded Leveler with a Counterweight Installing the Attachment on a Orientation Stability Rating Front Uphill Traction Unit Important: Before installing the attachment, ensure that the mount plates are free of any dirt or debris and that the pins rotate freely. If the pins do not rotate freely, Rear Uphill grease them;... -
Page 6: Removing The Attachment
Removing the Attachment WARNING If you do not fully seat the quick-attach pins 1. Lower the attachment to the ground. through the attachment mount plate, the 2. Shut off the engine. attachment could fall off the traction unit, 3. Disengage the quick-attach pins by turning them to crushing you or bystanders. -
Page 7: Storage
Storage 1. Wash the attachment with mild detergent and water to remove dirt and grime from the entire attachment. 2. Paint all scratched or bare-metal surfaces. Paint is available from your Authorized Service Dealer. 3. Store the attachment in a clean, dry garage or storage area.
