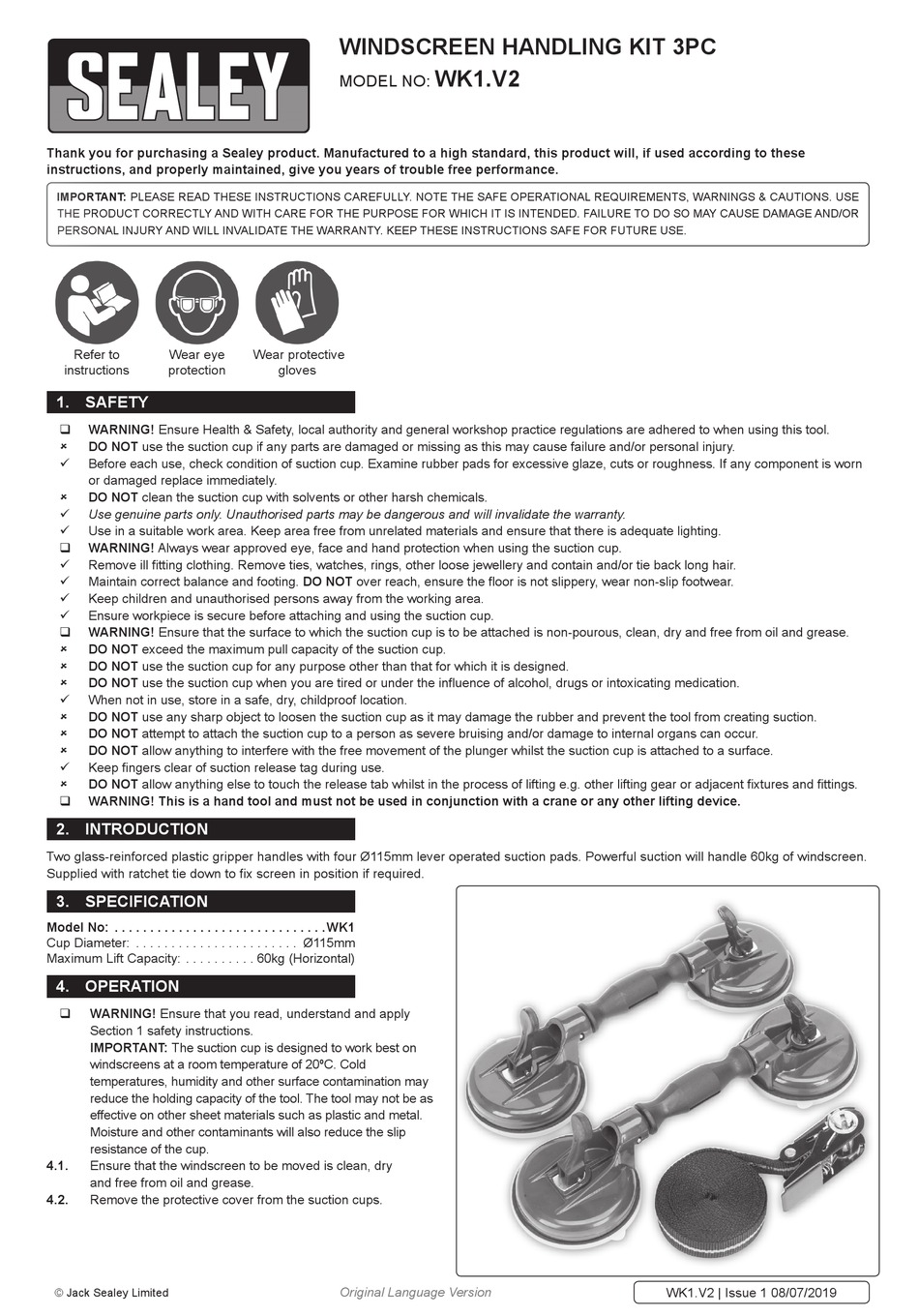

Sealey WK1.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
‰ W ARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this tool.
‰
‰
‰ D O NOT use the suction cup if any parts are damaged or missing as this may cause failure and/or personal injury.
‰ 8
‰ B efore each use, check condition of suction cup. Examine rubber pads for excessive glaze, cuts or roughness. If any component is worn
9
‰
or damaged replace immediately.
‰ D O NOT clean the suction cup with solvents or other harsh chemicals.
‰ 8
‰ U se genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
‰
‰ U se in a suitable work area. Keep area free from unrelated materials and ensure that there is adequate lighting.
9
‰
‰ W ARNING! Always wear approved eye, face and hand protection when using the suction cup.
‰
‰
‰ R emove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain and/or tie back long hair.
9
‰
‰ M aintain correct balance and footing. DO NOT over reach, ensure the floor is not slippery, wear non-slip footwear.
9
‰
‰ K eep children and unauthorised persons away from the working area.
9
‰
‰ E nsure workpiece is secure before attaching and using the suction cup.
9
‰
‰ W ARNING! Ensure that the surface to which the suction cup is to be attached is non-pourous, clean, dry and free from oil and grease.
‰
‰
‰ D O NOT exceed the maximum pull capacity of the suction cup.
‰ 8
‰ D O NOT use the suction cup for any purpose other than that for which it is designed.
‰ 8
‰ D O NOT use the suction cup when you are tired or under the influence of alcohol, drugs or intoxicating medication.
‰ 8
‰ W hen not in use, store in a safe, dry, childproof location.
9
‰
‰ D O NOT use any sharp object to loosen the suction cup as it may damage the rubber and prevent the tool from creating suction.
‰ 8
‰ D O NOT attempt to attach the suction cup to a person as severe bruising and/or damage to internal organs can occur.
‰ 8
‰ D O NOT allow anything to interfere with the free movement of the plunger whilst the suction cup is attached to a surface.
‰ 8
‰ K eep fingers clear of suction release tag during use.
9
‰
DO NOT allow anything else to touch the release tab whilst in the process of lifting e.g. other lifting gear or adjacent fixtures and fittings.
8
WARNING! This is a hand tool and must not be used in conjunction with a crane or any other lifting device.
‰
2. INTRODUCTION
Two glass-reinforced plastic gripper handles with four Ø115mm lever operated suction pads. Powerful suction will handle 60kg of windscreen.
Supplied with ratchet tie down to fix screen in position if required.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .WK1
Cup Diameter: . . . . . . . . . . . . . . . . . . . . . . . Ø115mm
Maximum Lift Capacity: . . . . . . . . . . 60kg (Horizontal)
4. OPERATION
‰ ‰ WARNING! Ensure that you read, understand and apply
‰
‰
Section 1 safety instructions.
IMPORTANT: The suction cup is designed to work best on
windscreens at a room temperature of 20ºC. Cold
temperatures, humidity and other surface contamination may
reduce the holding capacity of the tool. The tool may not be as
effective on other sheet materials such as plastic and metal.
Moisture and other contaminants will also reduce the slip
resistance of the cup.
4.1. Ensure that the windscreen to be moved is clean, dry
and free from oil and grease.
4.2. Remove the protective cover from the suction cups.
© Jack Sealey Limited
WINDSCREEN HANDLING KIT 3PC
MODEL NO:
Wear protective
gloves
Original Language Version
WK1.V2
WK1.V2 | Issue 1 08/07/2019
