- Page 1 Original instructions Smile 41AS-i Push-button box with / without safe AS-i input slaves ABB Jokab Safety Varlabergsvägen 11, 434 39 Kungsbacka www.abb.com/jokabsafety...
- Page 2 DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of ABB JOKAB SAFETY for any act exceed the individual price of the product on which liability asserted.
-
Page 3: Table Of Contents
Operation ............................9 Emergency stop ................................ 9 Key switch ................................. 9 LED indication ................................9 Re-addressing................................. 10 Model overview ........................... 11 Accessories ................................11 Dimensions ................................11 Technical data ..........................12 EC Declaration of conformity ....................14 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 4: Introduction
This document is intended for authorized installation personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB Jokab Safety products. • Knowledge of the AS-i system. • Knowledge of machine safety. -

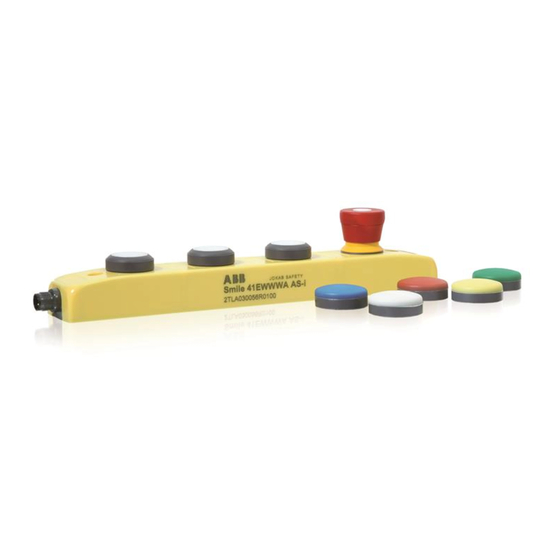

Page 5: Overview
Emergency stop pushbutton box with safe key selector One non-safe and two safe AS-i nodes. (A = Extended addressing) Warning! The emergency stop push-button must only be used in emergency situations, not as a normal stop signal. 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 6: Non-Safe Node
Warning! All variants of Smile 41 AS-i normally needs to be complemented with other safety functions such as interlocking guards etc. Refer to risk analysis. NB: The emergency stop (Smile 41EWWWA AS-i and 41EKWWA AS-i) should not be used as normal stop of the machine, only in case of emergency. 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 7: Connections
3 m cable, 5-pole, 0.34 mm , M12 female + M12 male connectors Flat cable connector to M12 5 x 0.34 mm cable, screen with straight female and male M12 connectors. Screen connected to pin 3 (0 VDC) on male connector. 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 8: Installation And Maintenance
Warning! In case of breakdown or damage to the product, contact the nearest ABB Jokab Safety Service Office or reseller. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 9: Operation
LEDs on a unit with both emergency stop and key selector. In this case they have on safe node each. Bit value Function Central LED off Central LED on, red Central LED off Central LED on, green Left LED off Left LED on Right LED off Right LED on 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 10: Re-Addressing
The push-button box is opened as shown below. A node is shut off when the jumper is removed. The arrow shows the jumpers. Only one node may be active during re-addressing (only one jumper connected). When done, put back all jumpers and assemble the box again. Test and verify the functions. 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 11: Model Overview
Push-button box with emergency stop and key selector Accessories Type Article number Description Key for key selector (spare part) 2TLA030059R1500 Key for key selector (spare part) Kit of colour filters 2TLA030059R2600 Blue, green, red, white, yellow Dimensions NB: All measurements in millimeter. 2TLC172255M0201, rev. D www.abb.com/jokabsafety... -
Page 12: Technical Data
7 Technical data Manufacturer Address: ABB JOKAB SAFETY Varlabergsvägen 11 434 39 Kungsbacka Sweden AS-i data AS-i profile For safe node: S-7.B.0 For non-safe node XXXXA: S-7.A.0 For non-safe node XXXXN: S-7.0 Addressing M12-connector Node address at delivery Non-safe node: 0... - Page 13 SIL3 EN ISO 13849-1 Performance level: PL e, category 4 MTTF : High EN 60947-5-1 & -5 For E-stop button / safety stop button EN ISO 13850:2008 For E-stop button / safety stop button Certification cULus 2TLC172255M0201, rev. D www.abb.com/jokabsafety...
-
Page 14: Ec Declaration Of Conformity
EC Declaration of conformity ABB JOKAB SAFETY Varlabergsvägen 11, 434 39 Kungsbacka, Sweden www.abb.com/jokabsafety 2TLC172255M0201, rev. D www.abb.com/jokabsafety...
