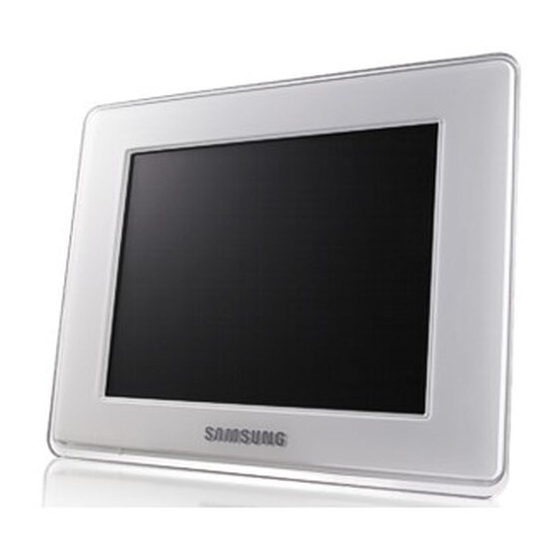

Samsung SPF-83M User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Digital Photo Frame
  5. SPF-83M
  6. User manual

Samsung SPF-83M User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPF-83M

Summary of Contents for Samsung SPF-83M

  • Page 2: Installation

    Safety Symbols Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product. Failure to follow the accompanying directions may lead to serious injury or death. Failure to follow the accompanying directions may lead to minor personal injury or property damage. Safety Symbols Power The images here are for reference only, and are not applicable in all cases (or countries).
  • Page 3 Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may cause electric shock or fire. Make sure to turn the power off and disconnect the power plug from the outlet before moving the product.

  • Page 4: Safety Symbols

    Safety Symbols Installation When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.
  • Page 5 Safety Symbols Using and Cleaning Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire. Never disassemble, repair, or modify the product yourself.
  • Page 6 disconnect the power plug. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life.
  • Page 7 Features Features Expand the memory capacity with a memory card. Enjoy stored images immediately. By connecting a CF or SD /MS memory card of your digital camera to your digital photo frame, you can enjoy the images on your digital photo frame quickly and easily. This also provides a way to expand the memory capacity of your digital photo frame.

  • Page 8: Back Side

    Quick Start Cables Power cord Features Front Features Back Warranty (Not available in all locations) USB cable Power Adapter (A-mini B type) Components Front Components Front User Manual Back Side Back Side...
  • Page 9 The Kensington lock is a device used to physically secure the system when using it in a public place. (The locking device has to be purchased separately.) Kensington lock For using a locking device, contact where you purchase it. Connect the power adapter to this jack. DC –In Jack Connect the power cord to the power terminal of the power adapter.
  • Page 10 Turns the product on or off. ] Power Button Hold down the power button at the right of the product for about 2 seconds. Power Indicator Connect the power cord to the power terminal of the power adapter. Shows the power status. When the product is powered on, the power light turns [MENU] Menu Button Displays the menu window at the bottom left corner of the screen.
  • Page 11 You can insert a CF, SD , MS card into this slot to view and use the contents stored on it. Connect a PC or an external device using a USB cable. Down stream terminal Connect your digital photo frame to a USB-supporting storage device with a USB cable.

  • Page 12: Memory Card

    Connecting the Power Connect the power adapter to the Connect the power cord to the power adapter. Plug the power cord for the product into a nearby outlet. Press the button at the right of the product to turn the product on. Connecting via USB Power terminal at the back of the product.

  • Page 13: Folder Structure

    (For more information on external devices and their cables, contact a relevant service center.) Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.

  • Page 14: Connecting A Memory Card

    Connecting a Memory Card CF/SD /MS CARD Slide the card in the direction marked on the top of the card. Removing the memory card while playing MP3s, movies, or photos, may cause the product to operate abnormally. In this case, turn the product off and on.
  • Page 15 Buttons Photos Buttons Control Buttons Button Turns the product on or off. Hold down the power button on the side of the product for about 2 seconds. MENU Opens the on-screen menu and exits from the menu. VOL +, VOL - Push the button to adjust volume.
  • Page 16 Thumbnail List Menu When pressing the MENU button, the on-screen menu is displayed on the screen. When a file or folder name includes letters and numbers other than English, it may be displayed as '*'. This is neither an error of the product nor of the file.
  • Page 17 You can rotate an image 90°, 180°, or 270°. You can also keep the image as is by selecting Original. Original, Auto Fit, Fit To Width, Fit To Screen Aspect Ratio Select an aspect ratio for images to display. Delete This function deletes a picture being used for the current SlideShow.
  • Page 18 Copy You can copy the selected file to other connected storage devices. Delete Delete the file. Play Menu When pressing the MENU button, the on-screen menu is displayed on the screen. When a file or folder name includes letters and numbers other than English, it may be displayed as '*'. This is neither an error of the product nor of the file.
  • Page 19 Upper OSD Memory Card, CF Card, USB Disk, Frame Memory(:default value) Video Source Select a connected media storage device. You can only select an external device which is currently connected. Once, Continuous Playback Mode You can playback movie files either Once or Continuously. Copy File, Copy All Files Copy You can copy the selected file to other connected storage devices.
  • Page 20 Upper OSD English, Deutsch, Español, Français, Italiano, Русский, Português, Türkçe, 繁體中文, 简体中文, 한국어 Language Select a language to use for your product. Home, Last Mode Starting Mode You can select the menu which is displayed when your Digital Photo Frame starts. On, Off On : If you set the frame on its edge, the sensor detects the change and rotates the picture Auto Rotation...
  • Page 21 Update the product using external memory(CF/SD /MS,USB). Firmware Update Please visit www.samsung.com Yes, No Reset Settings Reverts the product Settings to factory defaults. Model, Firmware Version, Copyright Product Information View the product information. for the latest firmware update.

  • Page 22: Initial Settings

    Digital Photo Frame on again, for maximum safety. Do not remove the USB memory during the update operation. Turn on your Digital Photo Frame and select a language. You can change the language via Settings -> Language. www.samsung.com for the latest firmware update. (Windows XP only)
  • Page 23 Do not press any key during the update operation. Do not insert any other card during the update operation. Do not turn your Digital Photo Frame off during the update operation. You can identify whether the update operation has finished successfully or not by checking the firmware version of your Digital Photo Frame is changed to the version of the firmware update.

  • Page 25: Specifications

    Specifications Items Model Name Type Panel Resolution Interface Supported Formats Built-in Memory Audio Media (Memory Card) Rating Power Consumption Photo File Content Files Music File Movie File Specifications Supported Files Specifications SPF-83M 8 "(20 cm)TFT 800 x 600 Digital 6 bit Support for MPEG1, 4, and WMV9 scaled up to 1024x768 MPEG4 SP, ASP/L3,L5 (720x480, 2Mbps, 30fps) WMV9 SP, MP/medium level (720x480, 2Mbps, 30fps)
  • Page 26 Dimensions (WxHxD) General Weight The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement. Class B Equipment (Information Communication equipment for residential use) This product complies with the Electromagnetic Compatibility Directives for residential Use and can be used in all areas including common residential areas.

  • Page 27: Troubleshooting

    Possible Causes and Suggested Actions Check the power connection between the product and the power adapter. Check whether the Samsung logo is displayed in full screen mode when pressing the power button. Check the memory card type. If this is not inserted correctly or is not of a supported type, the photo may not display on the screen.
  • Page 28 sound for MPEG4 and WMV9 movies. The movie freezes at some points. A menu is not displayed immediately when I press the menu button. File or folder names are not displayed correctly. Terminology Terms MPEG4 (Motion Picture Expert Group4) WMV9 (Window Media Video9) (MPEG Audio Layer-3) JPEG...
  • Page 29 If you need a product service, contact or visit a Samsung For services for network connection and the Server. Services Samsung Electronics web site If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (7267864)
  • Page 30 BELGIUM 02 201 2418 CZECH REPUBLIC 800-726-786 (800 - SAMSUNG) DENMARK 70 70 19 70 EIRE 0818 717 100 FINLAND 030-6227 515 3260 SAMSUNG (€ 0,15/Min) FRANCE 08 25 08 65 65 (€ 0,15/Min) 01805 -SAMSUNG(726-7864) GERMANY (€ 0,14/Min) HUNGARY...
  • Page 31 HONG KONG : 3698-4698 3030 8282 INDIA 1800 110011 1-800-3000-8282 INDONESIA 0800-112-8888 JAPAN 0120-327-527 MALAYSIA 1800-88-9999 NEW ZEALAND 0800 SAMSUNG (0800 726 786) PHILIPPINES 1800-10-SAMSUNG(726-7864) SINGAPORE 1800-SAMSUNG(726-7864) 1800-29-3232 THAILAND 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860-SAMSUNG(726-7864)
