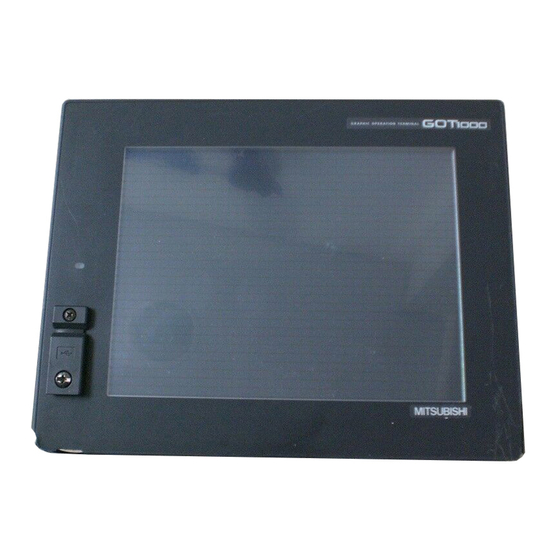

Mitsubishi Electric GOT1000 Series Quick Start Manual

Graphic operation terminal
Hide thumbs Also See for GOT1000 Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
UPGRADE NEWS
Mitsubishi Graphic Operation Terminal
The best solutions for your industry needs.
An innovative and highly perfected platform -- the GOT1000 Series.
Mitsubishi Electric Corporation Nagoya Works is a factory certified for ISO14001 (standards for environmental
management systems) and ISO9001 (standards for quality assurance management systems)
FA LAND
EC97J1113

Advertisement

loading
Need help?

Need help?

Do you have a question about the GOT1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mitsubishi Electric GOT1000 Series

Summary of Contents for Mitsubishi Electric GOT1000 Series

  • Page 1 UPGRADE NEWS Mitsubishi Graphic Operation Terminal The best solutions for your industry needs. An innovative and highly perfected platform -- the GOT1000 Series. Mitsubishi Electric Corporation Nagoya Works is a factory certified for ISO14001 (standards for environmental management systems) and ISO9001 (standards for quality assurance management systems) FA LAND EC97J1113...

  • Page 2: New Functions

    New functions Various new functions for flexible use. Save screen data and logging data  that should remain in the GOT Standard CF card interface unit Additional CF card unit on the GOT main unit. A drive （GT15-CFCD） Increased functionality of the expansion drive. GOT1000  GRAPHIC OPERATION TERMINAL CF card unit ● The standard CF card interface unit (A drive) and optional CF card interface unit (B drive) can be  Optional used for separate purposes. By addings a new optional interface operation safety is ensured by  Ｂ drive avoiding removal of necessary data which should always be stored in the GOT. Product name Model name Save CSV and other data  that  can  be  removed  CF card interface unit GT15-CFCD during operation Expanded connectable FA equipment. Now it's easier to connect than ever. GOT1000  GRAPHIC OPERATION TERMINAL Enhanced connectivity Other brand PLCs 【GT15/GT11】 ● Expanded manufacturers and models of PLCs. ・Fuji Electric FA Components & Systems:  MICREX-F series (F55/70/120S/140S/15□S) ・Hitachi: ...
  • Page 3 Supported software package: GT Designer2 Version 2.43V or later Latest developments and  functions of GOT1000 Easy-to-create language switching screen: GOT1000  Comment groups for switch and lamp label GRAPHIC OPERATION TERMINAL Crystal clear display, easy-to-create screens ● Comment groups can be used to display label names on touch switches and lamps.   <Supported objects> Touch switch, lamp More flexibility in creating screens: Stroke font Display in  Japanese ● A smooth curve remains after enlarging/reducing size of characters. Font size can  be adjusted freely in 1 dot increments to display clear and elegant characters. Touch  switches  and  lamps  Display in  Standard font Stroke font now  support  comment  English groups, which are very useful  for language switching. Display in  Chinese No need to adjust character string length: Easy check and analysis of resource data: CSV/Unicode text file conversion Automatic length adjustment of comment group labels ● Binary  files  of  resource  data  can  be  converted  into  CSV  or  ●...
  • Page 4 Solutions to improve productivity and reduce downtime New functions in the GOT1000 can greatly reduce downtime! Quick and easy diagnosis of unexpected problems encountered in operation. GOT Ladder Monitor Function is greatly improved with One-Touch Ladder Jump Function GOT1000  GRAPHIC OPERATION TERMINAL One-Touch Ladder Jump Function (Q, QnA series) <NEW> New Touch Switch Object is now available to display the ladder monitor screen of a set PLC program name and coil number By  using this switch, users can jump to the Ladder Monitor Screen and display the ladder block of the preset coil. Display the ladder block of the  coil set to the touch switch One touch to jump to Ladder Monitor Screen *Ladder  Monitor  Function  is  supported  by  GT15  series  XGA/SVGA/VGA  models.  Not only can the function be used in bus and CPU direct connection but also in  Ethernet and MELSECNET/H connection. For more details on the Ladder Monitor  touch Function, refer to the GOT1000 Series Extended/Option Functions Manual. One-Touch Ladder Jump Function features How to use One-Touch Ladder Jump Function ● For  the  touch  switch  object,  users  can  ● Select [SP Function]-[Ladder Monitor] from the touch switch property dialog. set ...
  • Page 5 Supported software package: GT Designer2 Version 2.43V or later Restore the system as soon as possible Operation guard Operation halts due to unknown reasons at an unknown location. Using  the  One-Touch  Ladder  Jump  Function  in  combination  with  Why's it operation flow diagrams helps you quickly search the problems cause. Just touch here to stopped ? search the cause. 【Benefit】 During automatic operation, the process may stop without any warning alarms  (e.g.  sensor  positioning  error).  when  this  occurs,  just  touch  the  operation  flow  diagram  which  will  show  you  the  root  cause  of  the  problem.  Since  there  is  no  need ...
  • Page 6 Mitsubishi Graphic Operation Terminal Precautions for Choosing Products This catalog explains the typical features and functions of the GOTs and does not provide restrictions and other information on usage and module combinations. When choosing the products, always check the detailed specifications, restrictions, etc. of the products in the user's manuals.
