B.E.G. LUXOMAT PD4-M-3C-TRIO Series Installation And Operating Instruction

LUXOMAT
Installation and Operating Instruction for B.E.G. -Occupancy detectors PD4-M-3C-TRIO-SM/-FC
1. Mounting preparations
Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled elec-
trical personnel in accordance with
electrotechnical regulations.
Disconnect supply before installing!
The device is not suited for safe
disconnection of the mains supply.
When in Master/Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.
4. Putting into operation of
the remote control IR-PD4-
TRIO SWI (optional)
Check Battery:
Open battery com-
partment by pressing
the plastic springs to-
gether and removing
the battery-holder.
Caution: Settings with remote control su-
persede the settings by potentiometers.
5. Light measuring
In order to calculate a switching
threshold, there is a five-minute light
measurement. For his the detector
switches off all channels and turns
them on for five minutes afterward.
This measurement is made if:
• a new brightness value is changed
with the potentiometer
• a new nominal value is set by use of
the remote control (finish setting up
with CLOSE switch)
The measurement is not done during
the activated test function.
Unlocking the device interrupts the
light measuring.
8. Option:
Part nr.: 92102
Wall bracket for remote
control IR-PD4-TRIO SWI
®
2a. Installation of the LUXOMAT
PD4-M-3C-TRIO-SM
close
C
open
The detector must be in stalled on a solid and
level surface. The circular cover ring must be
removed prior to assembly. To do this, twist the
lens (C) anticlockwise by approximately 5° and
lift off.
Having connected up the wires in accordance with
regulations, secure the detector with 2 screws.
After installation replace the lens and lock (turn
clockwise). Mains to be connected.
6. Putting into operation / Settings
Self test cycle
After an initial 60-second self-test cycle (initialization), the LUXOMAT
PD4-M-3C-TRIO is ready for operation.
Follow-up time for light control 3 (see point 7)
45
60
30
The time can be set infinitely variably at between 1 and 60
15
minutes. The time-setting is valid for all 3 channels of the
TEST 5
1
PD4-M-3C-TRIO.
Symbol TEST: Test mode
Every movement switches on the light for a period of 2
seconds, switching it off for a period of 2 seconds after that
regardless of the level of brightness.
Twilight-switch for light control (Channel 1) - potentiometer
1200
1 (see point 7)
600
The switch-on value for the light can be set at between 40
200
and 1200 Lux. Using the rotary control, the luminance set
40
points can be set as desired.
Symbol : Night operation
Symbol : Day/Night operation
Twilight-switch for light control (Channel 2) - potentiometer
1200
600 3 (see point 7)
Settings identically equal to channel 1
200
40
Pulse spacing PD-Slave
2 or 9 seconds can be set for the pause between 2 pulses
9s 2s
sent to the Master. The setting can be made with activated
( ) or deactivated ( ) LED indicator.
LED ON
For devices with a separate Slave input, 2 sec. can be set.
LED OFF
9. Settings by remote control (Settings relay channel 1, 2, 3)
Unlocking device
Automatic reading of the
current light level
or
CH CH
or CH Choosing channel
1 2 3
Twilight threshold for the selected
to
100 1000
channel 100 - 1000 Lux
Increase the current light level by
+
20 resp. 50 Lux => (see point 11)
��
5 to
���
Reset when
open: Deletes
all values
set with the
or
remote control; HA
the settings on
the potentiom-
eter apply
t < 5 sec.
PD4-M-3C-TRIO

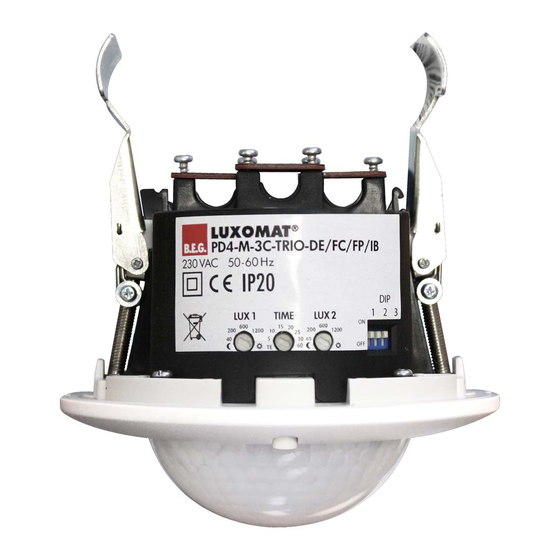

® 2b. Installation of the LUXOMAT
PD4-M-3C-TRIO-FC
100 mm
®
Follow-up time light for the
��
90
��� selected channel
LED display ON/OFF
max
Semi / fully automatic mode
VA ON
OFF
Locking device – Exit
programming mode
LED flashes
Permanent protection against
sabotage
® 3. Hardware configuration
Position of light sensors and LEDs
4 5 1 A
A circular opening
of diameter 100 mm
must be produced in
the ceiling.
Having connected
up the cables in
accor dance with
regulations, the
detector is inserted
B
into the opening as
A Light sensor 1 / B light sensor 2
shown and fixed
1 LED red OFF function
into position with
2 LED green too light/too dark CDS 1
the retaining bracket
3 LED white semi-automatic switching channel 1
using screws.
4 LED white semi-automatic switching channel 2
5 LED green too light/too dark CDS 2
6 LED red motion indicator/walking test
7. Position of potentiometer and DIP switch
C BA Surface mounted
1
3
2
A DIP 1 HA / A
B DIP 2 Ini OFF/ON
Lamps during the
initialization OFF/ON
C DIP 3 RESET
10. Explanation of the key functions
Lock device
5 sec. after locking, device can be locked twice
(protection against sabotage)
Test function
Activation of the test function, Reset for deactivation
Resetting when locked
Reset – determine of all timers, switching off the channels
Permanent protection against sabotage
This function blocks the PD4-M-3C-TRIO permanently
(all LED's are flashing).
t < 5 sec.
Proceed to exit this mode: reset the hardware using DIP
switch 3.
CH1/2
Channel ON/OFF
ON/OFF
CH3
ON/OFF
50 1500
Lux
Lux
11. Luminance set point
Each time the push button is pressed, the device increases the
current switch-on value in increments of 20 Lux for a current
switch-on value of <100 Lux and in increments of 50 Lux for a
current switch-on value of > 100 Lux.
GB
80 - 90 mm
3 2 6
6
5
4
A B
3
2
1
DIP
321 1 2 3
False ceiling mounted
+
