Aruba 228 Series Installation Manual

Aruba 228 Series Wireless Access Points
Installation Guide

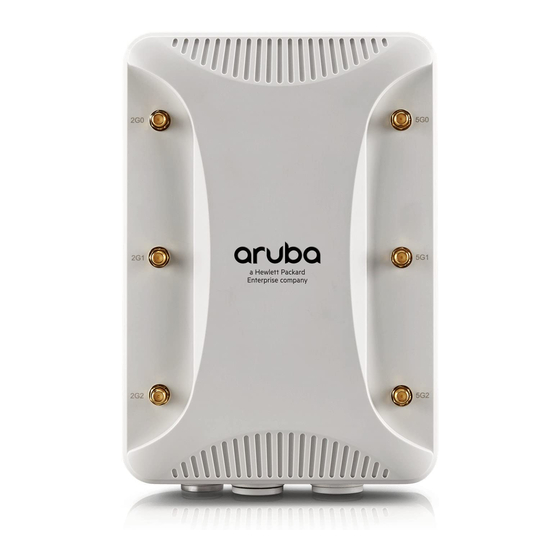

The Aruba AP-228 is a fully temperature hardened, water resistant, indoor rated, dual-radio IEEE
802.11ac wireless access point. This access point use MIMO (Multiple-in, Multiple-out) technology and
other high-throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz
functionality while simultaneously supporting existing 802.11a/b/g/n wireless services. The AP-228
access point works in conjunction with an Aruba controller, while the IAP-228 access point can be
configured using a built-in virtual controller.
Operations
Wireless transceiver

Wireless access point (IEEE 802.11 a/b/g/n/ac)

Wireless air monitor (IEEE 802.11 a/b/g/n/ac)

Protocol-independent networking functionality

Compatibility with IEEE 802.3at PoE

Package Contents
228 SeriesAccess Point

Cable Glands x2

USB Console Cable

Copper Lug x1

M4 x 8 Screw x1

Startup Guide

The weatherproof caps for Ethernet and Console interfaces are connected to the AP, not loose in the package.
Mounting kits for use with the 228 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Rev04 |
August 2018 1
