Part 16 - Replacement Parts

17
16
24
24
3
4
25
ITEM# PART#
7550P-215 COMBUSTION BLOWER w/GASKET, SCREWS (400)
1 7550P-209 COMBUSTION BLOWER w/GASKET, SCREWS (500)
7550P-210 COMBUSTION BLOWER w/GASKET, SCREWS (650-1000)
7250P-478 SCREWS (400/500)- COMBUSTION BLOWER
2
7550P-268 SCREWS (650-1000) - COMBUSTION BLOWER
7550P-313 GAS VALVE w/CABLE (400, 500)
3 7550P-211 GAS VALVE (650)
6300P-009 GAS VALVE (800/1000)
7350P-079 GAS SHUT-OFF VALVE (400/500)
4
7350P-099 GAS SHUT-OFF VALVE (650/800/1000)
8600P-044 GASKET - VALVE TO AIR MIXER (400,500)
5
6300P-072 GASKET - FLANGE TO VENTURI (650-1000)
6 7350P-089 LOW WATER CUT-OFF PROBE
7 7700P-073 DUAL TEMPERATURE SENSOR - HIGH LIMIT
8 SEE TABLE INTEGRATED BOILER CONTROL
9 7550P-054 LOW VOLTAGE BOARD
10 6300P-037 FUSES - 2 AMP
11 7550P-337 HIGH VOLTAGE CUSTOMER CONNECTION BOARD
12 7550P-285 FUSES - 15A
13 7350P-230 CAT5 PLUG
14 7550P-221 PRESSURE SWITCH
7550P-220 INTAKE PRESSURE SWITCH (400, 500)
15
7700P-038 INTAKE PRESSURE SWITCH (650-1000)
16 7550P-050 DISPLAY - 7"
* INDICATES FINISHED GOOD REVISION
LP-701-H
03/27/20

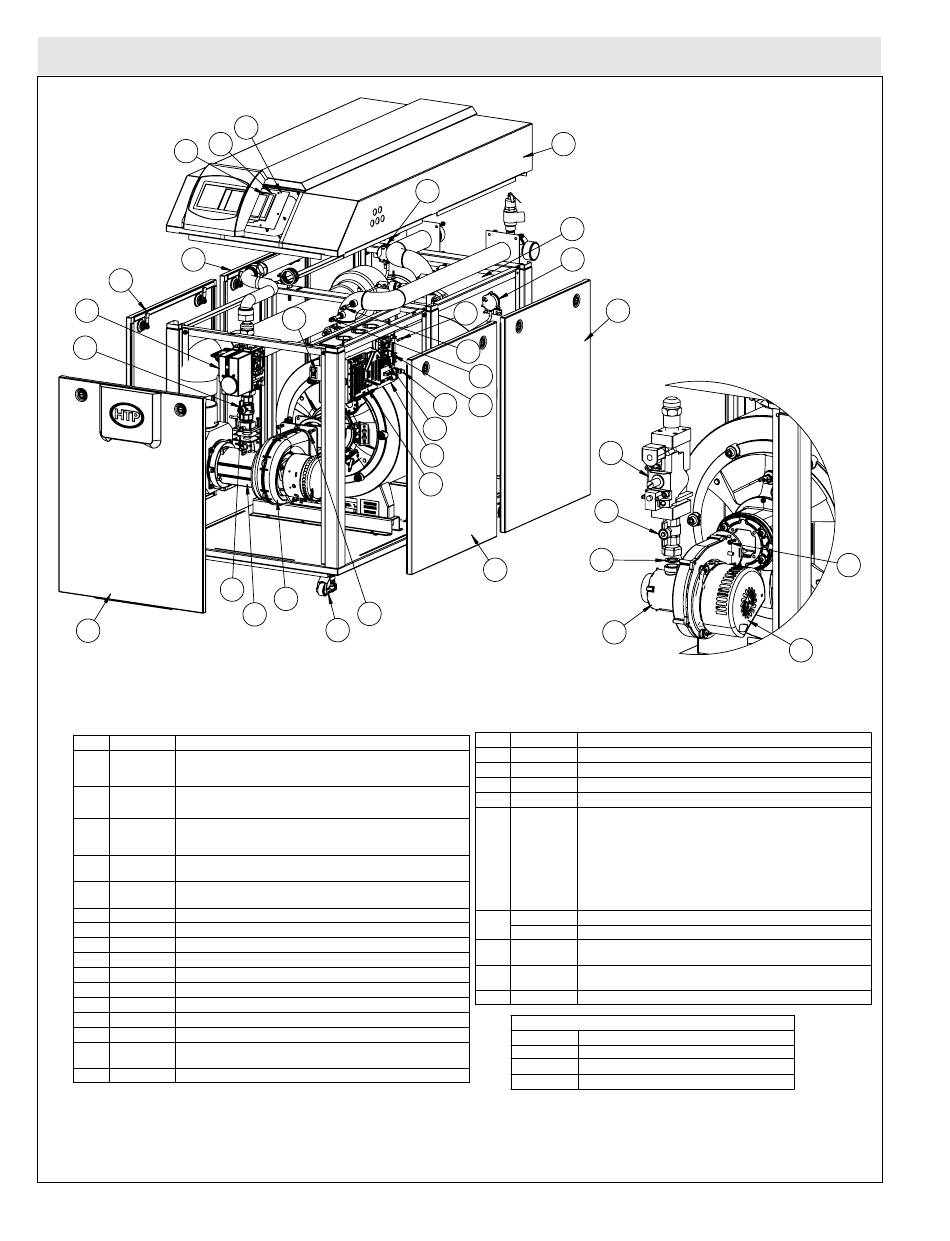

Figure 63 - 400 - 1000 Model Replacement Parts
lp-701 Rev. 000 Rel. 003 Date 6.29.20
18
19
5
1
21 2
20
DESCRIPTION
23
15
22
14
12
6
7
13 10
11
9
8
5
24
ITEM# PART#
17 7550P-447 GASKET - DISPLAY - 7"
18 7550P-060 TOUCH SCREEN BRACKET
19 7500P-087 POWER SWITCH
20 7550P-219 SWIVEL CASTERS
7550P-200 AIR/GAS MIXER - 400 NG
7550P-201 AIR/GAS MIXER - 400 LP
7550P-202 AIR/GAS MIXER - 500 NG
7550P-203 AIR/GAS MIXER - 500 LP
21 7550P-204 AIR/GAS MIXER - 650 NG
7550P-205 AIR/GAS MIXER - 650 LP
7550P-206 AIR/GAS MIXER - 800, 1000 NG
7550P-207 AIR/GAS MIXER - 800 LP
7550P-208 AIR/GAS MIXER - 1000 LP
* 7550P-327 BACK PANEL (400 - 1000)
22
* 7550P-127 BACK PANEL (400 - 1000)
7550P-993 TOP PANEL (includes Mohawk)(400, 500)
23
7550P-991 TOP PANEL (includes Mohawk)(650, 800, 1000)
7550P-994 SIDE PANEL (400, 500)
24
7550P-990 SIDE PANEL (650, 800, 1000)
25 7550P-992 FRONT PANEL (400 - 1000)
OTHER ITEMS NOT SHOWN
PART #
7550P-287 LEAD - SPARK
7550P-216 EXTERNAL SPARK TRANSFORMER
7550P-214 DISPLAY CABLE
24
3
4
21
ELX-400, 500 ONLY
DESCRIPTION
REV 000
REV 001 +
DESCRIPTION
2
1
