Whirlpool EV209NBTQ00 Parts Manual

Vertical freezer
Hide thumbs Also See for EV209NBTQ00:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

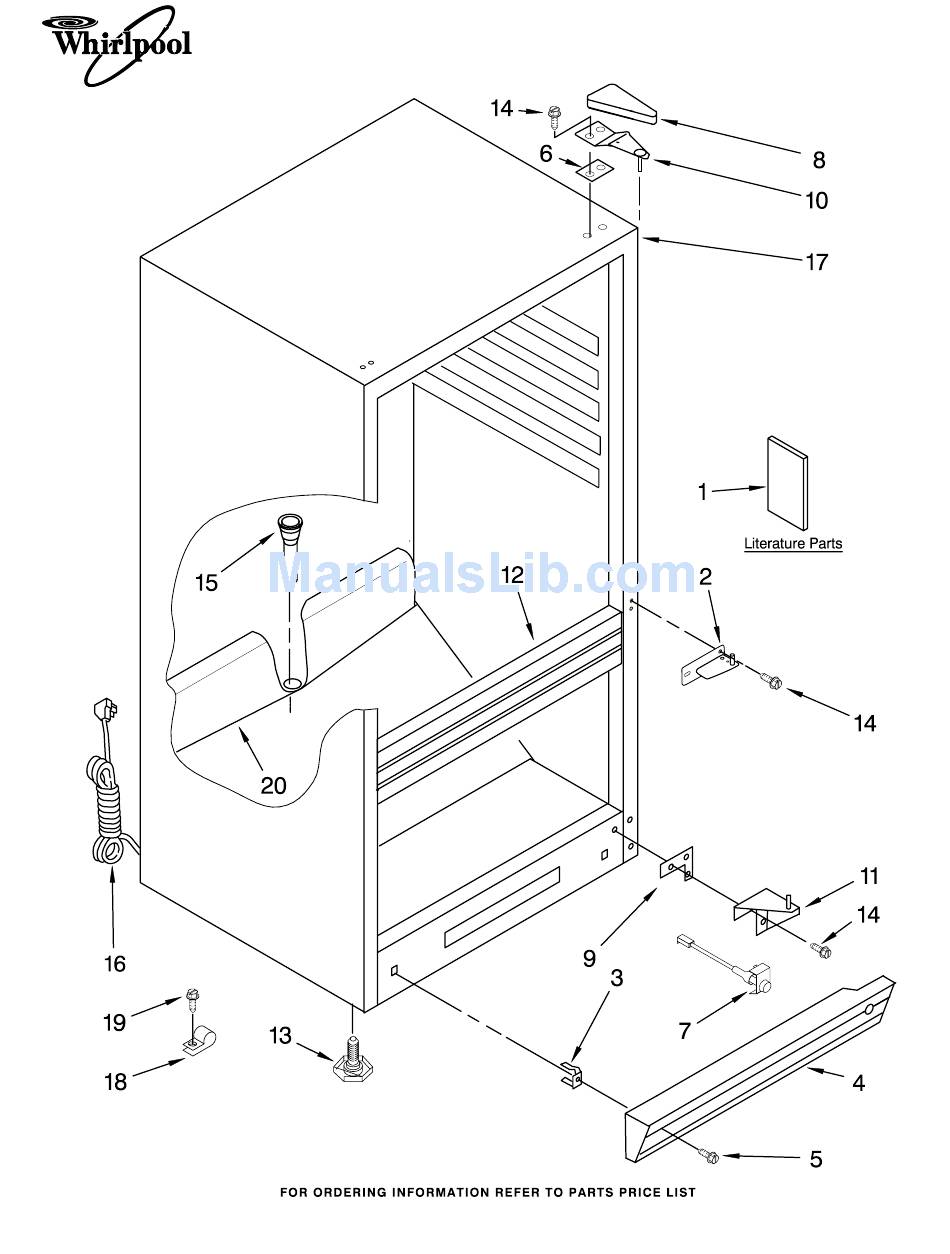

CABINET PARTS
VERTICAL FREEZER
For Model: EV209NBTQ00
(White)
1
5−08 Litho in U.S.A. (wam)(bay)
Part No. W10207390 Rev.A

Advertisement

loading

Related Manuals for Whirlpool EV209NBTQ00

Summary of Contents for Whirlpool EV209NBTQ00

  • Page 1 CABINET PARTS VERTICAL FREEZER For Model: EV209NBTQ00 (White) 5−08 Litho in U.S.A. (wam)(bay) Part No. W10207390 Rev.A...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: EV209NBTQ00 (White) Illus. Part DESCRIPTION Literature Parts W10164586 Owners Manual W10164585 Energy Label/Tag W10183363 Instructions, Field Installable Ice Maker 2 W10164537 Hinge, Center 4356803 Clip, Grille 8210310 Grille 4390511 Screw 4390489 Shim, Top 4390905 Power Light...
  • Page 3 LINER PARTS For Model: EV209NBTQ00 (White) W10207390...
  • Page 4 LINER PARTS For Model: EV209NBTQ00 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 8210348 Knob, Control 3 W10164510 Harness, Wire (Control Box) 8210344 Thermostat 4390511 Screw 8210246 Tubing, Thermostat 7 W10164543 Basket, Large 8 W10164512 Alarm, Door Ajar 9 W10164530 Switch, Alarm...

  • Page 5: Unit Parts

    UNIT PARTS For Model: EV209NBTQ00 (White) W10207390...
  • Page 6 UNIT PARTS For Model: EV209NBTQ00 (White) Illus. Part DESCRIPTION 1 W10164539 Cover, Evaporator 4357244 Evaporator 4390914 Motor, Fan 4390912 Blade, Fan 5 W10164625 Heater, Defrost 6 W10164624 Shield, Heater 7 W10164623 Pan, Drain Gasket, Cover Evaporator 4390663 Right 4390664 Left 8210253 Bi−Metal Defrost...

  • Page 7: Door Parts

    1 W10164616 Door Assembly (Includes Interior Door Liner) 2 W10207408 Bushing, Hinge 3 W10164620 Rail, Door (Wire) W10207390 DOOR PARTS For Model: EV209NBTQ00 (White) Illus. Part DESCRIPTION 8210404 Rail, Door (1) 5 W10164618 Gasket, Lower Door 6 W10164617 Gasket, Door (Upper) 7 W10164614 Door Assy.
  • Page 8 OPTIONAL PARTS (NOT INCLUDED) For Model: EV209NBTQ00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350930 Enamel, White (13 Oz. Spray Can) 72017 Brush Touch−Up Kit (White) Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
