Toro 1800 Power Curve Operator's Manual
Hide thumbs
Also See for 1800 Power Curve:
- Operator's manual (13 pages) ,
- Set-up/assembly (8 pages) ,
- Parts catalog (8 pages)
Related Manuals for Toro 1800 Power Curve
Summary of Contents for Toro 1800 Power Curve

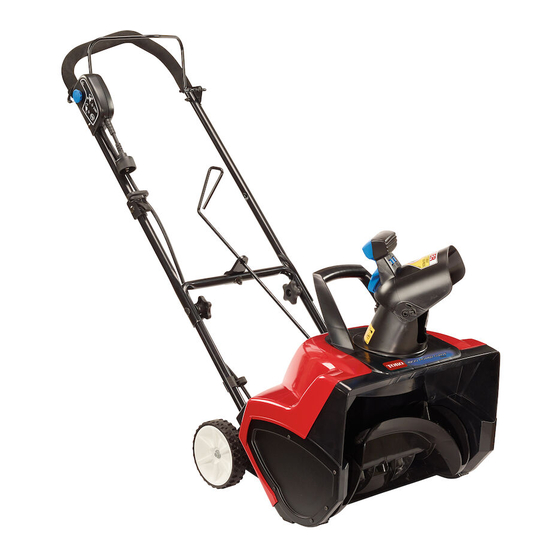

- Page 1 Form No. 3323-940 1800 Power Curve Snowthrower Model No. 38025—200000001 and Up Operator’s Manual Domestic English (EN)
-
Page 2: Table Of Contents
DANGER, WARNING, and CAUTION are words used to identify the level of hazard. Thank you for choosing a Toro product. We want you to be completely satisfied with your new purchase. DANGER signals an extreme hazard that will cause... -
Page 3: Safe Operating Practices
is ever started. Pay particular attention to the safety does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct alert symbol which means CAUTION, polarized extension cord. A polarized extension cord WARNING OR DANGER —... - Page 4 Operation of the snowthrower in the hand-held replacement parts and accessories to keep your Toro position (wheels off the ground) is unsafe except when all Toro. Never use “will fit” replacement parts and used in accordance with special instructions in the accessories.
-
Page 5: Safety And Instruction Decals
Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. On Handle On Rear of Shroud On Rear of Shroud (Part No. -
Page 6: Installing The Discharge Chute
2. Carefully insert the right side of the upper tubing over the end of the lower right side tubing (Fig. 2). 3. Carefully insert the left side of the upper tubing into the end of the lower left side tubing (Fig. 2). 4. -
Page 7: Before Starting
2. Insert a rubber washer between the deflector and the Extension Cord Chart discharge chute while maintaining the hole alignment (Fig. 5). If length of extension cord is 100 ft. 150 ft. less than or equal to: 3. Secure the deflector to the discharge chute with two 5/16–18 carriage bolts, metal washers, and locknuts. -
Page 8: Operation
POTENTIAL HAZARD The electrical cord can get damaged. WHAT CAN HAPPEN A damaged electrical cord can cause a shock or fire. HOW TO AVOID THE HAZARD Thoroughly inspect electrical cord before using the snowthrower. If the cord is damaged, do not 1535 operate the snowthrower. - Page 9 The deflector handle on top of the discharge chute controls the height of the snow stream (Fig. 10). Adjust the height of the snow stream by raising or lowering the chute deflector. 1516 1516 Figure 11 Figure 10 1. Primary handle 2.
-
Page 10: Maintenance
After clearing the snow, let the motor run for a few minutes so the ice doesn’t freeze any moving parts. Shut off the motor, wait for all moving parts to stop, and wipe the ice and snow off the snowthrower. Rotate the chute crank several times to remove the snow from the snowthrower. -
Page 11: Replacing The Large Belt
5. If necessary, insert a new washer into the right side of the new rotor. 6. Align the left side of the new rotor with the coupler. The three bosses on the rotor end must align with the slots on the coupler (Fig. 17). 1538 Figure 14 1. -
Page 12: Replacing The Small Belt
1529 1526 Figure 21 Figure 18 1. Idler spring 2. Idler arm 5. Assemble the idler spring, making sure the idler pulley rides on the belt. 3. Rotate the rotor with your left hand while sliding the 6. Install the left side cover and the skid with the three belt off the large pulley with your right hand (Fig. -
Page 13: Storage
Refer to the “Yellow Pages” of your local telephone directory in the section titled “Lawn Mowers.” Toro Master Service Dealers are listed under the Toro trademark. If you need help locating a Toro Master Service Dealer near you, call... - Page 16 Rev. 3/22/99...
