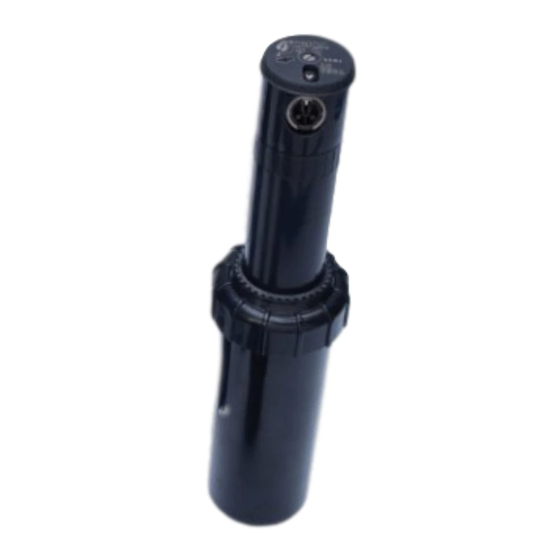

Toro TR50 Instruction Manual
Series rotor
Hide thumbs
1
2
page
of
2
Go
/
2
Bookmarks
Advertisement
Quick Links
Download this manual
TR50
Instruction Guide
The watering area can be adjusted between 30° and 360°.
When set to 360°, the nozzle does not reverse direction.
The watering area is between the cap arrow and the
adjustment ring arrow. This example is set to 180°.
Watering Arc Adjustment
Align the cap arrow with the left side
of the watering area. This is the non-
adjustable side of the watering arc.
Series
Rotor
Turn the arc adjustment ring to align
the white arrow to the right side of
the watering arc.
Turn the adjustment ring 90° to the
left to decrease the arc.
Previous
Page
Next
Page
1
2
