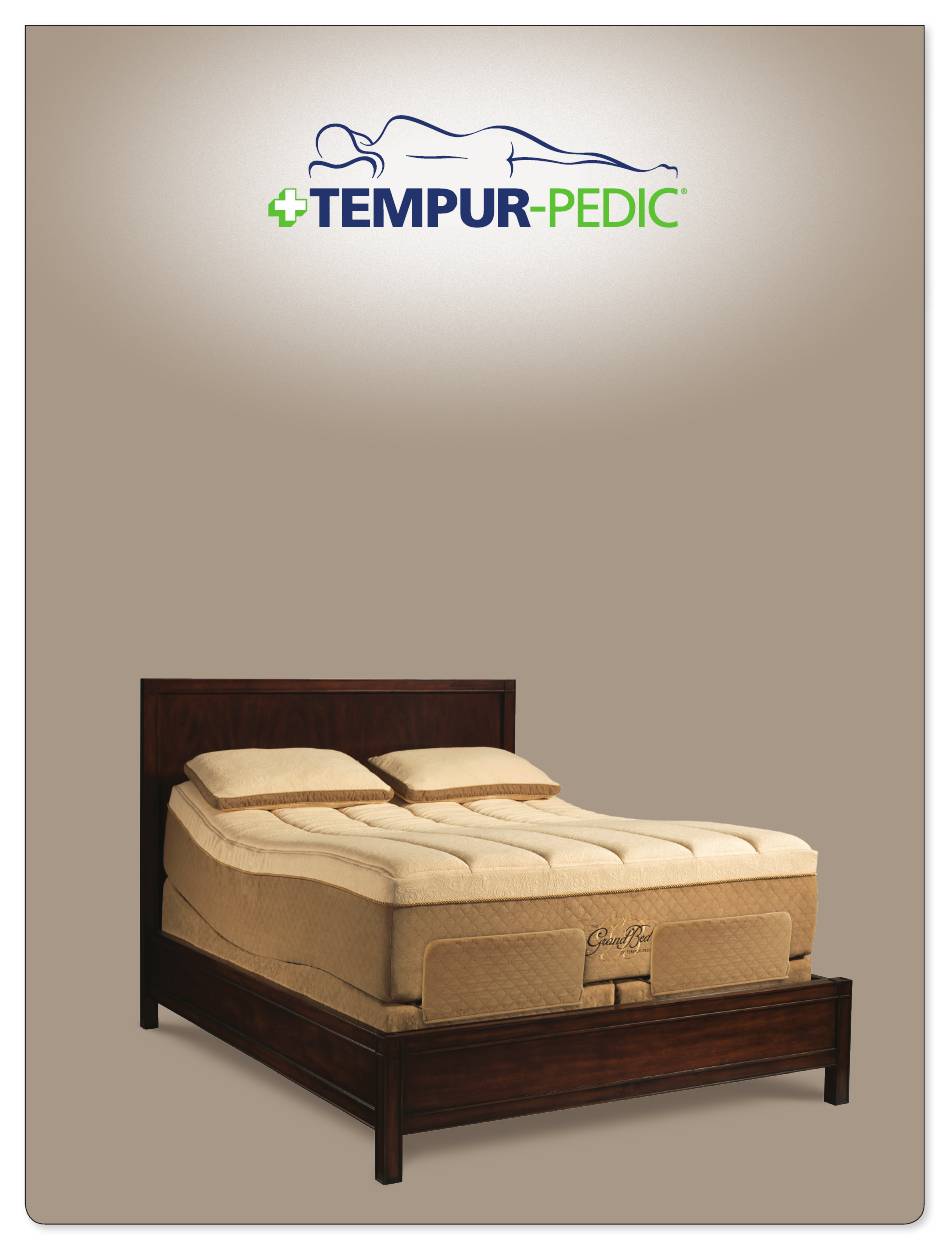

- Page 1 GrandBed TEMPUR Advanced Ergo System ® ™ COMPLETE REFERENCE GUIDE U.S. Patent No. 7,321,811 and other patents pending © 2011 Tempur-Pedic Management, Inc. All Rights Reserved. TPNA-CRG-GBTAES-0111...
- Page 2 The decision to repair or to replace defective parts under this warranty shall be made, or case to be made, by Tempur-Pedic at its option and in its sole discretion.
-
Page 3: Table Of Contents
GrandBed TEMPUR Advanced Ergo System ® ™ Table of Contents SAFETY PRECAUTIONS ....................4 COMMONLY ASKED QUESTIONS AND ANSWERS ............ 8 SPECIFICATIONS......................9 INSTALLATION ......................10 OPERATION WIRELESS REMOTE CONTROL PROGRAMMING ..........15 WIRELESS REMOTE CONTROL FEATURES ............16 OPERATING INSTRUCTIONS ................17 TROUBLESHOOTING .................... -
Page 4: Safety Precautions
GrandBed TEMPUR Advanced Ergo System ® ™ SAFETY PRECAUTIONS • Keep the cord away from heated surfaces. WARNING! • Never operate the furnishing with the air openings blocked. IMPORTANT SAFETY Keep the air openings free of lint, hair and the like. •... - Page 5 Safety Precautions GROUNDING SAFETY WARRANTY PRECAUTION! This product is for use on a nominal 120-volt circuit, and Do not open control box, motors or wireless remote has a grounding plug that looks like the plug illustrated control (with the exception of the battery compartments). The warranty is void if these units are tampered with.
- Page 6 GrandBed TEMPUR Advanced Ergo System ® ™ IMPORTANT SAFETY FEATURES The input transformer voltage is AC120V (1 Amp) 60HZ, Use this furnishing only for its intended use as described and the output voltage is DC24V (3 Amp). When there is in these instructions.
- Page 7 Safety Precautions RADIO FREQUENCY IS 433.92 MHZ. INTENDED USAGE The electric adjustable bed should be installed with FCC COMPLIANCE the head board bracket and/or the head of the This device complies with part 15 of the FCC frame should be positioned close to a wall. Rules.
-
Page 8: Commonly Asked Questions And Answers
With standard legs and casters installed, the overall ® ™ Please see the chart below for Tempur-Pedic’s height is approximately 15 1/8” floor to the bottom recommended and approved “total people weight” limits of the mattress. The distance between the floor and per the available mattress and Ergo Base combinations. -
Page 9: Specifications
Q&A / Specifications Bed Type A. Frame B. Base C. Base Weight width Width Length Specifications Twin Long 33 1/2” 37 1/2” 79” 172 lbs. Split Queen 26 1/4” 29 1/2” 79” 136 lbs. Split CA King 33 1/2” 35 3/4” 82 3/4”... -
Page 10: Installation
GrandBed TEMPUR Advanced Ergo System ® ™ Installation Instructions Before discarding any packing materials, check your GrandBed TEMPUR Advanced ® ® *Attached Ergo System ™ carton and verify the following to base for items in the parts list are included: shipping PARTS LIST A. - Page 11 NOTE: If the base does not perform properly, immediately call Tempur-Pedic Customer Service at 800-979-1457. Be prepared to provide the service agent with the serial number of the base, the retailer’s name, and facts about the situation.
- Page 12 GrandBed TEMPUR Advanced Ergo System ® ™ Delivery Procedure STEP 12 Install headboard brackets if they are being used and COMPLETING HOME DELIVERY: adjust to allow a minimum of two inches clearance to permit unobstructed movement. STEP 7 Carefully take base in the carton to the bedroom and place next to where the customer wants it set up.
- Page 13 Installation HEADBOARD INSTALLATION NOTE: This step is only needed if using a headboard Place the Bracket Bolt (H) with a 5/16 inch washer (J) ONLY. Not headboard, footboard and side rails. through the predrilled hole in the C-channel frame and pass it through the Inner Headboard Bracket. NOTE: Failure to follow the proper headboard bracket installation instructions may result in damage to your Ergo System.
- Page 14 Place your headboard bolts through the mounting holes on both the Outer Headboard Bracket and your headboard. Firmly tighten. STEP 3 Place your Tempur-Pedic mattress on top of your Ergo Repeat on the other side. System Base. STEP 1D Ensure the Headboard Bracket is assembled with a distance of 1.5 (38.1 mm) to 2 inches (50.8 mm)
-
Page 15: Operation
Operation Wireless Remote Control Programming ONE WIRELESS REMOTE CONTROL AND TWO ERGO BASES NOTE: The use of “Base A” and “Base B” is for STEP 5 description purposes only and the beds will not Lightly press the learn button in Base B for three (3) actually be labeled “Base A”... -
Page 16: Wireless Remote Control Features
GrandBed TEMPUR Advanced Ergo System ® ™ Wireless Remote Control Features READ ADVISORY INFORMATION IN THE SAFETY PRECAUTIONS SECTION OF THIS GUIDE CAREFULLY BEFORE USING THIS PRODUCT. THE POTENTIAL FOR ELECTRIC SHOCK EXISTS IF ELECTRICAL COMPONENTS ARE NOT INSTALLED OR OPERATED PROPERLY. LED SIGNATURE LIGHT A. -
Page 17: Operating Instructions
Operation Operating Instructions HEAD AND FOOT ADJUSTMENTS (A, B) Light illuminates and the Massage feature stops. The • Adjusts the Head and Foot sections to the desired Massage feature is designed to automatically shut off after positions. Press until the red LED Signature Light 30 minutes of continuous use. -
Page 18: Troubleshooting
GrandBed TEMPUR Advanced Ergo System ® ™ Troubleshooting In the event that your GrandBed TEMPUR ® Advanced Ergo System ™ fails to operate properly, investigate the symptoms and possible solutions provided in the chart below: SYMPTOM SOLUTION • Verify that the power cord is plugged into a working, Wireless remote control LED Signature Light illuminates grounded electrical outlet. - Page 19 Troubleshooting SYMPTOM SOLUTION • Check batteries in Wireless Remote Control, replace with four (4) new AAA batteries if necessary. • Make sure that you are following the duty cycle of the motors (do not operate more than two (2) minutes over an eighteen (18) minute period, or approximately 10% duty cycle).
- Page 20 NOTE: Lowering using this method is much slower than the standard process. FOR TECHNICAL SUPPORT OR SERVICE, PLEASE CHOOSE FROM THE FOLLOWING NUMBERS: QUESTIONS ABOUT YOUR ERGO SYSTEM BASE: 1-800-979-1457 QUESTIONS ABOUT YOUR TEMPUR-PEDIC MATTRESS OR TO ORDER ERGO SYSTEM ACCESSORIES: 1-800-821-6621 OR VISIT WWW.TEMPURPEDIC.COM...
