Operating Instructions
LED TV

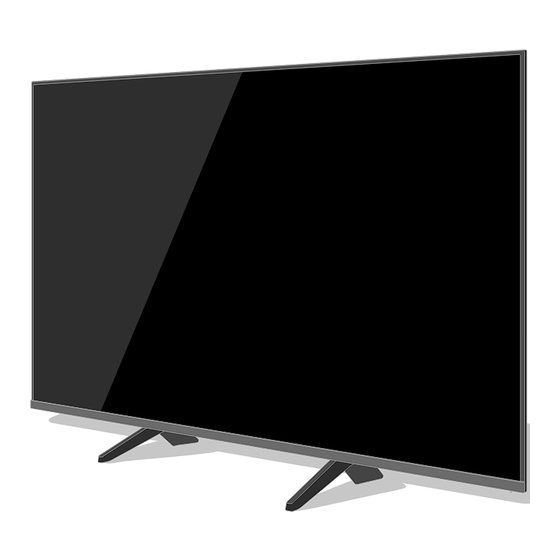

TH-40GX700H
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
●
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them
for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0519-0
(p. 18)
English
TQB4GD0266
English
Advertisement
Table of Contents
Related Manuals for Panasonic TH-40GX700H
Summary of Contents for Panasonic TH-40GX700H
- Page 1 ● How to use [eHELP] (p. 18) Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. Please carefully read the “Safety Precautions” of this manual before use.
-
Page 2: Table Of Contents
® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. x.v.Colour™ is a trademark. -
Page 3: Important Notice
See http://www.mpegla.com. our customers and the integrity of our Service as well as to protect the rights or property of Panasonic. If you wish to know more about the processing of your information Panasonic and its affiliates make no representations or... -
Page 4: Safety Precautions
Mains Plug and lead types vary depending on the ● Do not use an unapproved pedestal / mounting model and countries. equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved ● This TV is designed to operate on AC 220-240 V, wall-hanging brackets. - Page 5 Do not use the pedestal if it becomes warped or ■ Ventilation physically damaged. If this occurs, contact your nearest Panasonic dealer immediately. Caution ● During setup, make sure that all screws are securely Allow sufficient space (at least 10 cm) around the TV in tightened.
-
Page 6: Accessories
■ Accessories Moving the TV Caution Before moving the TV, disconnect all cables. ● At least two people are required to move the TV to prevent injury that may be caused by the tipping or Standard accessories falling of TV. Remote Control ●... -
Page 7: Installing The Tv
Installing the TV Preparations ● Make sure to assemble the pedestal before taking out the TV from the carton. ● Do not dispose the cushioning material which is also Assembling / Removing the pedestal used for removing the pedestal when using the wall- hanging bracket or repacking the TV. - Page 8 Note When lifting the TV, support the TV as shown. ● Do not hold the screen part strongly as shown. ● Lift the TV with the protective sheet attached. ● Do not place the TV temporarily on the floor or desk with TV screen facing down.
-
Page 9: Installing The Wall-Hanging Bracket
Installing the wall- hanging bracket Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. ● Holes for wall-hanging bracket installation Rear of the TV a: 200 mm b: 200 mm (View from the side) Note Depth of screw ●... -
Page 10: Connections
Connections Pedestal hole cover (wall mount) Note ● Ensure every pedestal hole is covered with supplied ● External equipment and cables shown are not tape before wall mounting. supplied with this TV. Refer picture below. ● Please ensure that the unit is disconnected from the ●... - Page 11 Basic connections ■ Mains lead AC 220-240 V, 50 / 60 Hz Mains lead Insert the mains plug firmly into place. ● When disconnecting the mains lead, be absolutely sure to disconnect the mains plug from the mains socket first. AV devices ■...
- Page 12 ■ [HDMI Auto Setting] (Setup Menu) Network Reproduces the image more precisely with the A broadband network environment is required to be able expanded colour gamut when connecting the 4K to use internet services. compatible equipment. Select the mode depending on the equipment.
- Page 13 ■ Camcorder / Game equipment (VIDEO equipment) OpticalHDMI cable DIGITAL AUDIO IN e.g. Amplifier with speaker system Note (Listening) (Viewing) ● ARC function is not supported when performing mirroring on the TV set. ■ Headphones ● For information about the volume settings, refer to [eHELP] (Search by Purpose >...
- Page 14 Cable arrangement Fix the cables using the pedestal cover. Note ● Fix cables as necessary. ● When using the optional accessory, follow the option’s assembly manual to fix cables. English...
-
Page 15: Identifying Controls
Identifying Controls 8 [Option Menu] ● Easy optional setting for viewing, sound, etc. 9 Coloured buttons (red-green-yellow-blue) ● Remote Control Used for the selection, navigation and operation of various functions. 10 Volume Up / Down 11 Numeric buttons ● Changes channel. ●... - Page 16 ■ Installing / Removing batteries 4 Channel Up / Down ● Cursor Up / Down (when in the menu system) 5 Volume Up / Down Pull open ● Cursor Left / Right (when in the menu system) Hook 6 Mains power On / Off switch ●...
-
Page 17: First Time Auto Tuning
First time Auto Tick the TV signal mode to tune, and then select [Start Auto Tuning] Tuning : tune (search for the available channels) : skip tuning If you use an RF selector, switch it to the digital TV signal before starting the Auto Tuning. As soon as the When the TV is turned on for the first time, it will digital TV scan is finished, switch it to the analogue automatically search for available TV channels and give... -
Page 18: Watching
Watching TV How to Use eHELP [eHELP] is the detailed operating instructions built into Turn power on the TV, and gives a more detailed explanation for a better understanding of the operation of each feature. (TV) Display [eHELP] (Remote Control) ●... - Page 19 ● To scroll the description (if more than 1 page) While the description is highlighted ● To open the reference screen ( ● To display the menu related to the description (only for some descriptions) (red) ● To check the features of this TV Search by Purpose >...
-
Page 20: Faqs
This is not a malfunction. mains socket. About the inquiry The TV goes into Standby mode ● Please contact your local Panasonic dealer for ● Auto power standby function is activated. assistance. If you make an inquiry from a place where this TV... -
Page 21: Maintenance
Specifications ■ First, remove the mains plug from the mains socket. Model No. TH-40GX700H Display panel, Cabinet, Pedestal Dimensions (W × H × D) Regular care: Gently wipe the surface of the display panel, cabinet, 901 mm × 569 mm × 208 mm (With Pedestal) or pedestal by using a soft cloth to remove dirt or 901 mm ×... - Page 22 [eHELP] (Search by Purpose > Read first > Before 28-69 (PAL B AUST.) use > Licence). 13-57 (PAL D, K) ● TH-40GX700H complies with China Terrestrial 13-62 (NTSC M Japan) Television National Standard (GB20600-2006) 14-69 (NTSC M USA) Mode-C=3780.
