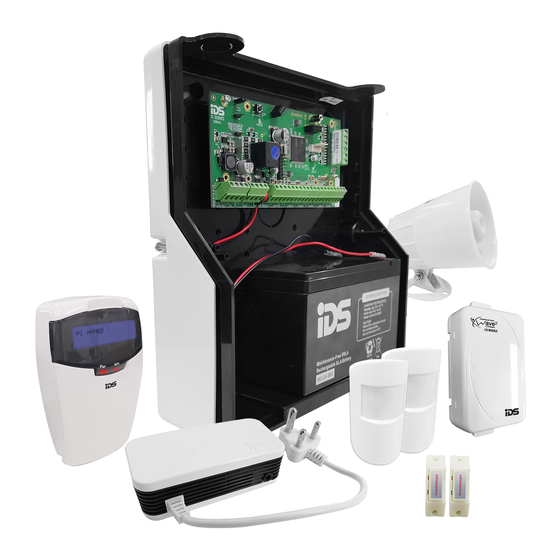

Summary of Contents for IDS X64

  • Page 2 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 3 Action Will reset all locations to the factory default values. (Master User Code 1234) and all keypad IDs will be defaulted. Will default the master user code to 1234 - or 123456 if 6 digits are being used. Master user code properties will also be defaulted.
  • Page 4 Violation of a Push to Arm zone during the exit delay will immediately arm the panel. OUTDOOR INSTANT ZONE When the panel is armed the violation of an Outdoor Instant zone will cause the panel to register an alarm condition. IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 5 MMSS = 00m00s – 59m59s LOCATION 13 Cross-zone Count (default = 3) [#] [INSTALLER CODE] [*] [1] [3] [*] [CROSS-ZONE COUNT] [*] Cross zone count = 1 – 15, with 0 to disable IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 6 ** Option 12 needs to be enabled in order for option 13 to work. LOCATION 15 AC Fail / Restore Reporting Delay (default = 0004) [#] [INSTALLER CODE] [*] [1] [5] [*] [HHMM] [*] HHMM = 00h01m – 18h00m IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 7 [#] [INSTALLER CODE] [*] [1] [8] [*] [MMSS] [*] MMSS = 00m01s – 59m59s LOCATION 20 Keypad Lockout Count (default = 4) [#] [INSTALLER CODE] [*] [2] [0] [*] [KEYPAD LOCKOUT COUNT] [*] Lockout count = 2 – 16 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 8 Month = 1 – 12, with 0 to disable LOCATION 29 Day of Week to End Daylight Saving (default = 1) [#] [INSTALLER CODE] [*] [2] [9] [*] [DAY] [*] Day = 1 – 7 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 9 Silent Knight 4 x 2 Slow 1.9kHz TX, 1.4kHz, 20PPS Contact ID Dual Tone HS, DTMF Reserved SIA Reporting 1170Hz TX, Blind 20PPS Reserved Telephone No. 1 Communications Format = 0 – 8 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 10 Number of Dial Attempts (default = 6) [#] [INSTALLER CODE] [*] [4] [7] [*] [NUMBER OF DIAL ATTEMPTS] [*] Number of dial attempts = 1 – 9, with 0 to disable IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 11 Phone number 3 = a maximum of 24-digits LOCATION 54 Telephone Number 4 [#] [INSTALLER CODE] [*] [5] [4] [*] [TELEPHONE NUMBER 1] [*] Phone number 4 = a maximum of 24-digits IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 12 No Movement Auto Arm Start (default = 0000) [#] [INSTALLER CODE] [*] [1] [7] [2] [*] [PARTITION NUMBER] [*] [HHMM] [*] Partition number = 1 – 8 HHMM = 00h00m – 23h59m, IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 13 ARM Days of the Week DISARM Days of the Week Monday Monday Tuesday Tuesday Wednesday Wednesday Thursday Thursday Friday Friday Saturday Saturday Sunday Sunday All OFF (Arm Day Disabled) All OFF (Disarm Day Disabled) IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 14 LED Indicator READY ARMED AWAY POWER Zones LOCATIONS 211 - 218 Partition Arm Options (Partitions 1 – 8) [#] [INSTALLER CODE] [*] [LOCATION] [*] [BITMAP] [*] Location = 211 – 218 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 15 * For option 5 or 6 to work, option 2 needs to be disabled. LOCATIONS 221 - 228 Extra Partition Options (Partitions 1 - 8) [#] [INSTALLER CODE] [*] [LOCATION] [*] [BITMAP] [*] Location = 221 – 228 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 16 Keypad Display Start Zone (default = Zone 1) [#] [INSTALLER CODE] [*] [2] [4] [1] [*] [KEYPAD NUMBER] [*] [START ZONE] [*] Keypad number = 1 – 8 Start zone = 01 – 64 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 17 Global Reporting Code 2 [#] [INSTALLER CODE] [*] [3] [0] [1] [*] [SUB-LOCATION] [*] [REPORTING CODE] [*] Sub-location = 1 – 8 Sub-location 1 is Reserved Sub-location 2 is Bus-wired Peripheral Tamper IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 18 LOCATIONS 316 - 319 Zone Tamper Restore Reporting Code [#] [INSTALLER CODE] [*] [LOCATION] [*] [ZONE NUMBER] [*] [REPORTING CODE] [*] Location = 316 – 319 Zone Number = 01 – 64 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 19 Reporting code = 01 – FF, with 00 to disable LOCATION 338 Keypad Fire Reporting Code [#] [INSTALLER CODE] [*] [3] [3] [8] [*] [PARTITION] [*] [REPORTING CODE] [*] Partition = 1 – 8 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 20 [#] [INSTALLER CODE] [*] [LOCATION] [*] [USER] [*] [REPORTING CODE] [*] Location = 366 – 373 User = 01 – 128 Reporting code = 01 – FF, with 00 to disable IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 21 Keypad 7 Keypad 8 LOCATIONS 390 – 414 Partition Programmable Outputs [#] [INSTALLER CODE] [*] [LOCATION] [*] [PARTITION] [*] [OUTPUT] [ACTION] [*] Location = 390 – 414 Partition = 1 – 8 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 22 Tamper Zone Programmable Output Event Disabled [00] Siren Programmable Output Event Disabled [00] Strobe Programmable Output Event Disabled [00] Chime Programmable Output Event Disabled [00] Arm Follow Programmable Output Event Disabled [00] IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 23 [#] [INSTALLER CODE] [*] [LOCATION] [*] [SUB-LOCATION] [*] [OUTPUT NUMBER] [*] [ACTION] [*] Location = 423 – 426 Output number = same as for Locations 390 – 413 Action = same as for Locations 390 – 413 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 24 LOCATION 429 - 434 Zone Expander Output Pulse Time (default = 0002) [#] [INSTALLER CODE] [*] [LOCATION] [*] [OUTPUT NUMBER] [*] [MMSS] [*] Location = 429 – 434 Output number = 1 – 2 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 25 Keypad Output OFF Time (default = 2400) [#] [INSTALLER CODE] [*] [4] [5] [7] [*] [OUTPUT NUMBER] [*] [HHMM] [*] Output number = 1 – 8 HHMM = 00h00m – 23h59m, with 24h00m to disable IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 26 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Keypad 1 Keypad 2 Keypad 3 Keypad 4 Keypad 5 Keypad 6 Keypad 7 Keypad 8 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 27 Telephone module 2 shutdown reporting Disable zone swinger Telephone module 1 shutdown reporting Enable zone swinger Telephone module 2 shutdown restore reporting Disable zone swinger Telephone module 1 shutdown restore reporting IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 28 Telephone module 1 reporting Default values are shaded * The reporting code is only supported by Contact ID or SIA, and thus will not be reported if any other format has been selected. IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 29 * The reporting code is only supported by Contact ID, and thus will only be reported if Contact ID has been selected. * *The reporting code is only supported by Contact ID or SIA, and thus will not be reported if any other format has been selected. IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 30 *The reporting code is only supported by Contact ID or SIA, and thus will not be reported if any other format has been selected. ** The reporting code is only supported by Contact ID, and thus will only be reported if Contact ID has been selected. IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 31 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Default values are shaded IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 32 Reserved Reserved Reserved Reserved Enable armed without user Telephone module 2 code reporting Disable armed without user Telephone module 1 code reporting Reserved Reserved Reserved Reserved Default values are shaded IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 33 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 34 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 35 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
  • Page 36 IDS X64 Quick Programming Guide 700-398-03A Issued August 2010...
