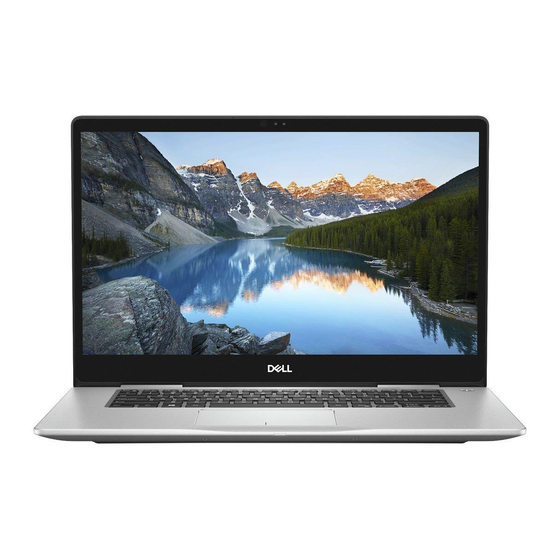

- Page 1 Inspiron 7580 Setup and Specifications Computer Model: Inspiron 7580 Regulatory Model: P70F Regulatory Type: P70F002...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your Inspiron 7580..........................4 2 Create a USB recovery drive for Windows..................... 6 3 Views of Inspiron 7580...........................7 Front.....................................7 Right.....................................7 Left.......................................8 Base..................................... 9 Display....................................10 Bottom....................................10 4 Specifications of Inspiron 7580........................12 Computer model................................12 Dimensions and weight.............................. -
Page 4: Set Up Your Inspiron 7580
Finish operating system setup. For Ubuntu: Follow the instructions on the screen to finish setup. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: • Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 5 Create recovery drive for Windows. NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. For more information, see Create a USB recovery drive for Windows. Set up your Inspiron 7580...
-
Page 6: Create A Usb Recovery Drive For Windows
A message appears, indicating that all data in the USB flash drive will be deleted. Click Create. Click Finish. For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals. Create a USB recovery drive for Windows... -
Page 7: Views Of Inspiron 7580
Views of Inspiron 7580 Front Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle between the power and battery-status light, and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. -
Page 8: Left
USB 3.1 Gen 1 port Connect peripherals such as storage devices and printers. Provides data transfer speeds up to 5 Gbps. Headset port Connect headphones or a headset (headphone and microphone combo). Views of Inspiron 7580... -
Page 9: Base
Press to put the computer in sleep state if it is turned on. Press and hold for 4 seconds to force shut-down the computer. Me and My Dell at NOTE: You can customize the power-button behavior in Power Options. For more information, see www.dell.com/support/manuals. -
Page 10: Display
Camera-status light Turns on when the camera is in use. Camera Enables you to video chat, capture photos, and record videos. Left microphone Provides digital sound input for audio recording and voice calls. Bottom Left speaker Views of Inspiron 7580... - Page 11 Provides audio output. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Right speaker Provides audio output. Views of Inspiron 7580...
-
Page 12: Specifications Of Inspiron 7580
Specifications of Inspiron 7580 Computer model Inspiron 7580 Dimensions and weight Table 2. Dimensions and weight Height: Front 18.81 mm (0.74 in.) Rear 20.04 mm (0.79 in.) Width 361.36 mm (14.23 in.) Depth 244.5 mm (9.63 in.) Weight (maximum) 2.16 kg (4.76 lb) -
Page 13: Chipset
16 GB DDR4 at 2400 MHz (1 x 16 GB) • 16 GB DDR4 at 2400 MHz (2x 8 GB) • 32 GB DDR4 at 2400 MHz (1 x 32 GB) • 32 GB DDR4 at 2400 MHz (2 x 16 GB) Specifications of Inspiron 7580... -
Page 14: Ports And Connectors
One M.2 slot for WiFi and Bluetooth combo card • One M.2 2280 slot for solid-state drive Communications Ethernet Table 7. Ethernet specifications Model number Realtek RTL8111H Ethernet controller (integrated on system board) Transfer rate 10/100/1000 Mbps Specifications of Inspiron 7580... -
Page 15: Audio
7.1 Channel output through HDMI • One headset port (headphone and microphone combo) Speakers Internal speaker amplifier Supported External volume controls Using media-control shortcut keys Speaker output: Average Peak 2.5 W Subwoofer output Not supported Microphone Digital-array microphone Specifications of Inspiron 7580... -
Page 16: Storage
Table 12. Media-card reader specifications Type One SD card slot Cards supported • Secure Digital (SD) • Secure Digital High Capacity (SDHC) • SD Extended Capacity (SDXC) Keyboard Table 13. Keyboard specifications Type Backlit keyboard Layout QWERTY Specifications of Inspiron 7580... -
Page 17: Camera
Front camera Sensor type CMOS Resolution: Camera: Still image 0.92 megapixel (HD) Video 1280 x 720 (HD) at 30 fps Diagonal viewing angle: Camera 78.6 degrees Touchpad Table 15. Touchpad specifications Resolution: Horizontal 1229 Vertical Dimensions: Specifications of Inspiron 7580... -
Page 18: Touchpad Gestures
0.2 kg (0.44 lb) 0.25 kg (0.55 lb) Dimensions: Height 5.90 mm (0.23 in.) 5.90 mm (0.23 in.) Width 191.85 mm (7.55 in.) 242.16 mm (9.53 in.) Depth 103.25 mm (4.06 in.) 103.25 mm (4.06 in.) Specifications of Inspiron 7580... -
Page 19: Display
Dell Power Manger start and end time, and so application. For more on using the Dell Power information on the Dell Manger application. For Me and Power Manger see, more information on the... -
Page 20: Video
One USB 3.1 Gen 1 (Type-C) port/DisplayPort and one 2 GB GDDR5 HDMI port Table 20. Integrated graphics specifications The following table provides the detailed integrated graphics specifications of Inspiron 7580. Controller External display support Memory size Processor Intel UHD Graphics 620 One USB 3.1 Gen 1 (Type-C) port/... - Page 21 ‡ Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position. Specifications of Inspiron 7580...
-
Page 22: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Table 22. List of keyboard shortcuts Keys Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display... - Page 23 Keys Description Toggle between battery-status light and hard-drive activity light NOTE: Hard-drive activity light is supported only on computers shipped with a hard drive. Keyboard shortcuts...
-
Page 24: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 23. Self-help resources Information about Dell products and services www.dell.com Dell Help & Support app Tips Contact Support In Windows search, type Contact Support, and press Enter.
