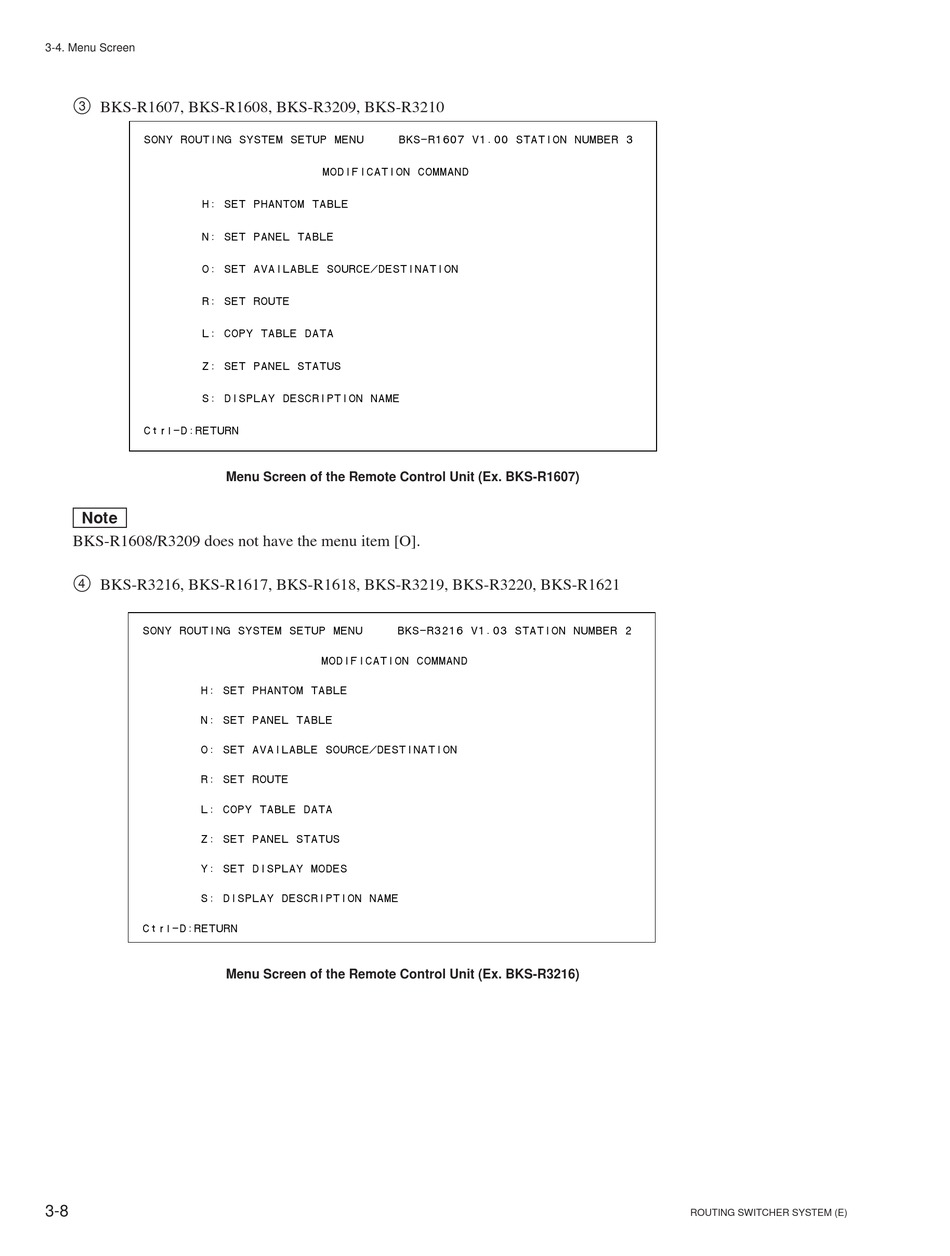

3-4. Menu Screen
3 BKS-R1607, BKS-R1608, BKS-R3209, BKS-R3210
SONY ROUTING SYSTEM SETUP MENU
Å
H: SET PHANTOM TABLE
N: SET PANEL TABLE
O: SET AVAILABLE SOURCE/DESTINATION
R: SET ROUTE
L: COPY TABLE DATA
Z: SET PANEL STATUS
S: DISPLAY DESCRIPTION NAME
Ctrl-D:RETURN
n
BKS-R1608/R3209 does not have the menu item [O].
4 BKS-R3216, BKS-R1617, BKS-R1618, BKS-R3219, BKS-R3220, BKS-R1621
SONY ROUTING SYSTEM SETUP MENU
Å
H: SET PHANTOM TABLE
N: SET PANEL TABLE
O: SET AVAILABLE SOURCE/DESTINATION
R: SET ROUTE
L: COPY TABLE DATA
Z: SET PANEL STATUS
Y: SET DISPLAY MODES
S: DISPLAY DESCRIPTION NAME
Ctrl-D:RETURN
3-8
BKS-R1607 V1.00 STATION NUMBER 3
MODIFICATION COMMAND
Menu Screen of the Remote Control Unit (Ex. BKS-R1607)
BKS-R3216 V1.03 STATION NUMBER 2
MODIFICATION COMMAND
Menu Screen of the Remote Control Unit (Ex. BKS-R3216)
ROUTING SWITCHER SYSTEM (E)
