3.3.15. Inspection of air hoses (Foundry Prime)

General
The air hoses on Foundry Prime robots must be inspected for leakage every six months.
Required equipment
Equipment, etc.
Leak detection spray
Pressure gauge
Cut off valve
Procedure
For this test it is recommended that the air supply to the robot has a pressure gauge and a cut-
off valve connected.
1. Apply compressed air to the air
2. Close the cut off valve.
3. The time is < 5 seconds:
4. Pressurize by opening the cut off
5. Spray suspected leak areas with
6. When the leak is localized: correct
3HAC022033-001 Revision: K
工控帮助教小舒QQ2823408167
Action
connector on robot base, and
raise the pressure with the knob
until the correct value is shown on
the pressure gauge.
• If the answer is YES:
Localize the leakage by
following the procedures
below.
• If the anser is NO: The
system is OK. Remove the
leak testing equipment.
valve.
leak detection spray.
Bubbles indicate a leak.
the leak.
3.3.15. Inspection of air hoses (Foundry Prime)
Art. no.
-
-
-
Note
Recommended pressure:
0.2-0.3 bar

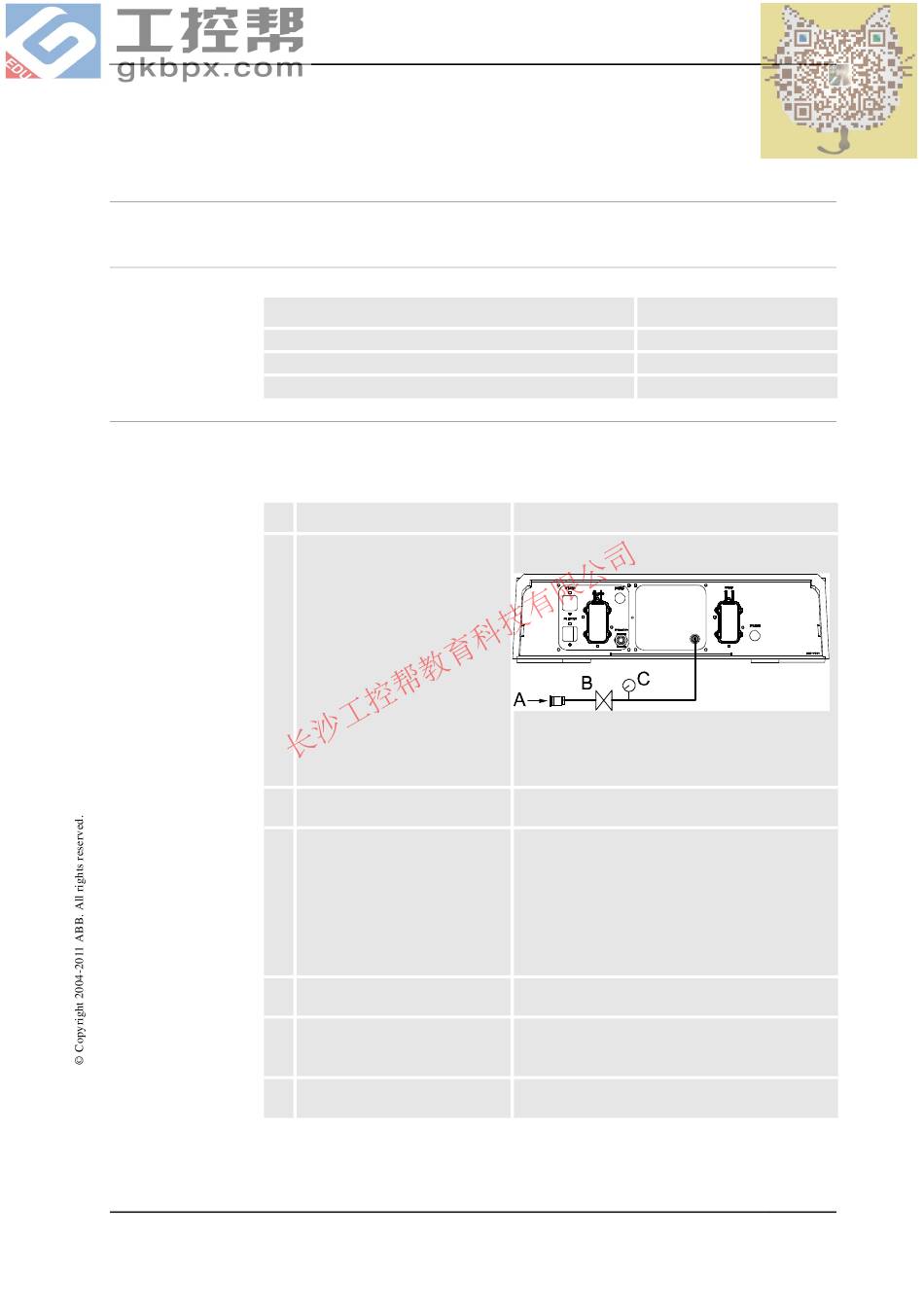

xx0600002794
• A: Air Connection
• B: Cut off valve
• C: Pressure gauge
It should take at least 5 seconds for the pressure to
reach 0 bar.
