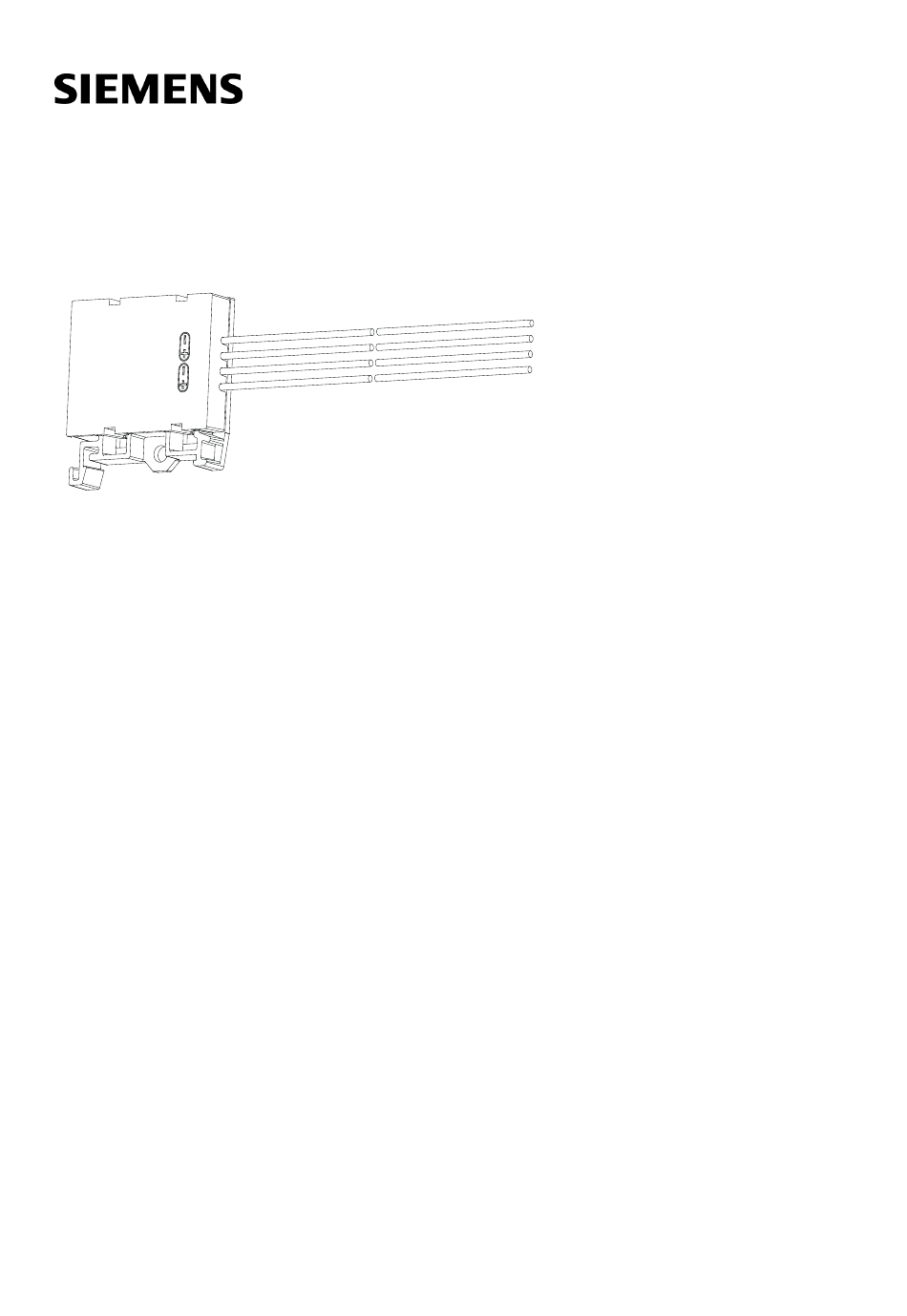

- Page 1 FDCL221 Line separator Technical manual Building Technologies Fire Safety & Security Products...
- Page 2 Technical specifications and availability subject to change without notice. © 2004-2009 Copyright Siemens Building Technologies, Inc. We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our...
-
Page 3: Table Of Contents
Table of contents About this document ..................5 Safety......................8 Safety notices....................8 Safety regulations for the method of operation ..........10 Standards and directives complied with............12 Release Notes....................12 Structure and function................13 Overview .......................13 3.1.1 Details for ordering ................14 Setup ......................14 3.2.1 Indication elements................14 Function......................15 Accessories ....................16 3.4.1... - Page 4 Building Technologies 007063_e_en_-- Fire Safety & Security Products 09.06.2009...
-
Page 5: About This Document
About this document About this document Goal and purpose This document contains all information on the line separator module FDCL221. Consistent compliance with the instructions guarantees correct and safe use. Target groups The information in this document is intended for the following target groups:... - Page 6 Supplementary information is labeled using the 'i' symbol. Reference documents Document ID Title 008025 Installation of FDCL221 line separator 008331 'List of compatibility' A6V10229261 'List of compatibility' (for 'Cerberus PRO' product line) Building Technologies 007063_e_en_-- Fire Safety &...
- Page 7 About this document Technical terms Term Explanation FDnet/C-NET Addressed detector line Collective detector line Non-addressed detector line Light-emitting diode Loop Detector line loop line Polycarbonate (plastic) Sub-stub Detector line on a FDnet/C-NET loop only connected on one side History of changes Document ID Edition date Brief description...
-
Page 8: Safety
Safety Safety Safety notices The safety notices must be observed in order to protect people and property. The safety notices in this document contain the following elements: Symbol for danger Signal word Nature and origin of the danger Consequences if the danger occurs Measures or prohibitions for danger avoidance Symbol for danger This is the symbol for danger. - Page 9 Safety Signal word The signal word classifies the danger as defined in the following table: Signal word Danger level DANGER DANGER identifies a dangerous situation, which will result directly in death or serious injury if you do not avoid this situation.
-
Page 10: Safety Regulations For The Method Of Operation
Safety regulations for the method of operation National standards, regulations and legislation Siemens products are developed and produced in compliance with the relevant European and international safety standards. Should additional national or local safety standards or legislation concerning the planning, assembly, installation,... - Page 11 Disregard of the safety regulations Before they are delivered, Siemens products are tested to ensure they function correctly when used properly. Siemens disclaims all liability for damage or injuries caused by the incorrect application of the instructions or the disregard of danger warnings contained in the documentation.
-
Page 12: Standards And Directives Complied With
We are grateful for any suggestions for improvement. Standards and directives complied with A list of the standards and directives complied with is available from your Siemens contact. Release Notes Limitations to the configuration or use of devices in a fire detection installation with a particular firmware version are possible. -
Page 13: Structure And Function
Structure and function Structure and function Overview FDCL221 line separator The FDCL221 line separator can detect and disconnect short-circuits in the FDnet/C-NET. Properties Compatible with FS20/FS720 fire detection system Communication via the detector line Individual addressing of line separators for easy location identification... -
Page 14: Details For Ordering
Details for ordering Type Order no. Designation FDCL221 A5Q00004011 Line separator Setup View of FDCL221 with open housing 1 Housing cover 4 PCB 2 Yellow LED 5 Stranded cable with 2.8 x 0.8 mm flat connector sleeve 3 Housing bottom 3.2.1 Indication elements The line separator has a status indicator. -
Page 15: Function
Structure and function Function The FDCL221 line separator is an electronic switch which is inserted in the FDnet/C-NET. The function of the line separator in the FDnet/C-NET loop is to connect sub-stub lines to the FDnet/C-NET and selectively disconnect them in the event of a short- circuit. -
Page 16: Accessories
Top hat rail TS35 Standard top hat rail for installing devices Width: 35 mm Length: 122 mm or 288 mm Compatible with: FDCL221 line separator – Mounting foot FDCM291 – Order no. (length 122 mm): BPZ:5644780001 Order no. (length 288 mm): BPZ:5644230001 3.4.2... -
Page 17: Planning
The following figures show the common variants of a modernized detector line on which the FDnet/C-NET devices (T) are installed with integrated line separation function. The outgoing stub lines A to D are connected to the FDCL221 line separators via terminal blocks or micro terminals (X). -
Page 18: Compatibility
Planning Housing FDCL221 line separator in the control panel 1 Control panel C Sub-stub C 2 FDnet/C-NET loop D Sub-stub D 3 FDCL221 line separator T FDnet/C-NET device A Sub-stub A X Terminal blocks or micro terminals B Sub-stub B Compatibility Compatible with all control panels that support the FDnet/C-NET detector line. -
Page 19: Positioning
Planning Positioning When renewing collective systems, the line separators are installed at points where several stub lines converge. The line separator can usually be housed in an intermediate distributor on different floors. If all the stub lines are routed individually to the collective control panel, the line separator is directly installed in the new fire control panel. -
Page 20: Mounting / Installation
Assembly The line separator may be fitted in any position. Ensure that the line separator LED is visible after installation. You can fit the FDCL221 line separator in various ways: Using a top hat rail TS35 Using the fastening hole... - Page 21 Screw terminals or spring terminals Soldered connections Installation with mounting hole Mounting hole in FDCL221 1 Mounting hole with Ø 4.4 mm Use a screw to secure the line separator onto a plane surface or use a cable tie to secure to a grid.
-
Page 22: Electrical Connection
Only connect one wire per terminal. This is the only way of ensuring a problem- free connection over the device's entire service life. The connection diagram shows the electrical connection for the FDCL221 line separator in the FDnet/C-NET using terminal blocks or micro terminals. -
Page 23: Wiring
Mounting / Installation 5.2.1 Wiring Always insert a line separator before a sub-stub line. 1. Use a terminal to connect the line separator to the FDnet/C-NET. The pigtails are provided with pressed-on 2.8 x 0.8 mm flat connector sleeves in the factory. -
Page 24: Shielded Cable
Mounting / Installation 5.2.2 Shielded cable Shielded cables must be earthed in stars at one point (e.g. on the control panel). Cable shieldings must be linked with one another using an insulated micro terminal or connection terminal. The shielding must not touch any extrinsic earthing potentials or metal parts in the device. -
Page 25: Commissioning
Commissioning Commissioning From a FDnet/C-NET communication point of view, the line separator FDCL221 is a line participant which occupies one bus address and is visible in the line topology. Commissioning is not mandatory. The procedure for the control panel depends on the fire detection installation. -
Page 26: Maintenance And Troubleshooting
Maintenance and troubleshooting Maintenance and troubleshooting The line separator module is maintenance-free. It monitors itself and has to be replaced if damaged. Building Technologies 007063_e_en_-- Fire Safety & Security Products 09.06.2009... -
Page 27: Specifications
Specifications Specifications Technical data Detector line Operating voltage 12 … 33 V DC Operating current (quiescent) 250 µA Maximum current connection factor Quiescent current connection factor Address connection factor Separator connection factor Protocol FDnet/C-NET Compatibility See 'List of compatibility' Line separator Line voltage: Nominal 32 V DC (= V... -
Page 28: Dimensions
QA Standards Siemens Standard SN 36350 ISO 9001 ISO 9004 Dimensions Dimensions of FDCL221 line separator 1 Pigtail 0.5 mm , length = 500 mm, with 2.8 x 0.8 mm flat connector sleeve pressed on in the factory Environmental compatibility... -
Page 29: Index
Index Index Intermediate distributor Installation site, 17 Attachment Cable tie, 14 Screw, 14 Top hat rail, 14 Localization mode, 15 Status indicator, 15 Line separator Compatibility, 18 Electronic switch, 13 Compatibility with control panels, 18 List of compatibility, 6, 18 Control panel Localization mode Installation site, 18... - Page 30 Issued by © 2004-2009 Copyright Siemens Building Technologies, Inc. Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Industry Sector Building Technologies Division International Headquarters Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 www.siemens.com/buildingtechnologies Document ID...
