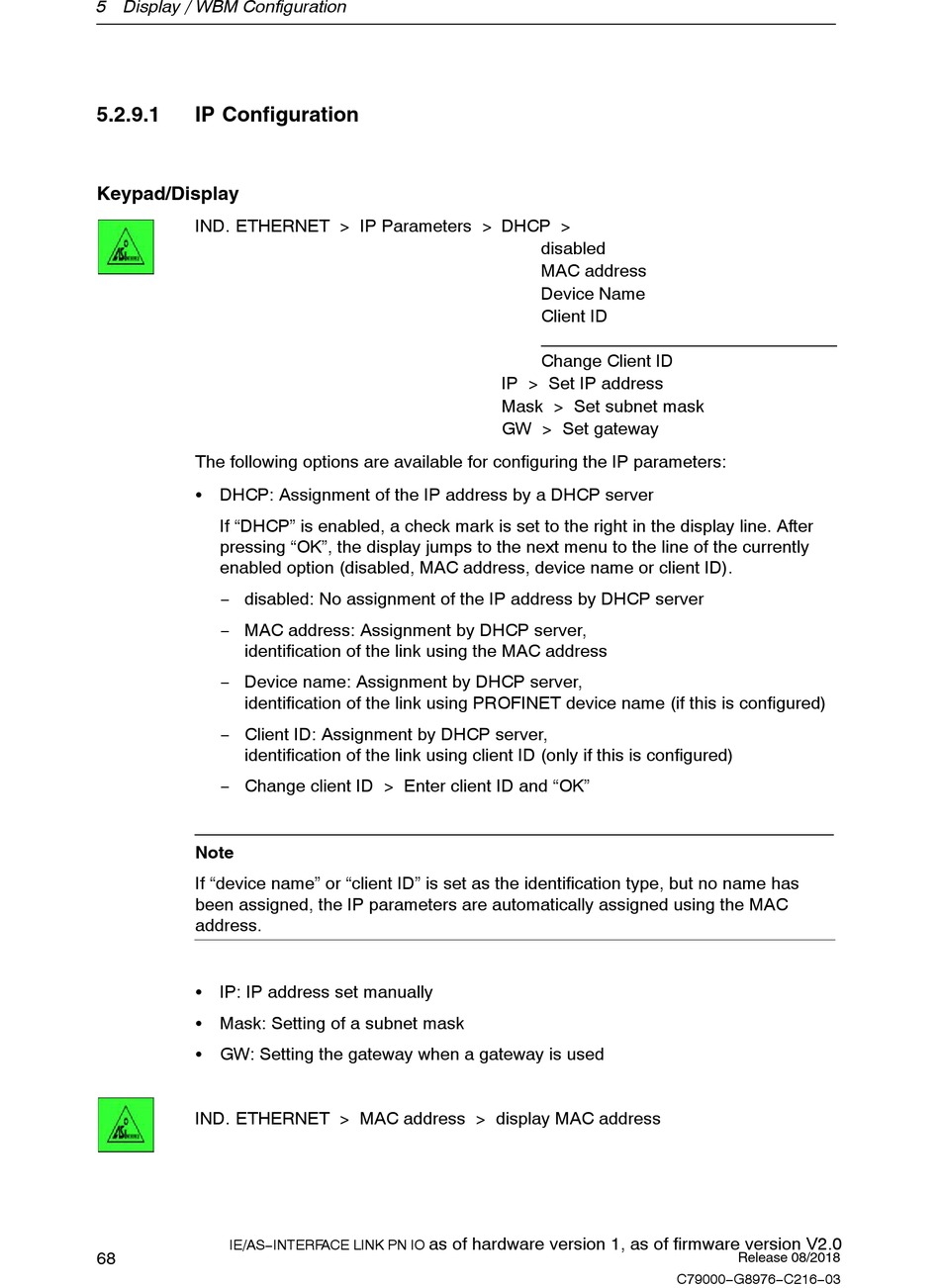

5 Display / WBM Configuration
5.2.9.1
IP Configuration
Keypad/Display
IND. ETHERNET > IP Parameters > DHCP >
The following options are available for configuring the IP parameters:
S DHCP: Assignment of the IP address by a DHCP server
If "DHCP" is enabled, a check mark is set to the right in the display line. After
pressing "OK", the display jumps to the next menu to the line of the currently
enabled option (disabled, MAC address, device name or client ID).
− disabled: No assignment of the IP address by DHCP server
− MAC address: Assignment by DHCP server,
identification of the link using the MAC address
− Device name: Assignment by DHCP server,
identification of the link using PROFINET device name (if this is configured)
− Client ID: Assignment by DHCP server,
identification of the link using client ID (only if this is configured)
− Change client ID > Enter client ID and "OK"
Note
If "device name" or "client ID" is set as the identification type, but no name has
been assigned, the IP parameters are automatically assigned using the MAC
address.
S IP: IP address set manually
S Mask: Setting of a subnet mask
S GW: Setting the gateway when a gateway is used
IND. ETHERNET > MAC address > display MAC address
IE/AS−INTERFACE LINK PN IO
68
disabled
MAC address
Device Name
Client ID
Change Client ID
IP > Set IP address
Mask > Set subnet mask
GW > Set gateway
as of hardware version 1, as of firmware version V2.0
Release 08/2018
C79000−G8976−C216−03
