Mobius – Huawei E5330 Training Guide

Advertisement

loading

Related Manuals for Huawei Mobius E5330Bs-6

Summary of Contents for Huawei Mobius E5330Bs-6

  • Page 1 Mobius – Huawei E5330 Training Guide...
  • Page 2 Mobius – Huawei E5330 Training Guide Chapter 1 Introduction Page 3 - 13 Chapter 2 Basic Settings Page 14 - 21 Chapter 3 Page 22 - 23 Chapter 4 Advance Settings Page 24 - 47 Chapter 5 Page 48 - 53...
  • Page 3 INTRODUCTION...
  • Page 4 Chapter 1 Introduction...
  • Page 5 Chapter 1 Introduction Appearance...

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Connect to all Wi-Fi devices...

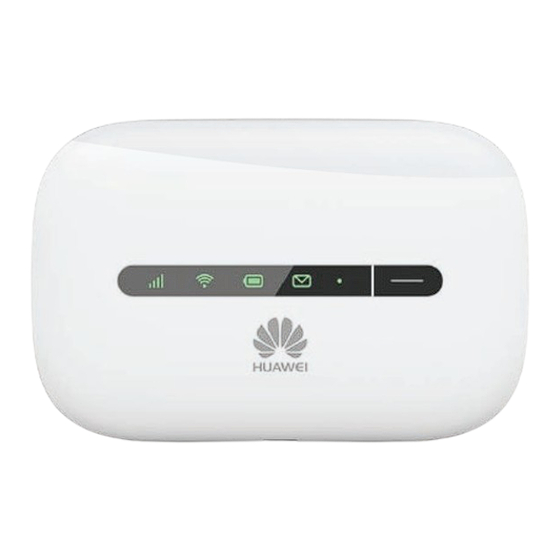

  • Page 7 Chapter 1 Introduction HUAWEI E5330Bs-6 Mobile WiFi (hereinafter referred to as the E5330Bs-6) is a high-speed packet access mobile hotspot. • The E5330Bs-6 supports the following standards: • High Speed Packet Access Plus (HSPA+) • High Speed Uplink Packet Access (HSUPA) •...
  • Page 8 • PS domain data service based on UMTS and GSM • SMS based on CS/PS domain of GSM and UMTS • Wi-Fi • Five-second fast boot • Support for HUAWEI Mobile WiFi App • Press and Play • 3G/Wi-Fi auto offl oad • IPv6 /IPv4 dual stack (optional) •...
  • Page 9 Chapter 1 Chapter 1 Introduction Introduction • The E5330Bs-6 mainly supports the following features: • Traffi c statistic • Standard Micro USB interface • HiLink features (Driverless, Zero installation) • LED indicators • Built-in UMTS and WLAN high gain antenna •...
  • Page 10 Chapter 1 Chapter 1 Introduction Introduction • Hardware Technical Specifi cations Item Specifi cations Technical standard WAN: HSPA+/HSPA/UMTS/EDGE/GPRS/GSM Operating frequency WLAN: IEEE 802.11b/g/n HSPA+/HSPA/UMTS: 2100/1900/850 MHz EDGE/GPRS/GSM: 1900/1800/900/850 MHz WLAN: 2400MHz 2483.5MHz Internal memory 128 MB Flash, 64 MB Memory Maximum transmitter power EDGE/GPRS/GSM: 1900/1800/900/850 MHz 802.11b: 14 (+/-3) dBm...
  • Page 11 Chapter 1 Chapter 1 Introduction Introduction • Hardware Technical Specifi cations Item Specifi cations Receiver sensitivity 802.11b: -76 dBm@11 Mbit/s 802.11g: -82 dBm@1 Mbit/s WLAN 802.11g: -65 dBm@54 Mbit/s 802.11n: -64 dBm@65 Mbit/s Operating frequency 802.11b: Up to 11 Mbit/s 802.11g: Up to 54 Mbit/s 802.11n: Support MCS0–MCS7;...
  • Page 12 Chapter 1 Chapter 1 Introduction Introduction • Hardware Technical Specifi cations Item Specifi cations Maximum working time: 5–6 hours (depending on the network) Battery Maximum standby time: 300 hours (depending on the network) USB interface: Micro USB External interfaces SIM card interface: standard 6-pin SIM card interface Green: Strong signal Signal Orange: Weak signal...
  • Page 13 Chapter 1 Chapter 1 Introduction Introduction • Hardware Technical Specifi cations Item Specifi cations Green: New message Blinking green: Inbox full Power Blinks slowly: The Mobile WiFi enters the standby mode Key-press Power switch, Reset switch Built-in GSM/UMTS main diversity antenna Antenna Built-in UMTS diversity antenna Built-in WLAN antenna...

  • Page 14: Basic Settings

    BASIC SETTINGS...
  • Page 15 Chapter 2 Basic Settings • Power on Press and hold the Press and hold the button until the button until the indicator lights up, indicating that the Mobile WiFi is turned on. Note: Press and hold the Press and hold the button to turn off button to turn off the Mobile WiFi.
  • Page 16 Chapter 2 Basic Settings How to setup WiFi connection between E5330Bs-6 and laptop Step1: Enable your wireless network card and double click Step1: Enable your wireless network card and double click icon displayed on windows start bar to open icon displayed on windows start bar to open “Choose a wireless network”...
  • Page 17 Chapter 2 Basic Settings How to setup WiFi connection between E5330Bs-6 and laptop Step2: Select SSID of E5330Bs-6 in the local wireless device list (The default SSID and encryption key are printed on the Mobile WiFi label.), click on the Mobile WiFi label.), click to connect.
  • Page 18 Chapter 2 Basic Settings How to setup WiFi connection between E5330Bs-6 and laptop Step3: Input WiFi Key in the dialog of password input then click Step3: Input WiFi Key in the dialog of password input then click to establish connection to establish connection...
  • Page 19 Chapter 2 Basic Settings How to setup WiFi connection between E5330Bs-6 and laptop Step4: After the icon of wireless network card turned from Step4: After the icon of wireless network card turned from Step4: After the icon of wireless network card turned from (status of acquiring IP address ) into (status of acquiring IP address ) into (status of acquiring IP address ) into...
  • Page 20 Chapter 2 Basic Settings • Login Web UI • The device will be set up automatically based on the settings in your SIM Card, but if you need to modify a setting for your specifi c circumstances, then all changes are available from the device management page which can be accessed when PC have connected to E5 over Wi-Fi or USB cable by typing http://192.168.8.1 into your browser.
  • Page 21 Chapter 2 Basic Settings • Check the Connecting Status The traffi c statistics function records the network traffi c and duration of the current connection as well as that since you last restored the Mobile WiFi to its default settings.
  • Page 23 Chapter 3 • Click the SMS icon on the console bar to enter the SMS page.

  • Page 24: Advance Settings

    ADVANCE SETTINGS...
  • Page 25 Chapter 4 Advance Settings • Use Quick Setup to connect to Internet Step 1. Confi gure Profi le Settings In this page you could set a profi le to let your E5 connect to Internet. Please click next button to next step when fi...
  • Page 26 Chapter 4 Advance Settings • Use Quick Setup to connect to Internet Step 2. Confi gure WLAN Setting In this page you could set the name of the SSID and the WiFi key.
  • Page 27 Chapter 4 Advance Settings • Dial-up In “Mobile Connection” option you set the Connection Mode and the MAX Idle Time(available in Auto connection mode) of the Device.
  • Page 28 Chapter 4 Advance Settings • Dial-up “Profi le Management” option could set up new profi le, delete/edit profi le already exist.
  • Page 29 Chapter 4 Advance Settings • Dial-up “Network Settings” could set E5330Bs-6’s network parameters. Users could do more confi guration through drop down list.
  • Page 30 Chapter 4 Advance Settings • Internet WLAN “Internet WLAN ” can connect to the Internet using a wireless local area network (WLAN) to reduce cellular network data usage.
  • Page 31 Chapter 4 Advance Settings • Internet WLAN The E5330Bs-6 will automatically connects to a WLAN based on the priorities you set.
  • Page 32 Chapter 4 Advance Settings • WLAN “WLAN Basic Settings” page users could enable/disable E5330Bs-6’s WiFi function, set SSID, select the authentication mode and encryption mode of WiFi also could set or change WiFi key...
  • Page 33 Chapter 4 Advance Settings • WLAN “WLAN Advanced Settings” page users could choose country, channel,etc option.
  • Page 34 Chapter 4 Advance Settings • WLAN WLAN MAC Filter...
  • Page 35 Chapter 4 Advance Settings • DHCP By default, the E5330Bs-6 has been set up as a DHCP (Dynamic Host Confi guration Protocol ) server, which provides IP addresses from “Start IP Address” toyou have to manually confi gure IP addresses for PCs. “End IP Address”...
  • Page 36 Chapter 4 Advance Settings • Security • Firewall Switch The IP address fi lter function and the WAN port ping function are available only when the fi rewall is enabled. It is advised to keep the fi rewall enabled unless you’re having specifi c issues/running applications that require turning it off.
  • Page 37 Chapter 4 Advance Settings • LAN Filter Used to blocked the packets transmit from certain LAN port to certain WAN port In the example All the UDP and TCP packets from 192.168.8.100:80 to 20.20.20.20:100 are blocked...
  • Page 38 Chapter 4 Advance Settings • Virtual Server Suppose that the E5330Bs-6’s IP address is 11.11.11.11, PC A, with IP address as 192.168.8.100, connect to E5330Bs-6 has set up a FTP server, the internet users want to access to the FTP server, and when they enter FTP://11.11.11.11, the PC A will provide the FTP server...
  • Page 39 Chapter 4 Advance Settings • Special Application • Confi gure parameters to allow the operating of special applications over the LAN, such as online games, vid eoconferencing, and IP phone • These settings are intended for advanced users wishing to manage advanced networking functions. •...
  • Page 40 Chapter 4 Advance Settings • Special Application Example • Consider a MSN Gaming Zone server that is accessed by the LAN Client using TCP protocol on port 47624. The gaming server responds by connecting the user using TCP on port 2400 when starting gaming sessions. In such a case you must use dynamic port forwarding, since this scenario confl...
  • Page 41 Chapter 4 Advance Settings • Special Application...
  • Page 42 Chapter 4 Advance Settings • DMZ Settings • Enabling the DMZ will allow the nominated PC to be accessed directly from the internet. This will com promise its security - Ensure your PC has the latest patches installed and that you have good, up to date security software (Firewall and Anti-Virus) installed.
  • Page 43 Chapter 4 Advance Settings • SIP ALG Settings • SIP: Session Initiation Protocol ALG: Application Layer Gateway • When SIP ALG function has disabled, users want to use VOIP service based on SIP protocol, the data fl ow send from VOIP software client to VOIP server will be blocked by fi rewall, so VOIP service cannot be used.
  • Page 44 Chapter 4 Advance Settings • System Device Information...
  • Page 45 Chapter 4 Advance Settings • System Modify Password...
  • Page 46 Chapter 4 Advance Settings • System Restore Default...
  • Page 47 Chapter 4 Advance Settings • System System Settings...
  • Page 49 Chapter 5 • How long does it take to charge the battery from fl at? • Mains charging • When not connected to the Mobile Broadband network – will take a maximum of 3 hours. • When connected – will depend on the number of users and the amount of traffi c fl owing, but charging will take slightly longer than 3 hours.
  • Page 50 Chapter 5 • Why does the E5330Bs-6 can’t be recognized by my PC? • Please check that E5330Bs-6 is power on • Please change to another USB port, check whether E5330Bs-6 is recognized in case the hardware problems • Please check if the PC has installed some drivers which are incompatible with E5330Bs-6 (e.g. some data card drivers, virtual CDROM drivers).
  • Page 51 Chapter 5 • Why does E5330Bs-6’s signal is weak and cannot register to 3G network? • Please check the network condition, check whether there is network which provided by your operator at the moment. Ensure you are not in some close environment •...
  • Page 52 Chapter 5 • E5330Bs-6 is getting hot when I use it for long periods of time? • This is quite normal. Continual data transmission will make some chipsets in E5330Bs-6 keep emitting heat. This temperature problem will happen under these circumstances: Continual data service, E5330Bs-6 is charging, E5330Bs-6 is charging while data service or the environment temperature is too high.
  • Page 53 Chapter 5 • Why does Wi-Fi signal always weak? • The Wi-Fi coverage when using battery is not as strong as that with external power charger. So if we want to get strong Wi-Fi signal we should use the USB cable or power charger •...
