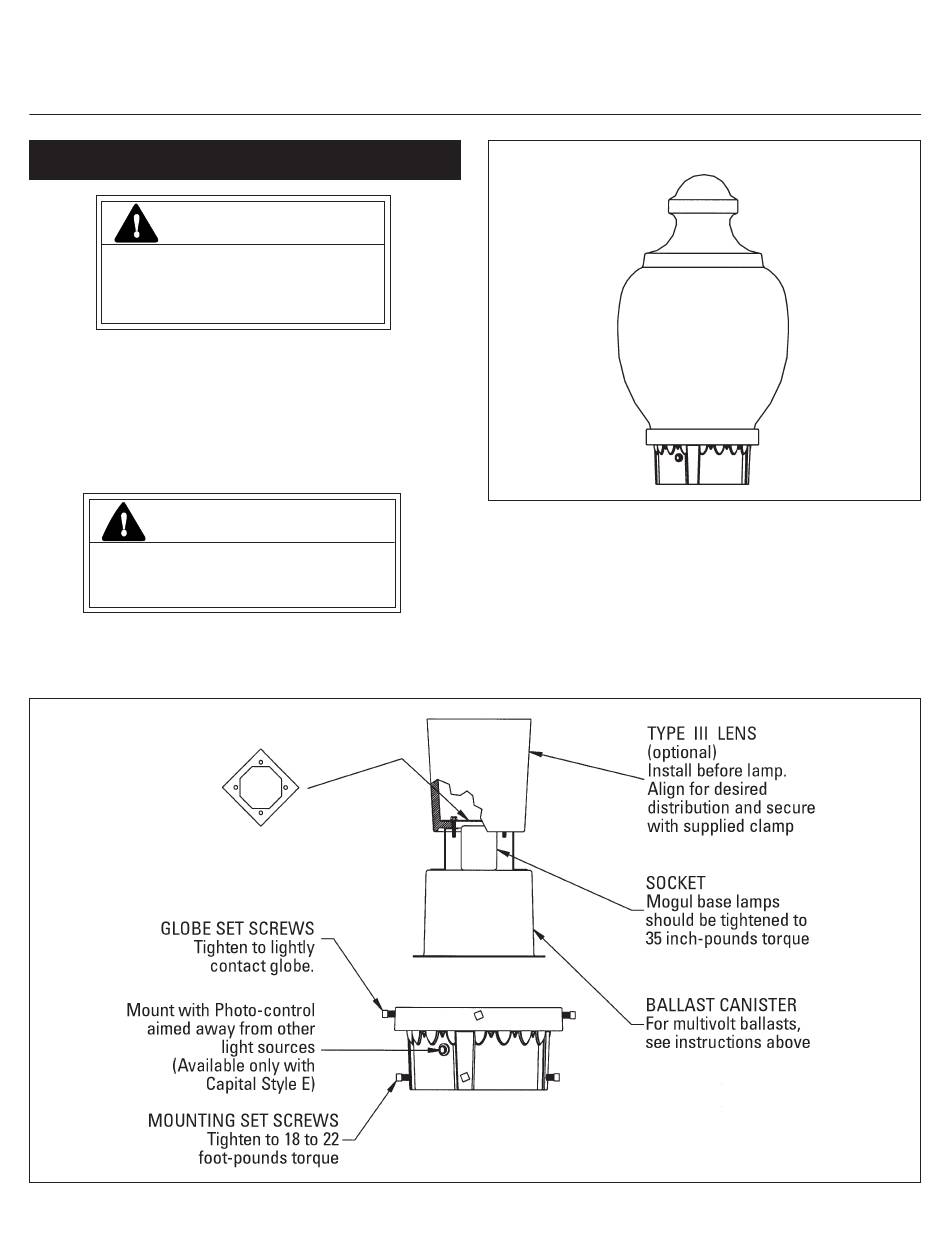

READ THOROUGHLY BEFORE INSTALLING
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
G E N E R A L
This luminaire is designed for use in outdoor applica-
tions and must adhere to 25°C Max ambient temperature
limitation. Install and maintain it according to the
following recommendations.
A .
M O U N T I N G
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
1. Place fixture on appropriately sized tenon.
2. Tighten fixture set screws to 18 to 22 ft-lbs. of torque.
3. Remove ballast cannister.
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred
to GE Lighting Solutions.
4. Wire unit (see section B of instruction sheet for wiring
instructions)
5. Replace ballast cannister.
6. Install Lamp (see section C of instruction sheet for lamp
instructions)
7. Install refractor making sure that asymmetric refractors
are properly oriented with respect to their "house side" or
"street side" labeling.
8. Tighten globe set screws to lightly contact globe.
GEH-5915
INSTRUCTIONS
Legacy
Luminaire
™
