Lumination
Construction Frame
(LRX Series)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
RISK OF ELECTRIC SHOCK
• Turn power off before inspection, installation or removal.
• Properly ground electrical enclosure.
RISK OF FIRE
• Follow all NEC and local codes.
• Use only UL approved wire for input/output connections.
Minimum size 18 AWG or 14 AWG for continuous runs.
Lamp Housings LRXS4, LRXS6, LRXS8 may be assembled with part FRAMExS. When Lamp Housings LRXS4, LRXS6, LRXS8 is assembled with Part
FRAMExS the final assembly complies with UL 1598 category IFAO recessed luminaire requirements. LRX products are suitable for wet location
covered ceiling only.
Les boîtiers de lampes LRXS4, LRXS6, LRXS8 peuvent être montés avec la pièce FRAMExS. Lorsque les boîtiers des lampes LRXS4, LRXS6, LRXS8 sont
montés avec la pièce FRAMExS, le montage inal respecte les exigences des luminaires encastrés de la catégorie IFAO de la norme UL 1598. LRX
produits conviennent pour emplacement humide couverte au plafond uniquement.
Save These Instructions
Use only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
Prepare Electrical Wiring
Electrical Requirements
The LED luminaire must be connected to the mains supply
according to its ratings on the product label.
LED.com
© 2023 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change
without notice. All values are design or typical values when measured under laboratory conditions.
LED Luminaire
®
WARNING/AVERTISSEMENT
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l'alimentation avant d''inspecter, installer ou déplacer le luminaire.
• Assurez-vous de correctement mettre à la terre le boîtier d'alimentation
électrique.
RISQUES D'INCENDIE
• Respectez tous les codes NEC et codes locaux.
• N'utilisez que des fils approuvés par UL pour les entrées/sorties de connexion.
Taille minimum 18 AWG ou 14 AWG pour les rangées continues.
NOTICE
Grounding Instructions
The grounding and bonding of the overall system shall be
done in accordance to local electric code of the country
where the luminaire is installed.
IND327-Lumination-LRX-Series-Square-LED-Luminaire-Installation-Guide_R01
Installation Guide
IND327
Page 1 of 4
(Rev 05/19/23)
Advertisement
Related Manuals for GE Lumination LRX Series
Summary of Contents for GE Lumination LRX Series
- Page 1 Installation Guide IND327 Lumination LED Luminaire ® Construction Frame (LRX Series) BEFORE YOU BEGIN Read these instructions completely and carefully. WARNING/AVERTISSEMENT RISK OF ELECTRIC SHOCK RISQUES DE DÉCHARGES ÉLECTRIQUES • Turn power off before inspection, installation or removal. • Coupez l’alimentation avant d’’inspecter, installer ou déplacer le luminaire. •...

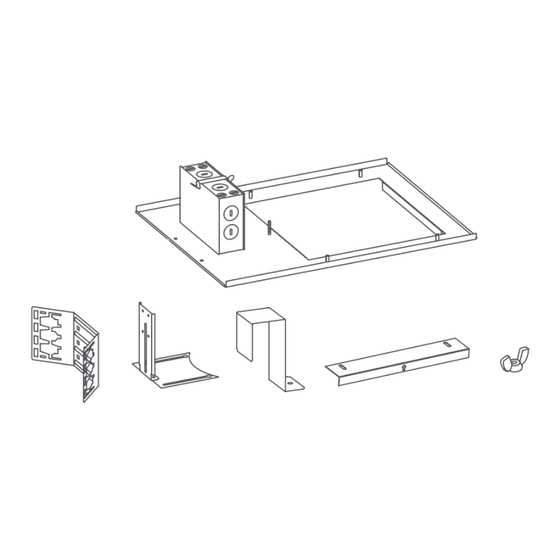

- Page 2 Lumination (LRX - Series) Installation Guide ® Components Provided Item Qty. 1 Frame (4-inch, 6-inch or 8-inch) 2 Mounting brackets 3 L-Bracket 4 U-Bracket 5 Adjustable Bracket 6 Wing nut NOTE: Part 4 is only for LRX EMBB version Frame Installation Mounting brackets Fixture Size Square Hole Size...
- Page 3 Lumination (LRX - Series) Installation Guide ® Adjust height and tighten wing nut Conduit Bars Option A: Mount fixture by attaching hanger bars to T-Grid Adjust fixture height to be flush with ceiling and tighten ceiling (BH3 SKU 94890). both mounting bracket wing nuts. Option B: Mount fixture with ½”...
- Page 4 Lumination (LRX - Series) Installation Guide ® Spring Connect plugs: Reassemble 3 pole to 3 pole connector box 2 pole to 2 pole Connect the two quick connectors and reassemble the Load springs into upright position by twisting the springs connector box.
