Canon Card Reader-C1 Service Manual
  1. Manuals
  2. Brands
  3. Canon Manuals
  4. Printer Accessories
  5. Card Reader-C1
  6. Service manual
Canon Card Reader-C1 Service Manual

Canon Card Reader-C1 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

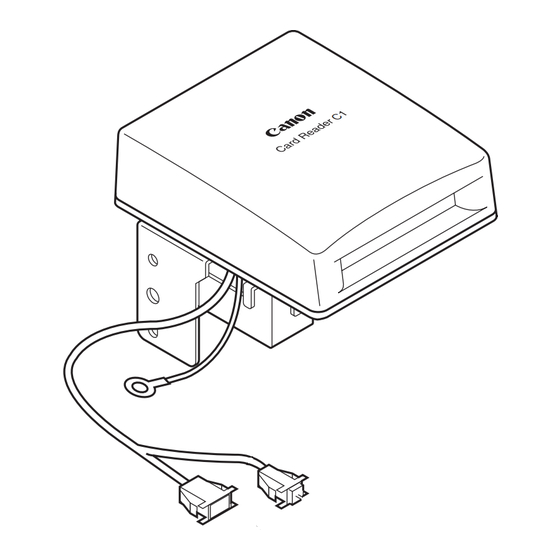

Card Reader-C1
Card Reader-D1
REVISION 0
FY8-13H2-000
JAN. 2001
COPYRIGHT© 2001 CANON INC.
2000
CANON CARD READER-C1/D1 REV.0 JAN. 2001 PRINTED IN JAPAN (IMPRIME AU JAPON)

Advertisement

Table of Contents
loading

Related Manuals for Canon Card Reader-C1

Summary of Contents for Canon Card Reader-C1

  • Page 1 Card Reader-C1 Card Reader-D1 REVISION 0 FY8-13H2-000 JAN. 2001 COPYRIGHT© 2001 CANON INC. 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001 PRINTED IN JAPAN (IMPRIME AU JAPON)
  • Page 2 Application This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair of products. This manual covers all localities where the products are sold. For this reason, there may be information in this manual that does not apply to your locality.
  • Page 3 Provides a description of a service mode. Provides a description of the nature of an error indication. Refers to the Copier Basics Series for a better understanding of the contents. COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 4 INTRODUCTION 2 Outline of the Manual This Service Manual provides basic facts and figures need to service the Card Reader-C1/ D1 in the field, and consists of the following: Chapter 1 Introduction outline, specifications, types of cards Chapter 2 Electrical System...

  • Page 5: Table Of Contents

    2 Card Detention Circuit ......2-2 CHAPTER 3 INSTALLATION 1 Installation Procedure ......3-1 2 Product Composition ......3-1 APPENDIX 1 General Circuit Diagram ....A-1 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 7: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION COPYRIGHT© 2001 CANON INC. CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 9: Outline

    The PDL output may be controlled by setting IDs and ID Nos. (Each card is given a unique ID, and ID Nos. are registered in user mode.) A card reader may be either of the following two depending on how it may be installed: • Card Reader-C1 (external installation type) • Card Reader-D1 (built-in type) Features 1.

  • Page 10: Specifications

    Power supply 5 VDC (supplied by host machine) Power consumption 0.5 W max. Card Reader-C1: 88 (W) × 100 (D) × 32 (H) mm Dimensions Card Reader-D1: 77 (D) × 85 (D) × 22 (H) mm Weight Card Reader C1: 130 g Card Reader-D1: 70 g COPYRIGHT©...

  • Page 11: Names Of Parts

    CHAPTER 1 INTRODUCTION 3 Names of Parts 3.1 Card Reader Card Reader-C1 [1] Card slot F01-301-01 Card Reader-D1 [1] Card slot F01-301-02 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 12: Types Of Cards

    A group number may be between 001 and 200, and as many as 200 groups may use cards (in the case of the magnetic type, between 0001 and 3000). Each group is expected to own one of each. Optical card Magnetic card F01-401-01 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 13: Maintenance Card

    2. The maintenance is included as part of the basic card set purchased by the user. As such, ask the user for the card when setting up the card reader unit. COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 15 CHAPTER 2 ELECTRICAL SYSTEM COPYRIGHT© 2001 CANON INC. CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 17 The electrical mechanisms of the card reader is controlled by the CPU (IC6) found on the card reader PCB. Do not disassemble the PCB in the field. [1] Card reader PCB [2] Card reader slot [3] Card F02-100-01 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 18: Card Detention Circuit

    For IPC communication 2 For serial communication F02-200-01 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 19 CHAPTER 2 ELECTRICAL SYSTEM Host Card reader PCB machine PHT1 PHT2 Magnetic head F02-200-02 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 21 CHAPTER 3 INSTALLATION COPYRIGHT© 2001 CANON INC. CANON CARD READER-C1/D1 REV.0 JAN. 2001...

  • Page 23: Product Composition

    F24-0472 For 501 to 3000 groups (500 cards) T03-200-01 This model does not use an erasing card, unit price setting card, or upper limit setting card. COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 25 APPENDIX COPYRIGHT© 2001 CANON INC. CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 27 12. 288Hz AVDD R(IN)P35 VLED2 1000p AVREF R(IN)P34 PHT2 R(IN)P33 VDD1 R(IN)P32 VDD0 R(IN)P31 R(IN)P30 VSS0 VSS1 RESET AVSS P75(IN)R RxDo/P23 IPC/SCI (A3) TxDo/P24 OSC1 (FG) (OUT)P25 COPYRIGHT© 2001 CANON INC. 2000 2000 2000 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001...
  • Page 29 Office Imaging Products Quality Assurance Center CANON INC. Printed in Japan REVISION 0 (JAN. 2001) (30359) 5-1, Hakusan 7-chome, Toride-shi, Ibaraki 302-8501 Japan COPYRIGHT© 2001 CANON INC. 2000 CANON CARD READER-C1/D1 REV.0 JAN. 2001 PRINTED IN JAPAN (IMPRIME AU JAPON)
  • Page 30 This publication is printed on 100% recycled paper. PRINTED IN JAPAN (IMPRIME AU JAPON) 0101AB0.20-0...
