SPEEDZONE SPORT CYCLOCOMPUTER
Congratulations on your purchase and welcome to the growing number of cyclists who are discovering a powerful new
generation of bicycle computers. Your Specialized SpeedZone Sport Cycle Computer has been designed to provide the
best combination of performance, features, durability and ease of use and installation.
This manual is an important part of your SpeedZone Cycle Computer. To get the most enjoyment out of your SpeedZone
Cycle Computer, please read all sections carefully and reference it when preforming the initial programming and operation
of the unit. Once you are familiar with all functions of your SpeedZone Cycle Computer, store this manual in a safe location
for future reference.
SPEEDZONE SPORT FEATURES
• Time of Day
• Odometer
• Wheel Size Settings
• Speed
• Average Speed
• Maximum Speed
• Individual Trip Distance (TRP)
MIDDLE LINE
PREV KEY
LOWER LINE
NEXT KEY
1
Advertisement
Table of Contents
Related Manuals for Specialized SpeedZone Sport
Summary of Contents for Specialized SpeedZone Sport
- Page 1 Congratulations on your purchase and welcome to the growing number of cyclists who are discovering a powerful new generation of bicycle computers. Your Specialized SpeedZone Sport Cycle Computer has been designed to provide the best combination of performance, features, durability and ease of use and installation.
-
Page 2: Modes Of Operation
DISPLAY SYMBOLS & THEIR MEANINGS MODES OF OPERATION There are 3 modes of operation. Scroll through modes by PRESSING the NEXT or PREV keys. You are never more than a symbol description what it means single key press away from any piece of information. MULTI-STAGE SPEED Indicates whether current speed is greater than, less than or equal to COMPARATOR... -
Page 3: Components Of The Cyclocomputer
COMPONENTS OF THE CYCLOCOMPUTER REPLACING THE BATTERY FACE OF COMPUTER SpeedZone Cycle Computers are powered by a CR2032 3v Lithium Battery. Under normal conditions, battery life should be approximately one year. INSTALLING OR REPLACING THE COMPUTER BATTERY ZIP- TIES Using a coin or flathead screwdriver, turn the battery door counter clockwise and remove the battery compartment cover. -
Page 4: Installing The Handle Bar Bracket
Install the molded rubber shim for 31.8mm handlebars and thread the included two (2) Install the Specialized steering column mount ring, with computer mount ON TOP of the zip-ties through the handlebar mount and molded rubber shim. stem or any spacers present so that it partially overlaps the top of the steerer tube. -
Page 5: Installing The Speed Sensor
WIRELESS SPEED SENSOR INSTALLATION SPORT WIRELESS ONLY The SpeedZone Sport is best installed starting with the fork sensor unit and then working up toward Pass the two cable ties through the sensor mounting holes and loosely mount to the left fork the handlebar or stem bracket. -
Page 6: Programming The Cyclocomputer
PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER PRIMARY SETTING SEQUENCE SETTING TIME From any main mode screen PRESS & HOLD the PREV key to enter the primary setting sequence. Scroll From the set clock screen PRESS the PREV key to SET TIME. Adjust the value being programmed by through settings by PRESSING the NEXT key. -
Page 7: Setting Wheel Size With Pre-Programmed Values
PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER SETTING WHEEL SIZE WITH PRE-PROGRAMMED VALUES MANUALLY SETTING WHEEL SIZE For easy setup, SpeedZone computers come with 14 pre-programmed wheel/tire sizes. Simply select the size of your tire If your wheel/tire size is not one of the pre-programmed sizes, or if you desire absolute accuracy, you may enter an exact as you scroll through the list in the programming sequence and you are done. -
Page 8: Reset The Cyclocomputer
PROGRAMMING THE CYCLOCOMPUTER PROGRAMMING THE CYCLOCOMPUTER RESET THE CYCLOCOMPUTER SETTING ODOMETER To reset the computer, from any operating mode screen PRESS & HOLD the PREV and NEXT keys simultaneously to reset the cyclocomputer. SpeedZone Cycle Computers allow you to manually adjust the Odometer. From the SET ODO screen PRESS the PREV key to enter the setting sequence. -
Page 9: Specifications And Ranges
SPEED your spokes and cause and accident. • See your authorized Specialized dealer if you have any • 0-99.9 MPH or KPH trouble installing or maintaining your computer. • 0.1 MPH or KPH resolution •... -
Page 10: Warranty Information
WARRANTY INFORMATION Specialized cycling computers are guaranteed to be free from defects in materials and/or workmanship (excluding battery) for a period of two years from the date of purchase. Specialized will, at its option, repair or replace your defective computer.
Need help?
Do you have a question about the SpeedZone Sport and is the answer not in the manual?
Questions and answers
How do I turn off my speed zone sport?
The Specialized SpeedZone Sport has an auto-wake/auto-timer function, meaning it does not require manual turning off. It will automatically enter a low-power state when not in use.
This answer is automatically generated

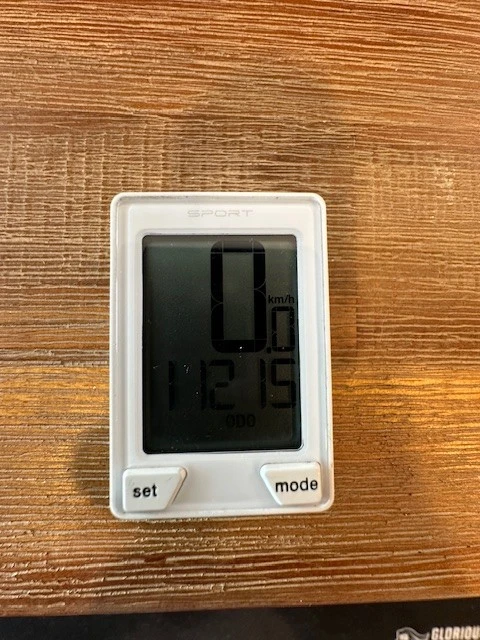

The image below shows a Specialized Speedzone Sport that is not shown in any your manuals and I do not see how to change from km to mi
To change the display from kilometers to miles on a Specialized SpeedZone Sport:
1. Press the "MODE" button until (OD) appears on the bottom of the screen.
2. Hold down the "FUNCTION" button and tap the "MODE" button once.
3. The Km/h indicator will flash.
4. If you want miles instead of kilometers, press the "MODE" button to toggle the setting.
5. Once the correct unit is displayed, press the "FUNCTION" button to confirm.
This answer is automatically generated
