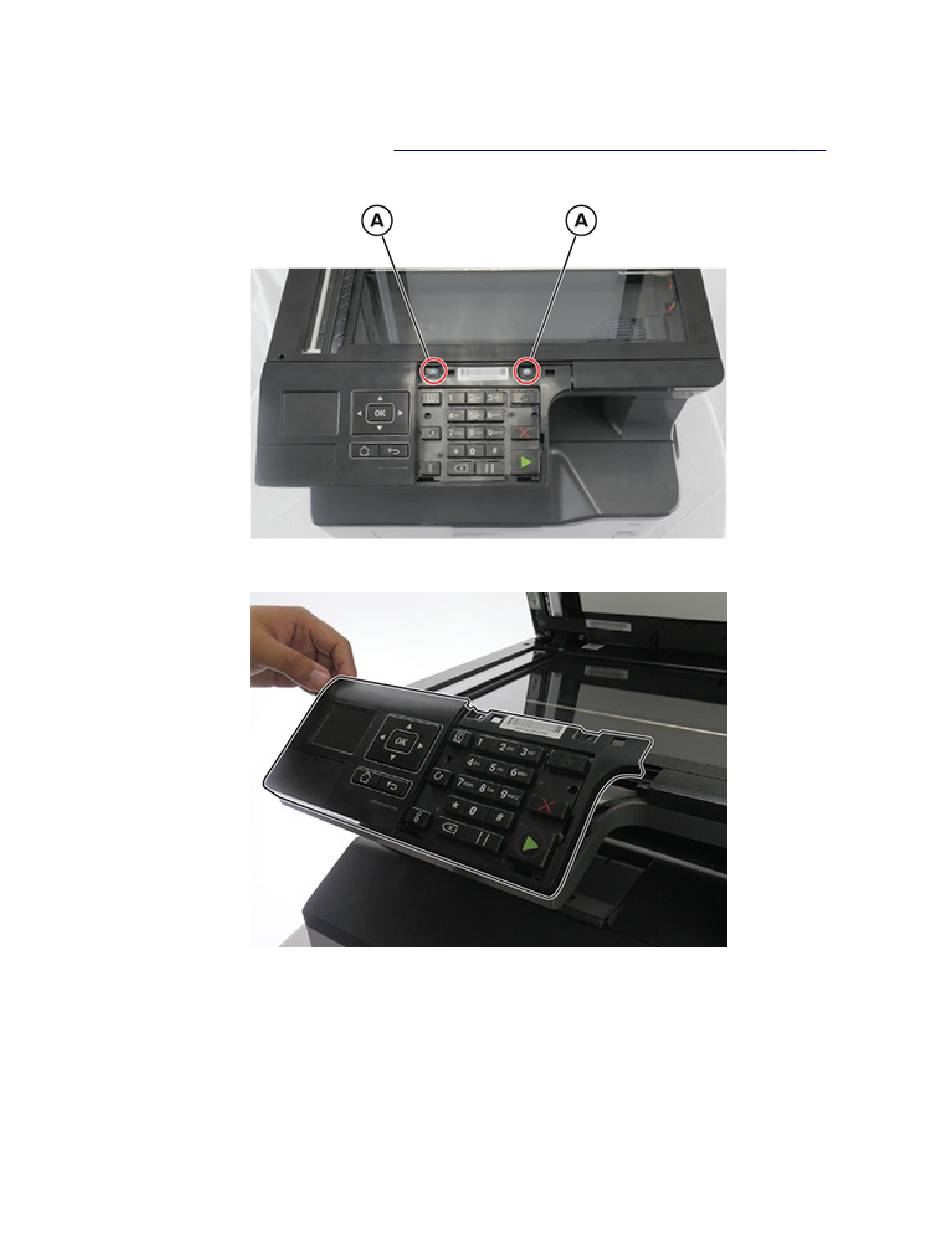

Control panel assembly (MX321) removal

1
Open the ADF.
2
Remove the numeric keypad cover. See
3
Remove the two screws (A).
4
Carefully disengage the assembly from the rear cover.
"Numeric keypad cover (MX321) removal" on page
Parts removal
245
7017-2xx, -4xx, -6xx
241.
