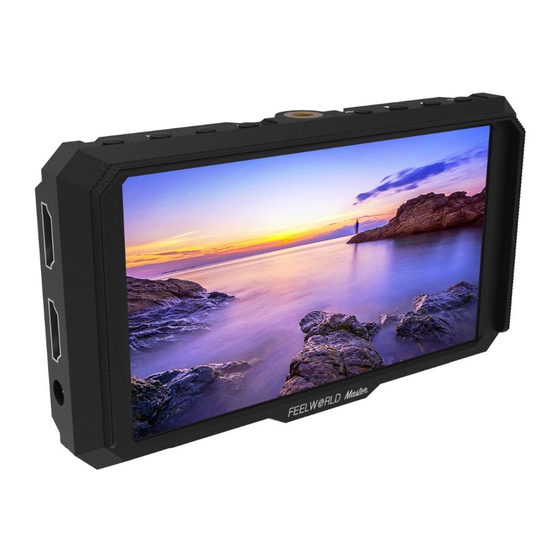

- Page 1 5" Full HD On-camera Monitor Support 4K HDMI Input/ Output Guide Manual Thank you for choosing Feelworld monitor. Please read this manual carefully before you use.
-
Page 3: Table Of Contents
Contents Caring For Your MA5 Monitor What Should Be In The Box Product Description Button Instruction Port Instruction (Bottom) Port Instruction (Left) Power Input Mount Points Sunshade Menu Operation Instruction Menu Function Instruction Technical Parameters Trouble Shooting... -
Page 5: Caring For Your Ma5 Monitor
CARING FOR YOUR MA5 MONITOR Caring For Your MA5 Monitor • Do not attempt to disassemble the monitor. Doing so voids warranty. • Water damage is not covered by warranty, but taking the right precautions when a water event occurs can sometimes preserve unit functionality. -
Page 6: What Should Be In The Box
WHAT SHOULD BE IN THE BOX What Should Be In The Box • MA5 Monitor • HDMI to Mini HDMI Cable • HDMI to Micro HDMI Cable • Tilt Arm • Carrying bag • Sunshade • Manual... -
Page 7: Product Description
PRODUCT DESCRIPTION Product Description • Front Panel • Back Panel... -
Page 8: Button Instruction
PRODUCT DESCRIPTION • Button Instruction Function when OSD is not Button Function when OSD is displayed displayed Custom button 1 Custom button 2 Volume reduction Value adjustment of selected item Volume increase Value adjustment of selected item MENU OSD Main menu display Back to previous OSD menu Item selection of next menu Item selection of previous menu... -
Page 9: Port Instruction (Bottom)
PRODUCT DESCRIPTION • Port Instruction (Bottom) DC OUT 8.4V : DC power output interface, as the output polarity This barrel can power your camera with an optional DC adapter (NP-FW50 for Sony, LP-E6 for Canon and DMW-BLF19 for Panasonic). More adapters are coming soon. : 3.5mm Earphone port output USB UPGRADE : Firmware USB upgrade port... -
Page 10: Port Instruction (Left)
PRODUCT DESCRIPTION • Port Instruction (Left) HDMI IN : V1.4, HDMI signal input, up to 4K@30Hz. HDMI OUT : V1.4, HDMI signal output, up to 4K@30Hz. DC IN 12V : DC power input interface, as the input polarity... -
Page 11: Power Input
PRODUCT DESCRIPTION • Power Input (1) The rear cover of the monitor is equipped with F970 and E6 convertible battery plate, which is applicable to batteries of F970 series and E6 series. (2) Barrel (5.5mm outer, 2.1mm inner) at the right side of the monitor, DC 7~24V Input. -
Page 12: Mount Points
PRODUCT DESCRIPTION • Mount Points (1) There are (3) ¼-20 thread points (top, bottom & right side) can be easily connected to the hot shoe mount, tripod and other brackets. -
Page 13: Sunshade
PRODUCT DESCRIPTION • Sunshade ① Velcro ② Sunshade Frame (Paste Velcro) ③ Sunshade ④ Sunshade Application ① Attach the Velcro (hook side) to the outside of the sunshade ③ frame of the monitor, open the sunshade , and align the Velcro (loop side) on the inner side of the sunshade with the ②... -
Page 14: Menu Operation Instruction
MENU OPERATION INSTRUCTION Menu Operation Instruction After correctly connect to the power supply or battery, the indicator will be in Red. Then switch on the monitor, it will become Yellow. Input HDMI signals, it will turn Green. • Press “MENU” button to enter OSD main menu, and press “ ”... -
Page 15: Menu Function Instruction
MENU FUNCTION INSTRUCTION Menu Function Instruction • Image Pic. Mode Dynamic, Standard, Mild, User Brightness 0~100 Contrast 10~100 Image Saturation 0~100 Sharpness 0~100 Color Temp 6500, 9300, User Tint 0~100... - Page 16 MENU FUNCTION INSTRUCTION • Setting English, 简体 中文 , Español, Português, Language Français, Nederlands, Deutsch, 日本語 , 繁體中文 Aspect Ratio Auto, 4:3, 16:9, Just Scan, Panorama, P2P White Screen, Blue Screen, Red Screen, No Signal Green Screen, Black Screen OSD Trans. Off, Low, Middle, High OSD H 0~100...
- Page 17 MENU FUNCTION INSTRUCTION • Zoom Nine Grid Zoom Off, On Zoom Off, 4X, 9X, 16X Zoom Off, Mode1, Mode2 (Zoom All, L/ Zoom Mode R Zoom and U/D Zoom can be customized) Scan Mode Under Scan, Over Scan...
- Page 18 MENU FUNCTION INSTRUCTION • Function Center Marker Off, On Safe Frames Off, 80%, 85%, 90%, 96%, 93%, 2.35:1 Nine Grid Off, On Image Freeze Off, On Image Flip Off, H_V Flip, H Flip, V Flip OSD Flip Off, On Anamorphic Off, 1.3X, 2.0X, 2.0X MAG, User Function Anamorphic nX...
- Page 19 MENU FUNCTION INSTRUCTION Embedded Audio Off, On Off, 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, Ratio Marker 2.35:1 Function Mark Color Red, Green, Blue, Black, White Mark Width Modified Mark • Custom Button Setting F1~F2 ★ Users can self-define maximum 2 shortcut keys F1 and F2 on the panel.
-
Page 20: Technical Parameters
TECHNICAL PARAMETERS Technical Parameters Panel Size 5.0 inch IPS Resolution 1920 x 1080 pixels Pixel Density 440 PPI Dot Pitch 0.0571 (H) x 0.019 (W) mm Aspect Ratio 16:9 Brightness 450cd/m Contrast 1000:1 Viewing Angle 80°/80° (L/R) 80°/80° (U/D) Backlight Input HDMI Output... - Page 21 TECHNICAL PARAMETERS 480i /480p /576i /576p 720p (60/59.94/50/30/29/25/24/23.98) 1080i (60/59.94/50) HDMI Support Format 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz) DCI 4K 4096×2160p (24Hz) Power Input Voltage DC: 7~24V Power Consumption ≤8W Unit Size (mm) 136Lx75Hx27D (mm) Unit Weight 139.5g Mount Points (3) ¼-20 thread points (top, bottom &...
-
Page 22: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting • Only black and white or monochrome picture display: ① Please check if Saturation, Brightness and Contrast are properly setup or not. ② Please check if "Check Field" is in Black and White or other monochrome image condition. •... - Page 23 TROUBLE SHOOTING ② Check the HDMI input and ensure there is HDMI signal. ■ If you have more questions, please contact Feelworld at support@feelworld.cn ★ As we are improving product features and product performance, so if there is any change on the specification...
