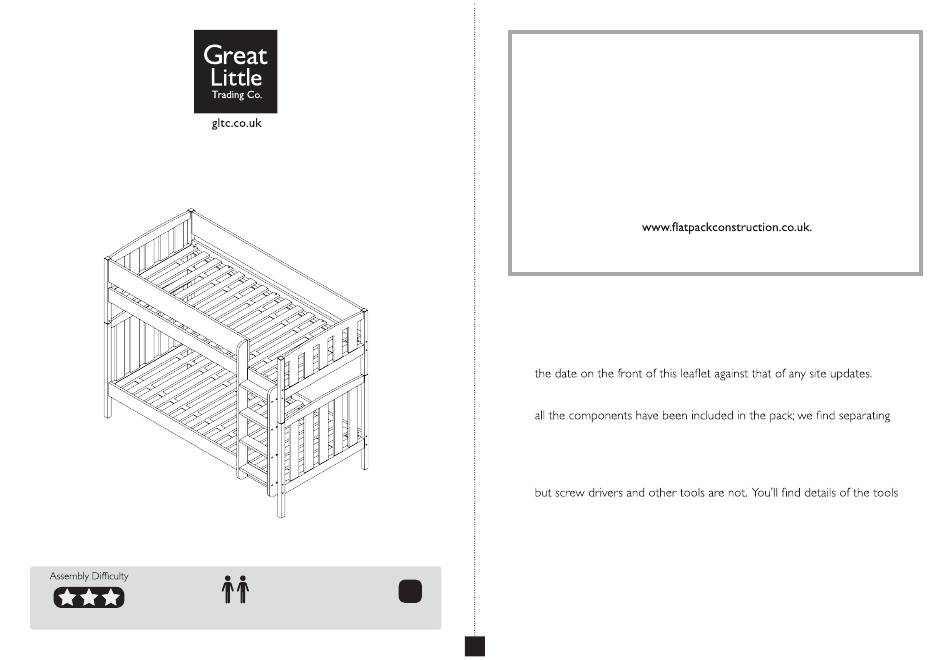

Phoenix Bunk Bed
two-person job
easy - medium -
hard
Thank you for shopping with GLTC, we hope you enjoy having this
product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling this
item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail through
the whole process. But if it all feels a bit too much like hard work, then
we do have an assembly company we can recommend: the Flatpack
Construction Company offers a nationwide service and can be contacted
on 0843 289 4951 or
Good luck!
A few important pointers before you start:
•
It might be worth checking on our website that there are no updates
or revisions to these instructions (if we have had helpful feedback from
other customers we pass it on via the product web page). Simply check
•
Please read the instructions right through before you start, and check that
all the hardware into piles makes it easier to be sure that everything is
present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
you need at the beginning of the instructions.
•
It's a good idea to build the unit in the room where you are going to be
using it, to avoid the need to move it after it's been assembled.
•
Do not throw away any packing materials until assembly is complete, just
V3
in case you accidentally discard smaller parts and hardware.
09/01/2018
1
Advertisement
Table of Contents
Related Manuals for Great Little Trading Phoenix
Summary of Contents for Great Little Trading Phoenix
- Page 1 Phoenix Bunk Bed Hopefully our efforts will have been worthwhile and you’ll sail through the whole process. But if it all feels a bit too much like hard work, then...
- Page 2 • DO NOT use power tools in the assembly of this product as there is a risk Safety Warnings: of over-tightening and consequently splitting of the wood. • IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE • Assemble and use on a flat and level surface. WARNING! Not suitable for children under 4 years.
- Page 3 Hardware Checklist Component Checklist 16x Barrel Nut 6x Threaded Bar 16x Hex Bolt (M8) 80mm (M8) 90mm (M8) 2x Upper Bunk Bed Ends 2x Lower Bunk Bed Ends 6x Half Moon 6x Nut 1x Spanner Washer (M8) 4x Connector 12x Hex Bolt 16x Hex Bolt 15mm (M6) 65mm (M6)
- Page 4 Assembly: Phoenix Bunk Bed STEP 1: STEP 2: 2 people required Assemble the lower bunk using 2 x lower bunk bed Install 4 x barrel nuts (#2) into the open ends of Hardware for Step 1: Hardware for Step 2:...
- Page 5 Assembly: Phoenix Bunk Bed Hardware for Step 4: 2x #4 Half Moon Washer 2x #5 Nut STEP 4: 2 people required Slide the long safety rail (D) onto the installed threaded rods on the low bed ends, one end at a time - this will require 2 people.
- Page 6 Assembly: Phoenix Bunk Bed Hardware for Step 5: Hardware for Step 6: 4x #2 Barrel Nut 4x #2 Barrel Nut 4x #1 Hex Bolt 90mm 4x #1 Hex Bolt 90mm STEP 5: STEP 6: 2 people required 2 people required...
- Page 7 Assembly: Phoenix Bunk Bed Hardware for Step 7: Hardware for Step 8: 4x #7 Connector Rod 2x #4 Half Moon Washer 2x #5 Nut 4x #13 Plastic Cap STEP 7: STEP 8: 2 people required Secure the other side of the long safety rail (D) with 2 x half moon washer (#4) Install 4 x connector rods (#7) into the top of the bedposts of the assembled and 2 x nut (#5).
- Page 8 Assembly: Phoenix Bunk Bed Ladder built to fit on left-hand side Ladder built to fit on right-hand side STEP 9: STEP 10: Hardware for Step 9: Lock the upper bunk onto the lower bunk using 4 The ladder can be built to fit either side of the bunk. Decide which side you x bolts (#8) and tighten with allen key.
- Page 9 Assembly: Phoenix Bunk Bed Hardware for Step 10: 16x #10 Barrel Nut 16x #9 Hex Bolt 65mm Showing construction of ladder for left-hand side placement Completed ladder for right-hand side placement STEP 10 continued: To build the ladder install the 16 x barrel nuts (#10) into the underside of the steps (H).
- Page 10 Assembly: Phoenix Bunk Bed STEP 12: Secure the ladder hooks on long side of the ladder Hardware for Step 12: to the upper bunk side rails with 1 x crosshead bolt (#8) and 1 x washer (#14). Then secure to the...
- Page 11 Assembly: Phoenix Bunk Bed Hardware for Step 15: STEP 14: STEP 15: 2x #4 Half Moon Washer Slide the short safety rail (E) onto the threaded Secure the short safety rail (E) to the bed post Hardware for Step 14: rods with the hardware holes facing the inside with 2 x half moon washer (#4) and 2 x nut (#5).
- Page 12 10 x hex bolts (#11) and tighten with allen key. Note: Start away from ladder. Hex Bolts #12 only used for building single beds. Repeat for lower bunk. 20x #11 Hex Bolts 30mm 2x #12 Hex Bolts 15mm Your Phoenix Bunk is now ready.
- Page 13 Converting the bunk bed to single beds STEP 2: Assemble a single bed using 1 x lower bunk bed end (A) and 1 x upper bunk bed end (B). Install 2 x barrel nuts (#2) into 1 x side rail (C) and then position the side rail onto 1 x upper bunk bed STEP 1: end (B).
- Page 14 Converting the bunk bed to single beds Hardware for Step 3: STEP 3: 2 people required Install 4 x barrel nuts (#2) into the open ends of the STEP 4: 4x #2 Barrel Nut side rails (C), then with a second person, lift the side Hardware for Step 4: rails and guide onto 1 x upper bunk bed end (A).
- Page 15 Install the webbed slats and secure with 10 x bolts (#11) per bed using allen key. Repeat steps 1-5 to assemble the second single bed. 20x #11 Hex Bolts Copyright© 2017 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
