E004-0205/E197-0008/E263-0000/E808-000x/E840-0001 caused by
damaged coating of the fixing drawer cable
[Symptom]
E004-0205/E197-0008/E263-0000/E808-000x/E840-0001 may occur in the main body earlier than the countermeasure cut-in
serial numbers in factory mentioned below. (x=4 or 7)
- E004-0205 : Fixing Power Supply error (Detect that the Fixing Main Thermistor is not connected.)
- E197-0008 : Serial communication error
- E263-0000 : Current Sensor error
- E808-0004 : Fixing Power Supply error (Detected OFF with output 12 V of the Main Driver PCB.)
- E808-0007 : Fixing Power Supply error (An error in voltage inside the Fixing Power Supply PCB was detected.)
[Cause]

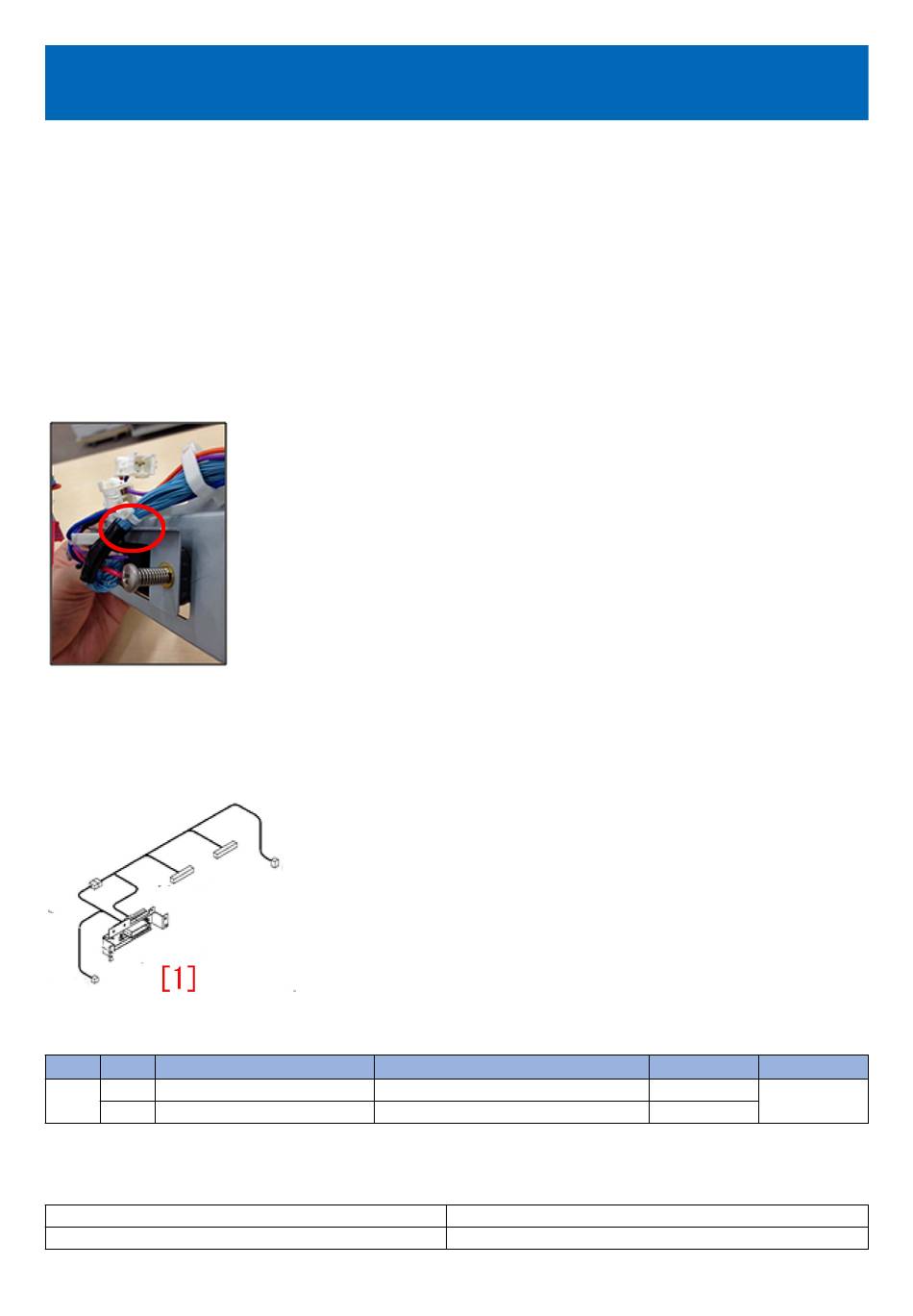

If a vibration is loaded to the fixing drawer cable (FM3-7351) on the back side of the main body or if the fixing/feeding assembly
is removed and installed while the fixing drawer cable (FM3-7351) is pinched by the duct, the coating of the cable may be damaged,
and this will lead to the above mentioned symptoms.
[Service work]
When the aforementioned symptoms have occurred and if the device will not be restored even after performing the usual error
release operation, check for the wire pinching on the fixing drawer cable. If the cable is damaged, prepare and replace with the
new type fixing drawer cable (FM3-7351-040) [1].
[Service parts]
No.
1 Old FM3-7351-030
New FM3-7351-040
[Countermeasure cut-in serial numbers in factory]
- iR-ADV 6075/8105/6275/8205 Series : No implemented due to production discontinuance.
Model
iR-ADV 8505 230V AS
Part Number
CABLE, FIXING DRAWER
CABLE, FIXING DRAWER
Description
Serial number
SWD00779
76
Q'ty Fig.No.
1 -> 0 104A
0 -> 1
