- Page 1 ADVENTURE -MANUAL-...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Included In The Box Features And Specs Assembly Safe Riding Charging Battery How To Use The Bike Controls A. Gears B. LCD Display C. Turning the Bike On and Off D. Pedal Assist E. Speedometer F. Walk Mode G. -
Page 3: Introduction
In order to avoid danger caused by collisions, falls, and loss of control, please use caution and learn how to ride the Adventure safely. Jetson and au- thorized dealers cannot be held liable for injury or damage caused from riding the Adventure. -
Page 4: Included In The Box

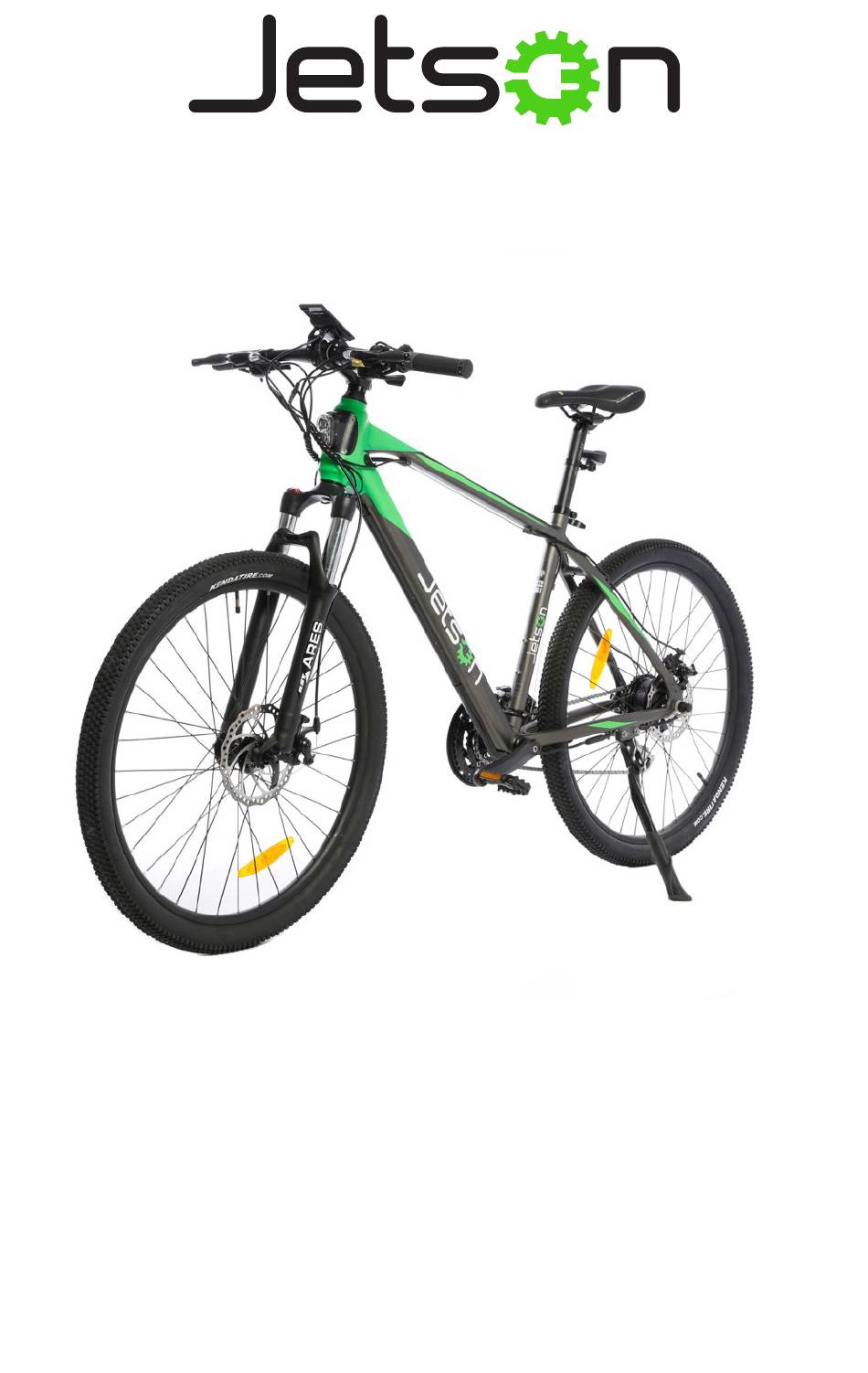

INCLUDED IN THE BOX Front Fork with Hydraulic Rear LED Light Front LED Headlight Seat Clamping Lever Handlebar Seat Tube Handlebar Stem Rear Derailleur and Freewheel Frame Front Derailleur and Freewheel Charging Port Pedals Controller Concealed Battery Saddle Post Front Wheel Saddle... -
Page 5: Lcd Display
Right Brake Lever Right Shifter (7 Gears) Left Shifter (3 Gears) Down Button Up Button FEATURES AND SPECS MODEL: ADVENTURE WHEEL DIAMETER: 27.5” MOTOR: 250w MAX SPEED: US: 20 MPH UK/EUROPE: 15.5 MOTOR RATED RPM: 195 CHARGER: 110-240V MAX RANGE: 30-35 MILES... - Page 6 Pedals. Please refer to the diagrams on pages 4 and 5 while assem- bling your Adventure. If you are having difficulty assembling the Adventure, please call our customer service or take your Adventure to a local bike shop. Assembling the Handlebar •...
- Page 7 • Place the Handlebar into the Handlebar Stem and screw the 4 bolts in using the provided Allen Key. Please be careful not to scratch the LCD Screen. • In order to center the Handlebar, make sure the ridge markings are covered by the Handlebar Stem.
- Page 8 Assembling Disc Brake • Attach the Disc Brake to the Front Fork by screwing in the two bolts. Bolts ATTACHING THE FRONT WHEEL • Twist the cap off the Quick Release Clamping Lever and remove it from the Wheel. • Place the Quick Release Clamping Lever to the side.
- Page 9 Disc. •Please be careful not to bend the Disc Brake. If you find that it will not go in smoothly, please call us for assistance or bring the Adventure to your local bike shop. • Now that the front Tire is fit to the Front Fork, slide the Quick Release Clamping Lever through the Front Wheel.
- Page 10 • Make sure the Quick Release Clamping Lever is secure. Push Lever in • Make sure the Brake is hooked onto the Disc and working properly.
- Page 11 ASSEMBLING PEDALS • There are 2 Pedals. Please look at the inside of each Pedal and see which is labeled R (right) and L (left). • To connect the Pedals to the bike, place L into the Left tube and R into the Right tube (left and right directions are as though you are sitting on the bike).
- Page 12 ATTACHING THE SADDLE • Slide the Saddle Post into the Saddle Tube. • Align the Saddle with the Frame to make sure it is straight. • Tighten the Saddle Clamping Lever. • The height of the Saddle should not be pulled higher than the safety tick marks on the Saddle Post.
- Page 13 Before your first ride you must fully charge the Adventure - charge for 12 hours for the first 3 times you use it. The Charging Port is located on the left side of the frame near the Handlebar Stem (see digram on P.
-
Page 14: Turning The Bike On And Off
Adventure. GEARS The Adventure is a 21-speed e-bike. There are 3 gears in the front and 7 in the rear – change gears by using the Shifters on the handlebar. Only shift gears when pedaling. These gears do not require battery power, and if the battery runs out, you can still use these gears. -
Page 15: Speedometer
The Pedal Assist mode provides power and propels the bike as you pedal. A low Pedal Assist level (1-3) will require effort from you to pedal, a medium Pedal Assist level (4-6) will require some effort from you to pedal, and a high Pedal Assist level (7-9) will require minimal effort from you. -
Page 16: Turning On The Front Led Headlight And Rear Led Light
TURNING ON THE FRONT LED HEADLIGHT AND REAR LED LIGHT Front LED Headlight: Press and hold the Up Button to turn on the Front LED Headlight and the LCD Display Backlight. When the Front LED Headlight and LCD Display Backlight are on, you will see a headlight symbol on the LCD Display. -
Page 17: Showing The Mileage
SHOWING THE MILEAGE Press the Power Button (M) to cycle through the mile indicator in the following order: ERROR CODES If there is an error with the function of the bike an error message will be dis- played on the LCD Display along with an error code. See the table below for error code definitions. -
Page 18: Settings
Frequent starting and stopping, acceleration, and deceleration will reduce it. SPEED LIMIT The top speed of the Adventure is set to 20 mph (US) and 15.5 mph (UK/ EUROPE) to obey local laws. WEIGHT LIMIT The maximum load is 300 lbs. Going above the maximum weight limit can... -
Page 19: Safety Warnings
• Do not ride after drinking or taking prescription medication. • Do not carry items when riding. • Prior to each ride, inspect each part of the Adventure to ensure it has been maintained correctly and is functioning properly. • Always give way to pedestrians. - Page 20 ADDITIONAL OPERATION CAUTIONS Do not lift the Adventure off the ground while it is in operation and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the Adventure, and do not jump while using it.
-
Page 21: Warranty
• Jetson® makes no warranty with respect to products or trade accessories not made by Jetson®, including, but not limited to, motors, tires, wheels, and batteries, such products or trade accessories, such items being subject to the original manufacturer’s warranty, if any. -
Page 22: Product Registration
For myself For my child For my grandchild Gift for someone else (adult) Gift for someone else (child) How did you hear about the Adventure? ______________________________________________ _____________________________________________________________________________________ Complete this form and mail it to: Attention: Product Registration Jetson Electric Bikes... - Page 24 ADVENTURE...
