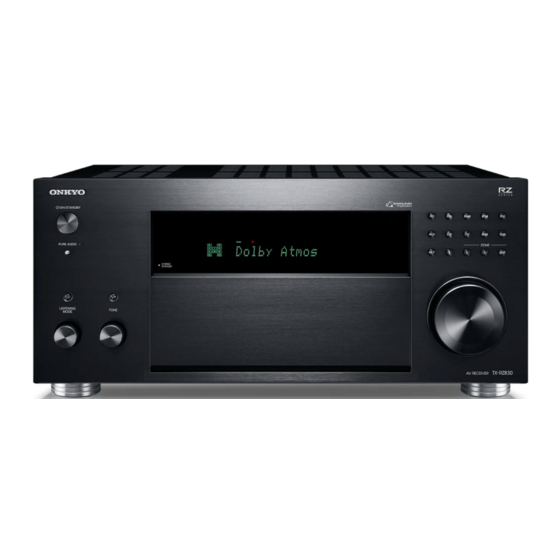

AV RECEIVER
TX-RZ830
Instruction Manual
En
Table of contents
Connections
- Connecting Speakers
Playback
Setup
Troubleshooting
Appendix
Supplementary Information
Front Panel≫ Rear Panel≫ Remote≫
≫
≫
≫
≫
≫
≫
≫
≫

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-RZ830 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo TX-RZ830

Summary of Contents for Onkyo TX-RZ830

  • Page 1 AV RECEIVER ≫ Table of contents TX-RZ830 ≫ Connections Instruction Manual ≫ - Connecting Speakers ≫ Playback ≫ Setup ≫ Troubleshooting ≫ Appendix ≫ Supplementary Information Front Panel≫ Rear Panel≫ Remote≫...

  • Page 2: Table Of Contents

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box Connecting an AV Component in a Separate Room (Multi-zone Connection) Part Names Connecting a TV (ZONE 2) Front Panel Connecting a Pre-main Amplifier (ZONE 2) Display Connecting a Pre-main Amplifier (ZONE 3) Rear Panel Connecting Antennas Remote Controller...
  • Page 3 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Convenience functions Playing Back FlareConnect Adjusting the tone Playing Back Sleep Timer USB Storage Device Listening Mode Basic Operations Selecting a Listening mode Device and Supported Format Listening Mode Effects Playing back files on a PC and NAS (Music Server) Selectable listening modes Setup Windows Media...

  • Page 4: Troubleshooting

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Firmware Update Updating Function on This Unit Updating the Firmware via Network Updating via USB Initial Setup with Auto Start-up Wizard Operations Troubleshooting When the unit is operating erratically Troubleshooting Appendix About HDMI General Specifications Front Panel≫...

  • Page 5: What's In The Box

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box 1. Main unit (1) 2. Remote controller (RC-911R) (1), Batteries (AAA/R03) (2) 3. Speaker setup microphone (1) • Used during Initial Setup. 4. Indoor FM antenna (1) 5. AM loop antenna (1) 6.

  • Page 6: Part Names

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Part Names Front Panel bn bo bp bq br bsbt ck cl cmcn co cp cq ❏ For details, see ( Front Panel≫ Rear Panel≫ Remote≫...
  • Page 7 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ON/STANDBY button 17. SETUP button: You can display advanced setting items on the TV and the p109) display to have a more enjoyable experience with this unit. ( p125) 2. PURE AUDIO button/indicator: Switches to the Pure Audio mode. ( 18.

  • Page 8: Display

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Display 1. Speaker/Channel display: Displays the output channel that corresponds to the 5. Blinks when muting is on. selected listening mode. 6. Displays various information of the input signals. 2. Lights in the following conditions. •...

  • Page 9: Rear Panel

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Rear Panel 90° 180° ❏ For details, see ( p10) Front Panel≫ Rear Panel≫ Remote≫...

  • Page 10: Power

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio 20. ZONE 2 PRE/LINE OUT jacks: Output audio signals with an analog audio signals with a digital optical cable or digital coaxial cable. cable connected to a pre-main amplifier or a power amplifier in a separate 2.

  • Page 11: Remote Controller

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Remote Controller ON/STANDBY button 2. Input selector buttons: Switches the input to be played. 3. Q (QUICK MENU) button: Pressing this button during playback can make settings such as "Tone" and "Level" quickly on the TV screen while playing. p148) 4.

  • Page 12: Connections

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connections Connecting speakers Connecting the TV Connecting Playback Devices Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting Antennas Network Connection Connecting External Control Devices Connecting the Power Cord Front Panel≫ Rear Panel≫ Remote≫...

  • Page 13: Connecting Speakers

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting speakers You can select the layout of speakers to be installed from various patterns when using this unit. Use the following flow chart to select the speaker layout that suits your speakers and usage environment.

  • Page 14: Speaker Installation

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Installation „ 5.1 Channel System This is a basic 5.1 Channel System. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
  • Page 15 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System p14) and added surround back speakers. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
  • Page 16 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( p14) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ❏...
  • Page 17 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Front High Speakers/Rear High Speakers This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and Installation Example added front high speakers or rear high speakers combined.
  • Page 18 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Ceiling Speakers Installation Example This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined. By installing such height speakers, when the input format is Dolby Atmos, you can select the Dolby Atmos listening mode which realizes the most up-to-date 3D sound including overhead sound.
  • Page 19 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Dolby Enabled Speakers (Dolby Speakers) This is a system with the basic 5.1 channel system ( p14) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and Installation Example added Dolby enabled speakers (front) or Dolby enabled speakers (surround) combined.
  • Page 20 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System A 7.1.2 Channel System is a speaker layout consisting of the 7.1 Channel System ( p15) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ❏...
  • Page 21 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Front High Speakers/Rear High Speakers This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and Installation Example a powered subwoofer, and added front high speakers or rear high speakers combined.
  • Page 22 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Ceiling Speakers Installation Example This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined.
  • Page 23 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Dolby Enabled Speakers (Dolby Speakers) This is a system with the 7.1 channel system ( p15) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a Installation Example powered subwoofer, and added Dolby enabled speakers (front), Dolby enabled speakers (surround) or Dolby enabled speakers (surround back) combined.
  • Page 24 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System A 5.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 5.1 Channel System ( p14).
  • Page 25 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers *2: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 26 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 27 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3’/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
  • Page 28 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more The width between the rear high speakers should match the one for the front 3´...
  • Page 29 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use top rear speakers at the rear     *4: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 30 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) *3: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 31 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 32 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System A 7.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 7.1 Channel System ( p15).
  • Page 33 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers *2: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 34 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
  • Page 35 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3’/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
  • Page 36 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more ...
  • Page 37 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use top rear speakers at the rear (Example 5) Use Dolby Enabled Speakers (Surround Back) at the rear         *5: 125° to 150° The Dolby enabled speakers are the special speaker that the sound is emitted The top rear speakers are installed on the ceiling at rear of the listening position, toward the ceiling, and have the effect the sound to come from above by...
  • Page 38 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) *4: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
  • Page 39 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 3) Use Dolby Enabled Speakers (Surround) at the rear The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.

  • Page 40: Speaker Connections And "Speaker Setup" Settings

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Connections and "Speaker Setup" Settings Connections Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass „...
  • Page 41 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Connect the Subwoofer a Subwoofer cable Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.
  • Page 42 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have. Next •...
  • Page 43 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Zone 2 Bi-Amp...
  • Page 44 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System (Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 45 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have. Next •...
  • Page 46 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Zone 2 Bi-Amp...
  • Page 47 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System(Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 7.1 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 48 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 49 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Front High Zone Speaker Zone 2...
  • Page 50 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System(Bi-Amping the Speakers) "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1.2 ch < > Subwoofer Height 1 Speaker Height 2 Speaker Front High Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 51 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 7.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 52 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 7.1.2 ch < > Subwoofer Height 1 Speaker Front High Height 2 Speaker Zone Speaker Zone 2...
  • Page 53 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1.4 ch < > Subwoofer Height 1 Speaker Top Middle Height 2 Speaker Rear High Zone Speaker Bi-Amp Select how many speakers you have.
  • Page 54 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System + ZONE SPEAKER MAIN ROOM "Speaker Setup" settings during „ Initial Setup ( p157) Speaker Setup Speaker Channels 5.1.4 ch < > Subwoofer Height 1 Speaker Top Middle Height 2 Speaker Rear High Zone Speaker...
  • Page 55 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System Power amplifier This is an example of combining the top middle speakers at the front and the rear high p157) "Speaker Setup" settings during Initial Setup ( speakers at the rear to the 7.1 Channel System. The height speakers in front can be selected „...
  • Page 56 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System + ZONE SPEAKER MAIN ROOM Power amplifier ZONE 2 MAIN ROOM: This is an example of combining the top middle speakers at the front and the p157) "Speaker Setup" settings during Initial Setup ( rear high speakers at the rear to the 7.1 Channel System.

  • Page 57: Connecting A Power Amplifier

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Power Amplifier Power amplifier You can connect a power amplifier to the unit and use the unit as a pre-amplifier in order to produce a large volume that cannot be output with the unit only. Connect the speakers to the power amplifier.

  • Page 58: Speaker Combinations

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker combinations • Up to two powered subwoofers can be connected in either combination. Speaker SURROUND ZONE 2 (*1) ZONE 3 (*1) FRONT CENTER SURROUND HEIGHT 1 HEIGHT 2 Bi-AMP (*1) Channels BACK (ZONE SPEAKER) (ZONE SPEAKER)

  • Page 59: Connecting The Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the TV Connect this unit between a TV and AV component. Connecting this unit with the TV can output the video and audio signals of the AV component to the TV, or play the audio of the TV on this unit.

  • Page 60: To Arc Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ To ARC TV If the TV supports the ARC (Audio Return Channel) function (*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection.

  • Page 61: To Non-Arc Tv

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ To Non-ARC TV If the TV does not support the ARC (Audio Return Channel) function (*), connect an HDMI cable and digital optical cable. If the TV does not have a DIGITAL OPTICAL OUT jack, you can use an analog audio cable to connect with the AUDIO IN TV jack.

  • Page 62: Connecting Playback Devices

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Playback Devices Connecting an AV Component with HDMI Jack Mounted This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc.

  • Page 63: Connecting An Av Component Without Hdmi Jack Mounted

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component without HDMI Jack Mounted This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too.

  • Page 64: Connecting An Audio Component

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an Audio Component This is a connection example of an audio component. Connect a CD player using a digital optical cable or analog audio cable. You can also connect a turntable that has an MM-type cartridge to the PHONO jack.

  • Page 65: Connecting A Video Camera, Etc

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Video Camera, etc. Connect a video camera, etc. to the AUX INPUT HDMI jack on the front panel using an HDMI cable. Video camera a HDMI cable Front Panel≫ Rear Panel≫ Remote≫...

  • Page 66: Connecting An Av Component In A Separate Room (Multi-Zone Connection)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting a TV (ZONE 2) While a disc is played on a Blu-ray Disc player in the main room (where this unit is located), you can play the video and audio of the same Blu-ray Disc player or another AV component on the TV equipped with an HDMI IN jack in a separate room (ZONE 2).

  • Page 67: Connecting A Pre-Main Amplifier (Zone 2)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 2) You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog cable to connect the ZONE 2 PRE/LINE OUT jack of this unit and the LINE IN jack of the pre-main amplifier or power amplifier in the separate room.

  • Page 68: Connecting A Pre-Main Amplifier (Zone 3)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 3) You can enjoy 2-ch audio in the separate room (ZONE 3) while performing playback in the main room (where this unit is located). Use an analog cable to connect the ZONE 3 PRE/LINE OUT jack of this unit and the LINE IN jack of the pre-main amplifier or power amplifier in the separate room.

  • Page 69: Connecting Antennas

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Antennas Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape. (European, (North Australian and...

  • Page 70: Network Connection

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Network Connection This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the LAN cable as shown in the illustration.

  • Page 71: Connecting External Control Devices

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting External Control Devices IR IN port When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the remote control signal is difficult to reach (due to installation in the cabinet, etc.).

  • Page 72: Trigger Out Jack

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 12V TRIGGER OUT jack When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit.

  • Page 73: Connecting The Power Cord

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the Power Cord Connect the power cord after all the connections are completed. • This unit includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

  • Page 74: Playback

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playback AV Component Playback BLUETOOTH Playback ® Internet Radio Spotify AirPlay ® DTS Play-Fi ® FlareConnect USB Storage Device Playing back files on a PC and NAS (Music Server) Play Queue Listening To the AM/FM Radio Multi-zone Convenience functions Listening Mode...

  • Page 75: Av Component Playback

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ AV Component Playback You can play the audio from AV components, such as Blu-ray disc players through this unit. • When a TV is connected to the HDMI OUT SUB jack, press Q, and select "Other" - "HDMI Out" to switch between MAIN and SUB. Basic Operations Perform the following procedure when this unit is on.

  • Page 76: Bluetooth Playback

    If a password is requested, enter "0000". • This unit is displayed as "Onkyo TX-RZ830 XXXXXX". This display can be changed with the Friendly Name function ( p143) or the Onkyo Controller App (can be used with the iOS or Android™).

  • Page 77: Internet Radio

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio By connecting this unit to an Internet-connected network, you can enjoy Internet radio services, such as TuneIn Radio, etc. • To play Internet radio services, the network needs to be connected to the Internet. •...
  • Page 78 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio Service Menu You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon is displayed while a station is being played. When only this icon is displayed, pressing ENTER will display the menu on the screen.

  • Page 79: Spotify

    ZONE speaker terminals or when the volume of the audio device in a separate room is configured so that its volume can be adjusted on Onkyo TX-RZ830 XXX Devices Available this unit. In any other cases, adjust the volume on the audio device placed in a separate room.

  • Page 80: Airplay

    Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on this unit. Next, click the AirPlay icon iTunes, select this unit from the displayed devices, and start play of a music file. iPhone Onkyo TX-RZ830 XXXXXX e.g., iOS 10 Front Panel≫ Rear Panel≫ Remote≫...

  • Page 81: Dts Play-Fi

    "Group playback" that plays the same music in separate • To use a music streaming distribution service, user registration may be rooms at home. To enjoy this function, download Onkyo Music Control App required. (available on iOS or Android™).

  • Page 82: Flareconnect Tm

    ≫ ≫ FlareConnect When downloading Onkyo Controller App (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can enjoy the group playback that plays the same music on multiple audio products supporting the FlareConnect function. You can play audio from external playback devices...

  • Page 83: Usb Storage Device

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ USB Storage Device You can play music files stored on a USB storage device. Basic Operations Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2.
  • Page 84 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • To return to the previous screen, press • To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files.

  • Page 85: Device And Supported Format

    Apple Lossless (.m4a/.mp4/.M4A/.MP4): • In use of a USB storage device, Onkyo accepts no responsibility whatsoever • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, for the loss or modification of data stored on a USB storage device, or 192 kHz malfunction of the USB storage device.

  • Page 86: Playing Back Files On A Pc And Nas (Music Server)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing back files on a PC and NAS (Music Server) Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported. • The network servers supported by this unit are PCs that incorporate players equipped with the server functions such as Windows Media Player 11 or 12, or NASes ®...

  • Page 87: Playing Back

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2. Start the server (Windows Media Player 11, Windows Media Player 12, or ®...
  • Page 88 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Select the target server with the cursors, and press ENTER to display the Player 12, it must be configured beforehand. items list screen. Setting PC • This unit cannot access pictures and videos stored on servers. 1.
  • Page 89 Contents Connections Playback Setup ≫ ≫ ≫ ≫ – It is playing a music file on a USB storage device. • Depending on the version of Windows Media Player, the names of items to ® select may differ from the above description. ❏...

  • Page 90: Supported Audio Formats

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Supported Audio Formats This unit supports the following music file formats. Remote play of FLAC and Apple Lossless (.m4a/.mp4/.M4A/.MP4): DSD is not supported. • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz •...

  • Page 91: Play Queue

    Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.) When downloading Onkyo Controller App (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can save your favorite...

  • Page 92: Sort And Delete

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ • If there are no tracks on the Play Queue list, only "Play Now " is 3. To delete a track, slide the track to the left until the trash icon changes to " ".

  • Page 93: Listening To The Am/Fm Radio

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening To the AM/FM Radio You can receive AM and FM radio stations on this unit with the built-in tuner. Tuning into a Radio Station Perform the following procedure when this unit is on. Tuning Automatically 1.
  • Page 94 Contents Connections Playback Setup ≫ ≫ ≫ ≫ When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" ( p94). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

  • Page 95: Presetting A Radio Station

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Presetting a Radio Station Registration Procedure You can preset up to 40 of your favorite AM/FM radio stations. After tuning in to the AM/FM radio station you want to register, perform the following procedure.
  • Page 96 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Selecting a Preset Radio Station 1. Press TUNER. 2. Press the cursors to select a preset number. Deleting a Preset Radio Station 1. Press TUNER. 2. Press the cursors to select the preset number to delete. 3.

  • Page 97: Using Rds (European, Australian And Asian Models)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Using RDS (European, Australian and Asian models) RDS stands for Radio Data System, and is a method of transmitting data in FM characters. This is not a malfunction. Also, if the signal from a station is weak, radio signals.

  • Page 98: Multi-Zone

    "BLUETOOTH". You cannot select different stations of AM/FM broadcasts for the main room and separate room. Onkyo Controller App is useful for the multi-zone playback operation. Download Onkyo Controller App (available on iOS or Android™) to a mobile device, such as a smartphone and tablet to use it.
  • Page 99 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Switch remote control mode (ZONE 2) At the time of purchase, the remote controller is in the mode to control playback Setting the ZONE in the main room. To play a source in ZONE 2, set the remote controller to the control mode (ZONE 2) ZONE control mode (ZONE 2).
  • Page 100 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Switch remote control mode (ZONE 3) At the time of purchase, the remote controller is in the mode to control playback Setting the ZONE in the main room. Settings are required to playback a source in ZONE 3. control mode (ZONE 3) When outputting from the speakers: Set "2.

  • Page 101: Playing Back

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back Set the remote controller to the ZONE control mode (ZONE 2/ZONE 3) p99, 100), and then perform the following operations. 1. Point the remote controller at the unit, and press . •...
  • Page 102 Contents Connections Playback Setup ≫ ≫ ≫ ≫ be output only when it is an analog or 2ch PCM audio signal. When the AV component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.

  • Page 103: Convenience Functions

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Convenience functions Adjusting the tone You can adjust the sound quality of the speakers. 1. Press the TONE button on the main unit to select the setting to adjust from "Bass" and "Treble". Bass: Enhances or moderates the low-tone range of the speakers.

  • Page 104: Sleep Timer

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Sleep Timer You can allow the unit to enter standby automatically when the specified time has elapsed. Select the time from "30 min", "60 min" and "90 min". "Off": The unit does not automatically enter standby mode. Press button on the remote controller to set on the Setup menu.

  • Page 105: Listening Mode

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/TV, MUSIC, and GAME. Selecting a Listening mode 1.
  • Page 106 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Checking the input format and listening mode Pressing repeatedly will switch the display of the main unit in the following order. Input source and volume Listening mode Input format The display is switched in a few seconds.

  • Page 107: Listening Mode Effects

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode Effects In alphabetical order region (sound elements for the subwoofer). • To enable transfer of this audio format, connect via a digital cable and set „ AllCh Stereo audio output on the player to Bitstream output. This mode is ideal for background music.
  • Page 108 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ DSD possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. It also supports low bit rates. This mode is suitable for playing sources recorded in DSD. •...
  • Page 109 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Game-Sports audio mixing, and it is characterized by the precise positioning of sounds and the ability to express sound movement. This mode is suitable for sports games. • To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.
  • Page 110 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ T-D (Theater-Dimensional) • Timbre Matching The perception of human ears differs depending on the sound direction. Movie In this mode, you can enjoy a virtual playback of multichannel surround sound theaters have many surround speakers installed, so they are excellent at even with only two or three speakers.
  • Page 111 Contents Connections Playback Setup ≫ ≫ ≫ ≫ THX Loudness Plus is set to a level suited to the playback of music, and Timbre Matching is enabled. – THX Sel Cin (THX Select Cinema): The THX Select Cinema mode provides a high-quality surround sound experience by expanding movie sources recorded in 5.1ch for 7.1ch playback.

  • Page 112: Selectable Listening Modes

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Selectable listening modes „ MOVIE/TV button You can select a variety of listening modes Input Format Listening Mode according to the audio format of the signal to be Multich PCM Direct input. Input Format Listening Mode Multich...
  • Page 113 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct Direct • When the sampling rate *1 *2 *1 *2 *1 *2 is 11.2 MHz you can DSur DSur DSur only select the Direct...
  • Page 114 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct DTS 96/24 Direct DTHD DTHD DTS 96/24 *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Cinema...
  • Page 115 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Direct DTS-HD HR Direct DTS-HD MSTR Direct DTS Express DTS-HD HR DTS-HD MSTR *1 *2 *1 *2 *1 *2 DSur DSur DSur...
  • Page 116 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ MUSIC button Input Format Listening Mode Input Format Listening Mode DTS-ES Direct Multich PCM Pure Audio Input Format Listening Mode Direct Analog Pure Audio Stereo ES Matrix Direct ES Discrete Multich Stereo DSur DSur...
  • Page 117 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Pure Audio Pure Audio Pure Audio • When the sampling rate Direct Direct Direct is 11.2 MHz you can Stereo Stereo Stereo only select the Direct...
  • Page 118 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Pure Audio Pure Audio DTS 96/24 Pure Audio DTHD Direct Direct Direct Stereo Stereo Stereo DTHD DTS 96/24 *1 *2 *1 *2 *1 *2 DSur...
  • Page 119 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Pure Audio DTS-HD HR Pure Audio DTS-HD MSTR Pure Audio Direct Direct Direct Stereo Stereo Stereo DTS Express DTS-HD HR DTS-HD MSTR *1 *2...
  • Page 120 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ GAME button Input Format Listening Mode Input Format Listening Mode DTS-ES Pure Audio Multich PCM Direct Input Format Listening Mode Direct Multich Analog Direct Stereo DSur DSur DTS Neural:X DTS Neural:X ES Matrix THX Games THX Games...
  • Page 121 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct Direct • When the sampling rate *1 *2 *1 *2 *1 *2 is 11.2 MHz you can DSur DSur DSur only select the Direct...
  • Page 122 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode Direct Direct DTS 96/24 Direct DTHD DTS 96/24 DTHD *1 *2 *1 *2 *1 *2 DSur DSur DSur DTS Neural:X DTS Neural:X DTS Neural:X THX Games...
  • Page 123 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode Input Format Listening Mode Input Format Listening Mode DTS Express Direct DTS-HD HR Direct DTS-HD MSTR Direct DTS Express DTS-HD HR DTS-HD MSTR *1 *2 *1 *2 *1 *2 DSur DSur DSur...
  • Page 124 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Format Listening Mode DTS-ES Direct ES Matrix ES Discrete DSur DTS Neural:X THX Games Game-RPG Game-Action Game-Rock Game-Sports AllCh Stereo Full Mono This can only be selected when no surround back speaker is connected. Surround back speakers need to be installed.

  • Page 125: Setup Menu

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setup Menu Menu list You can configure advanced settings to have a more enjoyable experience with this unit. For operation details, refer to "Menu operations". ( p127) 1. Input/Output 1. TV Out / OSD Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.
  • Page 126 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source 1. IntelliVolume Adjust the volume level when there are differences in volume level among multiple devices p139 connected to this unit. 2. Name Edit Set an easy name for each input. p139 Audio Select Select the priority for input selection when multiple audio sources are connected to one input...

  • Page 127: Menu Operations

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Menu operations Use the on-screen displays (OSD) that appear on the TV to make the settings. Press on the remote controller to display the Setup menu. Setup 1. Input/Output Assign 1. TV Out / OSD 2.

  • Page 128: Input/Output Assign

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. Input/Output Assign Setting Item Default Value Setting Details OSD Language English Select the on-screen display language from the „ 1. TV Out / OSD following. (North American models) English, German, French, Make settings for TV output and On-Screen Displays (OSD) that appear on the Spanish, Italian, Dutch, Swedish (European, Australian and Asian models) English,...
  • Page 129 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. HDMI Input Setting Item Default Value Setting Details "HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Change input assignment between the input selectors and HDMI IN jacks. Assign a desired HDMI IN jack to the TV button. If you do not assign a jack, select "---".
  • Page 130 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Video Input Setting Item Default Value Setting Details PHONO "COMPONENT 1", "COMPONENT 2": Assign the Change input assignment between the input selectors and COMPONENT VIDEO COMPONENT VIDEO IN jacks to the PHONO IN jacks and the VIDEO IN jacks.
  • Page 131 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 4. Digital Audio Input „ 5. Analog Audio Input Change input assignment between the input selectors and DIGITAL IN COAXIAL/ Change input assignment between the input selectors and AUDIO IN jacks. If you OPTICAL jacks.

  • Page 132: Speaker

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 2. Speaker Setting Item Default Value Setting Details Height 2 Speaker Rear High Set the speaker type if height speakers are „ 1. Configuration connected to the HEIGHT 2 terminals. Select "Front High", "Top Front", "Top Middle", "Top Change the settings of connection environment of the speakers.
  • Page 133 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Bi-Amp Set whether the front speakers are bi-amp Center 80Hz(THX) Select the crossover frequency from "40Hz" to connected. "200Hz" to start outputting frequencies for each "No": When front speakers are not bi-amp channel.
  • Page 134 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Distance Setting Item Default Value Setting Details Surround 80Hz(THX) Select the crossover frequency from "40Hz" to Set the distance from each speaker to the listening position. "200Hz" to start outputting frequencies for each channel.
  • Page 135 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Surround Left 7.0 ft/2.10 m Specify the distance between each speaker and Height 2 Left 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB" the listening position.
  • Page 136 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5. Dolby Enabled Speaker Setting Item Default Value Setting Details Height 1 0.0 dB After selecting the speaker frequency between Change the settings of Dolby Enabled Speakers. "25 Hz" and "16 kHz" with the cursors / , adjust the volume of that frequency between "-6.0 dB"...
  • Page 137 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7. THX Audio Setting Item Default Value Setting Details Loudness Plus When this is set to "On", you can enjoy even subtle Change the THX Audio settings. nuances of audio expression at low volume. This is only available when the THX listening mode is Setting Item Default Value...

  • Page 138: Audio Adjust

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 3. Audio Adjust „ 2. Dolby Change the setting of when Dolby signals are input. „ 1. Multiplex/Mono Setting Item Default Value Setting Details Change the settings of multiplex audio playback. Loudness When playing Dolby TrueHD, enable the dialog Management normalization function which keeps the volume of...

  • Page 139: Source

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source „ 5. Volume Change the Volume settings. „ 1. IntelliVolume Setting Item Default Value Setting Details Adjust the volume level when there are differences in volume level among Volume Display Absolute Switch the volume display between the absolute multiple devices connected to this unit.
  • Page 140 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • This cannot be set if the "NET" or "BLUETOOTH" input is selected. Setting Item Default Value Setting Details „ Audio Select PCM Fixed Mode Select whether to fix input signals to PCM (except multi-channel PCM) when you select "HDMI", Select the priority for input selection when multiple audio sources are connected "COAXIAL", or "OPTICAL"...

  • Page 141: Hardware

    • Setting this to "On" and closing the operation can switch the input of the unit using the remote screen will display the name of the connected controller or the Onkyo Remote app even in the CEC-compatible device and "CEC On" on the standby mode.
  • Page 142 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Network Setting Item Default Value Setting Details Audio TV Out You can enjoy audio through the speakers of the Change the settings of the Network function. TV while this unit is on. •...
  • Page 143 1. Press ENTER to display the Edit screen. Friendly Name Onkyo Change the model name of this unit which is 2. Select a character or symbol with the cursors, TX-RZ830 displayed on the device connected to the network and press ENTER. XXXXXX to an easily recognized name.
  • Page 144 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Bluetooth Setting Item Default Value Setting Details Device Displays the name of the BLUETOOTH-enabled Change the settings for the Bluetooth function. device connected to the unit. • The name is not displayed when "Status" is Setting Item Default Value Setting Details...
  • Page 145 TRIGGER OUT jack. You can enable power link operation when you connect the application such as Onkyo Remote that can control unit and the external devices equipped with 12V trigger input jack.

  • Page 146: Multi Zone

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Multi Zone Setting Item Default Value Setting Details Maximum Volume Off Set the maximum value for Zone 3 to prevent the „ 1. Zone 2 volume from becoming too loud. Select a value from "Off", and "50"...

  • Page 147: Miscellaneous

    Setting Details network function is activated. Remote ID If multiple ONKYO products are installed in the „ 4. Initial Setup same room, select the ID for the remote control used with this unit from "1", "2" and "3" to prevent Make the initial setup from the setup menu.

  • Page 148: Quick Menu

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Quick Menu Menu operations You can quickly adjust the settings you frequently use, such as tone adjustments, etc. You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.
  • Page 149 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ AccuEQ – When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off" AccuEQ Room Calibration: Enable or disable the equalizer function that – When the input signal is DTS:X, and "Dialog Control" is not 0 dB corrects for sound distortion caused by the acoustic environment of the room.

  • Page 150: Web Setup

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Web Setup Menu operations You can make the settings for the network function of this unit using an Internet Network Connection: You can select a network connection method. If you select browser on a PC, smartphone, etc. "Wireless", select an access point from "Wi-Fi Setup"...

  • Page 151: Firmware Update

    In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

  • Page 152: Updating The Firmware Via Network

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Updating the Firmware via Network • Check that the unit is turned on, and the connection to the Internet is secured. • If "Firmware Update" is grayed out and cannot be selected, wait for a while •...
  • Page 153 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • Others: After removing the power plug once, insert it to the outlet, and then start the operation from the beginning. ❏ Updating via USB ( p154) Front Panel≫ Rear Panel≫ Remote≫...

  • Page 154: Updating Via Usb

    ENTER. correctly. * Onkyo will not be liable whatsoever for any loss or damage of data, or storage failure Setup arising from the use of the USB storage device. Please note this in advance.
  • Page 155 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • When "Completed!" is displayed, the update is complete. 8. Disconnect the USB storage device from the unit. 9. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version.

  • Page 156: Initial Setup With Auto Start-Up Wizard

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ Initial Setup with Auto Start-up Wizard Operations When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for TV’s REMOTE startup using simple operations following on-screen guidance.
  • Page 157 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • If you have terminated the Initial Setup halfway, turn this unit to standby mode. • If the power of this unit suddenly turns off, the wires in the speaker cables Then turning the power on again can display the Initial Setup again. have touched the rear panel or other wires, and the protection circuit is The Initial Setup appears on the screen each time the power is turned on working.
  • Page 158 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Once the measurement is completed, it is possible to perform the displayed during network setting. If you agree, select "Accept" and press measurement in 2 additional listening positions. To perform the measurement, ENTER.
  • Page 159 5 seconds, and then plug it back in. • Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

  • Page 160: When The Unit Is Operating Erratically

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ When the unit is operating erratically ❏ Try restarting the unit Restarting this unit may solve the problem. After turning the unit to standby mode, press and hold the ON/STANDBY button of the main unit for at least 5 seconds, and then restart the unit.

  • Page 161: Troubleshooting

    Then, turn the power on again. WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or Onkyo Support. „ Audio • Make sure that the speaker setup microphone is no longer connected.
  • Page 162 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ No sound from a connected player • Change the input selector on this unit to the position of the terminal to which the player is connected. • Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may be off.

  • Page 163: X84; Listening Modes

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Sound suddenly reduces • When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits. „...

  • Page 164: X84; Video

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Video • Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct. • Make sure that none of the connecting cables are bent, twisted, or damaged. •...

  • Page 165: X84; Tuner

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Tuner ❏ Poor reception or much noise • Recheck the antenna connection. p69) • Move the antenna away from the speaker cord or power cord. • Move the unit away from your TV or PC. •...

  • Page 166: X84; Network Function

    • If the PC is downloading or copying large files, the playback sound may be interrupted. ❏ The initial setup of Chromecast built-in cannot be performed on Onkyo Controller App • If you have agreed to the privacy policy that requires agreement to use the Chromecast built-in function during the Initial Setup of this unit, you do not have to agree to the privacy policy on Onkyo Controller App.

  • Page 167: X84; Usb Storage Device

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ USB storage device ❏ USB storage device is not displayed • Check if the USB storage device or USB cable is securely inserted to the USB port of the unit. p83) •...

  • Page 168: X84; Multi-Zone Function (For Compatible Models Only)

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ ❏ Playback sound is interrupted, or communication is not possible • You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to improve visibility, and connect again.

  • Page 169: X84; Display

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Display ❏ The display does not light up • When the Dimmer function is working, the display may go dim or turn off (for compatible models only). Press the DIMMER button, and change the brightness level of the display.

  • Page 170: About Hdmi

    HDCP standards. Operation has been confirmed on the following devices: (As of January 2018) Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand RIHD-compatible players; Toshiba brand players and recorders; Sharp brand players and recorders (when used with a Sharp brand television)
  • Page 171 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Supported Audio Formats – 4K (3840×2160p) 24/25/30Hz, 4K SMPTE (4096×2160p) 24/25/30Hz : RGB/YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit) 2 ch linear PCM: – 4K (3840×2160p) 50/60Hz, 4K SMPTE (4096×2160p) 50/60Hz : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit YCbCr4:2:0 (8 bit) Multi-channel linear PCM: Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,...

  • Page 172: General Specifications

    Contents Connections Playback Setup ≫ ≫ ≫ ≫ General Specifications „ Amplifier Section Tone Control Characteristics (ZONE 2) ±10 dB, 100 Hz (BASS) Rated Output Power (FTC) (North American) ±10 dB, 10 kHz (TREBLE) With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 120 Signal to Noise Ratio watts per channel minimum RMS power, with no more than 0.08% total 106 dB (IHF-A, LINE IN, SP OUT)
  • Page 173 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Network Section „ General Ethernet LAN Power Supply 10BASE-T/100BASE-TX AC 120 V, 60 Hz (North American) Wireless LAN AC 220 - 240 V, 50/60 Hz (Others) IEEE 802.11 a/b/g/n standard Power Consumption (Wi-Fi standard) 850 W (North American)
  • Page 174 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Audio Outputs Supported Deep Color, x.v.Color™, Lip Sync, Audio Return Channel, 3D, 4K, CEC, Analog Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601), Content PRE OUT (FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R, Type, HDR (HDR10, BT.2020, HLG), Dolby Vision SURROUND BACK L/R, 2 SUBWOOFER, HEIGHT 2 L/R) Audio Format...
  • Page 175 SN 29403465_EN (C) Copyright 2018 Onkyo & Pioneer Corporation Japan. All rights reserved. http://www.onkyo.com/privacy/ H1805-0...

This manual is also suitable for:

Tx-rz630

Table of Contents

Save PDF
