Table of Contents

Quick Links

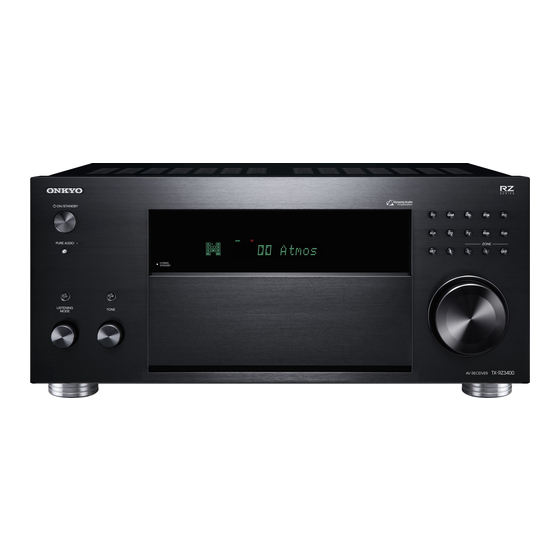

AV RECEIVER

TX-RZ3400

Instruction Manual

Table of contents

Connections

- Connecting Speakers

Playback

Setup

Troubleshooting

Appendix

Supplementary Information

Front Panel≫ Rear Panel≫ Remote≫

≫

Table of Contents

Troubleshooting

Need help?

Do you have a question about the TX-RZ3400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Onkyo TX-RZ3400

Page 1 AV RECEIVER ≫ Table of contents TX-RZ3400 ≫ Connections Instruction Manual ≫ - Connecting Speakers ≫ Playback ≫ Setup ≫ Troubleshooting ≫ Appendix ≫ Supplementary Information Front Panel≫ Rear Panel≫ Remote≫...
Page 2 Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box Connecting an AV Component without HDMI Jack Mounted Additional Function (Firmware Update) Connecting an Audio Component Update Information of the firmware Connecting a Video Camera, etc. Operation of added new functions Connecting an AV Component in a Separate Room Firmware Update Procedure (Multi-zone Connection)
Page 3 ≫ ≫ ≫ Internet Radio Registering This Unit with Amazon Music Playing Back Playing Amazon Music using the Onkyo Controller Spotify Playing Amazon Music using the remote controller AirPlay Connecting the Sonos System for Playback ® Playing Back on This Unit...
Page 4: Troubleshooting
Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode Operations Troubleshooting Selecting a Listening mode Speaker Layouts and Selectable Listening Modes When the unit is operating erratically Listening Mode Effects Troubleshooting Input Formats and Selectable Listening Modes Appendix Inputting Characters Setup Reducing the Power Consumption in Standby State...
Page 5: This Happens, Unplug The Power Cord From The Wall Outlet, Wait At Least
Contents Connections Playback Setup ≫ ≫ ≫ ≫ What’s in the box 1. Main unit (1) 2. Remote controller (RC-979R) (1), Batteries (AAA/R03) (2) 3. Speaker setup microphone (1) • Used during Initial Setup. 4. Indoor FM antenna (1) 5. AM loop antenna (1) 6.
Page 6 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Additional Function (Firmware Update) This unit is equipped with a function to update the firmware via network or USB port when the firmware update is announced after purchase. This enables various functions to be added and operations to be improved. Depending on the manufacturing timing of the product, the firmware may be switched to the updated one.
Page 7 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Firmware Update Procedure The update may take approx. 30 minutes to complete via network or via USB Update port. Existing settings are guaranteed in either updating method. 1. Press When this unit is connected to the network, notifications of firmware updates The Setup menu is displayed on the TV screen.
Page 8 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Press ON/STANDBY on the main unit to turn the unit into standby mode. • Turn off control devices (PC etc.) connected to the network. • Stop an Internet radio, USB storage device, or server content being played. The process is completed, and your firmware is updated to the latest version.
Page 9 Contents Connections Playback Setup ≫ ≫ ≫ ≫ If an Error Message is Displayed Setup If an error occurs, "- Error!" is displayed on the display of the unit. ("" represents an alphanumeric character.) Refer to the following descriptions and 1.
Page 10 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Part Names Front Panel ‰ For details, see ( p11) Front Panel≫ Rear Panel≫ Remote≫...
Page 11 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ON/STANDBY button 13. PHONES jack: Connect headphones with a standard plug (ø1/4″/6.3 mm). p136) 14. MUSIC OPTIMIZER button: Turns on/off the Music Optimizer function that 2. PURE AUDIO button/indicator: Switches to the Pure Audio mode. ( improves the quality of the compressed audio.
Page 12 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Display 1. Speaker/Channel display: Displays the output channel that corresponds to the TUNED: Receiving AM/FM radio. selected listening mode. FM ST: Receiving FM stereo. 2. Lights in the following conditions. SLEEP: Sleep timer is set. ( p174) : Headphones are connected.
Page 13 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Rear Panel            90°  180° STRM BOX CBL / SAT BD / DVD GAME AC INLET ZONE 2 MAIN 5 V / 1 A HDMI IN HDMI OUT ETHERNET...
Page 14 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. COMPONENT VIDEO IN jacks: Input AV component video signals with a subwoofer cable. Up to two powered subwoofers can be connected. You can component video cable. (Compatible only with 480i or 576i resolution.) set the volume levels of the 2 powered subwoofers to different levels.
Page 15 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Remote Controller ON/STANDBY button  2. Input selector buttons: Switches the input to be played.  3. DIMMER button: You can switch the display off or adjust the brightness of the  display in three steps.
Page 16 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 18. CH SEL button: You can check the volume level settings ( p162) for each of the speakers. You can also change the settings with the number 5 cursor buttons 19. M.OPT button: Turns on/off the Music Optimizer ( p181) function that improves the quality of the compressed audio.
Page 17 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connections Connecting speakers Connecting the TV Connecting Playback Devices Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting ZONE B Connecting Antennas Network Connection Connecting External Control Devices Connecting the Power Cord Front Panel≫...
Page 18 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting speakers You can select the layout of speakers to be installed from various patterns when using this unit. Use the following flow chart to select the speaker layout that suits your speakers and usage environment.
Page 19 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Installation „ 5.1 Channel System This is a basic 5.1 Channel System. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
Page 20 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System ( p19) and added surround back speakers. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals.
Page 21 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( p19) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ‰...
Page 22 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Front High Speakers/Rear High Speakers This is a system with the basic 5.1 channel system ( p19) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, Installation Example and added front high speakers or rear high speakers combined.
Page 23 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Ceiling Speakers Installation Example This is a system with the basic 5.1 channel system ( p19) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined. Installing the height speakers will enrich the sound field feeling in the upper space.
Page 24 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Dolby Enabled Speakers (Dolby Speakers) This is a system with the basic 5.1 channel system ( p19) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and Installation Example added Dolby enabled speakers (front) or Dolby enabled speakers (surround) combined.
Page 25 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System A 7.1.2 Channel System is a speaker layout consisting of the 7.1 Channel System ( p20) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types. ‰...
Page 26 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Front High Speakers/Rear High Speakers This is a system with the 7.1 channel system ( p20) consisting of front speakers, a center speaker, surround speakers, surround back speakers and Installation Example a powered subwoofer, and added front high speakers or rear high speakers combined.
Page 27 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Ceiling Speakers Installation Example This is a system with the 7.1 channel system ( p20) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined.
Page 28 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Dolby Enabled Speakers (Dolby Speakers) This is a system with the 7.1 channel system ( p20) consisting of front speakers, a center speaker, surround speakers, surround back speakers and a Installation Example powered subwoofer, and added Dolby enabled speakers (front), Dolby enabled speakers (surround) or Dolby enabled speakers (surround back) combined.
Page 29 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System A 5.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 5.1 Channel System ( p19).
Page 30 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers b: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
Page 31 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use rear high speakers at the rear 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3'/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
Page 32 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3'/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
Page 33 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more ...
Page 34 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use top middle speakers at the rear (Example 4) Use Dolby Enabled Speakers (Surround) at the rear        The Dolby enabled speakers are the special speaker that the sound is emitted c: 65°...
Page 35 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) c: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
Page 36 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use rear high speakers at the rear 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3'/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
Page 37 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System A 7.1.4 Channel System is a speaker layout combining 2 sets of the height speakers, 1 set of left and right at the front and 1 set of left and right at the rear, to the basic 7.1 Channel System ( p20).
Page 38 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Top Front (Example 1) Use top rear speakers at the rear Speakers are used at the front About the top front speakers b: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
Page 39 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use rear high speakers at the rear (Example 4) Use Dolby Enabled Speakers (Surround Back) at the rear 3´ (0.9 m) or more The Dolby enabled speakers are the special speaker that the sound is emitted The width between the rear high speakers should match the one for the front toward the ceiling, and have the effect the sound to come from above by speakers, and they should be installed minimum of 3'/0.9 m higher than the front...
Page 40 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Top Middle Use rear high speakers at the rear Speakers are used at the front About the top middle speakers 3´ (0.9 m) or more The width between the rear high speakers should match the one for the front speakers, and they should be installed minimum of 3'/0.9 m higher than the front speakers, and tilted so they will point toward the listener.
Page 41 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Front High (Example 1) Use rear high speakers at the rear Speakers are used at the front   About the front high speakers   3´ (0.9 m) or more ...
Page 42 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use top middle speakers at the rear (Example 4) Use Dolby Enabled Speakers (Surround) at the rear        d: 65° to 100° The Dolby enabled speakers are the special speaker that the sound is emitted The top middle speakers are installed on the ceiling immediately above the toward the ceiling, and have the effect the sound to come from above by listening position, and the width between the left and right speakers is optimal to...
Page 43 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 5) Use Dolby Enabled Speakers (Surround Back) at the rear     The Dolby enabled speakers are the special speaker that the sound is emitted toward the ceiling, and have the effect the sound to come from above by reflecting the sound on the ceiling.
Page 44 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Combination example when Dolby Enabled (Example 1) Use top rear speakers at the rear Speakers (Front) are used at the front About the Dolby enabled speakers (front) d: 125° to 150° The top rear speakers are installed on the ceiling at rear of the listening position, and the width between the left and right speakers is optimal to match the one for the front speakers.
Page 45 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (Example 2) Use rear high speakers at the rear (Example 4) Use Dolby Enabled Speakers (Surround Back) at the rear 3´ (0.9 m) or more The Dolby enabled speakers are the special speaker that the sound is emitted The width between the rear high speakers should match the one for the front toward the ceiling, and have the effect the sound to come from above by speakers, and they should be installed minimum of 3'/0.9 m higher than the front...
Page 46 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Connections and "Speaker Setup" Settings Connections „ (Note) Speaker Impedance Connect speakers with an impedance of 4 Ω to 16 Ω. „ Connect the Speaker Cables 3/8˝ (10 mm) Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase.
Page 47 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Connect the Subwoofer AC INLET MAIN 5 V / 1 A HDMI OUT 4 K HDR ETHERNET DIGITAL IN ASSIGNABLE BD/ DVD CBL / SAT GAME COAXIAL OPTICAL SUB- PHONO WOOFER FRONT CENTER SURROUND...
Page 48 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 49 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System + ZONE SPEAKER MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during ZONE 2 „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT...
Page 50 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System (Bi-Amping the Speakers) "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT Initial Setup ( p185)
Page 51 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1 Channel System (Bi-Amping the Speakers)+ ZONE SPEAKER MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT...
Page 52 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 53 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System + ZONE SPEAKER (ZONE 2) MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT...
Page 54 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3) MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT...
Page 55 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System(Bi-Amping the Speakers) COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT...
Page 56 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1 Channel System(Bi-Amping the Speakers) + ZONE SPEAKER MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT...
Page 57 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 58 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System + ZONE SPEAKER (ZONE 2) MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT...
Page 59 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3) MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT...
Page 60 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.2 Channel System(Bi-Amping the Speakers) COAXIAL OPTICAL "Speaker Setup" settings during ZONE 2 „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK...
Page 61 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 62 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System + ZONE SPEAKER MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND...
Page 63 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.2 Channel System(Bi-Amping the Speakers) COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT Initial Setup (...
Page 64 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 65 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System + ZONE SPEAKER MAIN ROOM COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND...
Page 66 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5.1.4 Channel System (Bi-Amping the Speakers) COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 PHONO CBL / SAT STRM BOX BD / DVD GAME WOOFER FRONT CENTER SURROUND BACK HEIGHT...
Page 67 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7.1.4 Channel System COAXIAL OPTICAL "Speaker Setup" settings during „ SUB- ZONE B ZONE 3 CBL / SAT STRM BOX BD / DVD GAME PHONO WOOFER FRONT CENTER SURROUND BACK HEIGHT LINE OUT Initial Setup ( p185)
Page 68 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Power Amplifier You can connect a power amplifier to the unit and use the unit as a pre-amplifier in order to produce a large volume that cannot be output with the unit only. GAME Connect the speakers to the power amplifier.
Page 69 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker combinations • Up to two powered subwoofers can be connected in either combination. Speaker SURROUND ZONE 2 (*1) ZONE 3 (*1) FRONT CENTER SURROUND HEIGHT 1 HEIGHT 2 Bi-AMP (*1) Channels BACK (ZONE SPEAKER) (ZONE SPEAKER)
Page 70 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker (Surround Back) When only 1 set of the height speakers is connected, 1 from the height speakers types can be selected. Front Panel≫ Rear Panel≫ Remote≫...
Page 71 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the TV Connect this unit between a TV and AV component. Connecting this unit with the TV can output the video and audio signals of the AV component to the TV, or play the audio of the TV on this unit.
Page 72 Contents Connections Playback Setup ≫ ≫ ≫ ≫ To ARC/eARC TV If the TV supports the ARC (Audio Return Channel) function (*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the AC INLET TV for connection.
Page 73 Contents Connections Playback Setup ≫ ≫ ≫ ≫ To Non-ARC TV If the TV does not support the ARC (Audio Return Channel) function (*), connect an HDMI cable and digital optical cable. If the TV does not have a DIGITAL AC INLET ZONE 2 MAIN...
Page 74 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Playback Devices Connecting an AV Component with HDMI Jack Mounted This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer STRM BOX CBL / SAT BD / DVD...
Page 75 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component without HDMI Jack Mounted This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For STRM BOX CBL / SAT BD / DVD...
Page 76 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an Audio Component This is a connection example of an audio component. Connect a CD player using a digital optical cable or analog audio cable. You can also connect a turntable that CBL / SAT BD / DVD GAME...
Page 77 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Video Camera, etc. Connect a video camera, etc. to the AUX INPUT HDMI jack on the front panel using an HDMI cable. Video camera a HDMI cable Front Panel≫ Rear Panel≫ Remote≫...
Page 78 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting an AV Component in a Separate Room (Multi-zone Connection) Connecting a TV (ZONE 2) While a disc is played on a Blu-ray Disc player in the main room (where this unit is located), you can play the video and audio of the same Blu-ray Disc player or STRM BOX CBL / SAT...
Page 79 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 2) You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable STRM BOX CBL / SAT BD / DVD...
Page 80 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting a Pre-main Amplifier (ZONE 3) You can enjoy 2-ch audio in the separate room (ZONE 3) while performing playback in the main room (where this unit is located). Use an analog audio cable STRM BOX CBL / SAT BD / DVD...
Page 81 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting ZONE B Connecting a Pre-main Amplifier, etc. (ZONE B) While performing playback through speakers (ZONE A) connected to the unit, you can enjoy the audio of the same source at the same time with the pre-main STRM BOX CBL / SAT BD / DVD...
Page 82 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting Antennas Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall STRM BOX CBL / SAT BD / DVD GAME...
Page 83 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Network Connection This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the AC INLET MAIN 5 V / 1 A...
Page 84 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting External Control Devices IR IN port When connecting a remote control receiver unit consisting of an IR Receiver, etc. ZONE 2 GAME SUB- to this unit, operation using the remote controller is possible even if the remote ZONE B ZONE 3 CBL / SAT...
Page 85 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 12V TRIGGER OUT jack When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD ZONE 2 GAME SUB- ZONE B ZONE 3 player to this unit, the device can be turned on or set to standby by interlocking PHONO CBL / SAT STRM BOX...
Page 86 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the Power Cord Connect the power cord after all the connections are completed. • This model includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.
Page 87 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playback AV Component Playback BLUETOOTH Playback ® Internet Radio Spotify AirPlay ® DTS Play-Fi ® FlareConnect USB Storage Device Playing back files on a PC and NAS (Music Server) Play Queue Amazon Music Connecting the Sonos System for Playback Listening To the AM/FM Radio Multi-zone...
Page 88 Contents Connections Playback Setup ≫ ≫ ≫ ≫ AV Component Playback You can play the audio from AV components, such as Blu-ray disc players through this unit. • When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "Quick Menu" ( p180) to switch between MAIN and SUB.
Page 89 If a password is requested, enter "0000". • This unit is displayed as "Onkyo TX-RZ3400 XXXXXX". This display can be p172) or Onkyo Controller changed using the Friendly Name function ( (available on iOS or Android™).
Page 90 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio. • To play Internet radio services, the network needs to be connected to the Internet. •...
Page 91 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Internet Radio Service Menu You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon is displayed while a station is being played. When only this icon is displayed, pressing ENTER will display the menu on the screen.
Page 92 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Spotify Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how. Front Panel≫ Rear Panel≫ Remote≫...
Page 93 Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on this unit. Next, click the AirPlay icon iTunes, select this unit from the displayed devices, and start play of a music file. iPhone Onkyo TX-RZ3400 XXXXXX e.g., iOS 10 Front Panel≫ Rear Panel≫ Remote≫...
Page 94 AirPlay-enabled device. iPhone You can also play the music files on a PC with iTunes (Ver. 12.8 or later) Onkyo TX-RZ3400 XXXXXX equipped. Confirm that this unit and the PC are connected to the same network XXXXXXXX Onkyo beforehand.
Page 95 "Group playback" that plays the same music in separate • To use a music streaming distribution service, user registration may be rooms at home. To enjoy this function, download Onkyo Music Control App required. (available on iOS or Android™).
Page 96 ≫ ≫ FlareConnect When downloading Onkyo Controller (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can enjoy the group playback that plays the same music on multiple audio products supporting the FlareConnect function. You can play audio from external playback devices connected to each product, music from an Internet radio or network audio service such as a music streaming distribution service, and music in the music library on a mobile device.
Page 97 Contents Connections Playback Setup ≫ ≫ ≫ ≫ USB Storage Device You can play music files stored on a USB storage device. Basic Operations Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2.
Page 98 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • To return to the previous screen, press • To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files.
Page 99 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Device and Supported Format USB Storage Device Requirements WAV (.wav/.WAV): WAV files contain uncompressed PCM digital audio. • This unit can use USB storage devices that comply with the USB mass • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, storage class standard.
Page 100 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing back files on a PC and NAS (Music Server) Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported. • The network servers supported by this unit are PCs that incorporate players equipped with the server functions such as Windows Media Player 11 or 12, or NASes ®...
Page 101 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back Perform the following procedure when this unit is on. 1. Switch the input on the TV to the input connected to the unit. TV’s REMOTE 2. Start the server (Windows Media Player 11, Windows Media Player 12, or ®...
Page 102 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Select the target server with the cursors, and press ENTER to display the Player 12, it must be configured beforehand. items list screen. Setting PC • This unit cannot access pictures and videos stored on servers. 1.
Page 103 Contents Connections Playback Setup ≫ ≫ ≫ ≫ – It is playing a music file on a USB storage device. • Depending on the version of Windows Media Player, the names of items to ® select may differ from the above description. ‰...
Page 104 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Supported Audio Formats This unit supports the following music file formats. Remote play of FLAC and Apple Lossless (.m4a/.mp4/.M4A/.MP4): DSD is not supported. • Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz •...
Page 105 Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.) When downloading Onkyo Controller (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can save your favorite playlist...
Page 106 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • If there are no tracks on the Play Queue list, only "Play Now " is 3. To delete a track, slide the track to the left until the trash icon changes to " ".
Page 107 Registering this unit with Amazon Music allows you to enjoy the music distribution service provided by Amazon. You can register this unit on the screen of Onkyo Controller by downloading Onkyo Controller (available on iOS or Android™) to mobile devices such as a smartphone and tablet.
Page 108 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Amazon Music using the remote controller 1. Switch the input on the TV to the input connected to the unit. 2. Pressing NET will display the Network Functions list screen on the TV. 3.
Page 109 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Connecting the Sonos System for Playback Setting Up Connecting this unit and Sonos Connect allows you to send the music or music sources on the Sonos App to this unit. Through Sonos Connect, you can play this unit with the same group of another Sonos device on the network or can A setup is required to play Sonos on this unit.
Page 110 Contents Connections Playback Setup ≫ ≫ ≫ ≫ rooms (ZONE 2 and ZONE 3). Preset Volume: You can set the volume that Sonos Connect will be played at in the main room (where this unit is located) beforehand. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5"...
Page 111 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening To the AM/FM Radio You can receive AM and FM radio stations on this unit with the built-in tuner. Tuning into a Radio Station Perform the following procedure when this unit is on. Tuning Automatically 1.
Page 112 Contents Connections Playback Setup ≫ ≫ ≫ ≫ When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" ( p112). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.
Page 113 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Presetting a Radio Station Registration Procedure You can preset up to 40 of your favorite AM/FM radio stations. After tuning in to the AM/FM radio station you want to register, perform the following procedure.
Page 114 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Selecting a Preset Radio Station 1. Press TUNER. 2. Press the cursors to select a preset number. Deleting a Preset Radio Station 1. Press TUNER. 2. Press the cursors to select the preset number to delete. 3.
Page 115 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Using RDS (European models) RDS stands for Radio Data System, and is a method of transmitting data in FM button, the unit starts to search for another station. radio signals. In regions where RDS can be used, when you tune in to a radio •...
Page 116 "BLUETOOTH". You cannot select different stations of AM/FM broadcasts for the main room and separate room. Using Onkyo Controller is convenient for operations of multi-zone playback. You can use it on mobile devices, such as a smartphone and tablet to which Onkyo Controller (available on iOS or Android™) has been downloaded.
Page 117 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back (ZONE 2) In remote controller operation, while pressing and holding the ZONE 2 button, press other buttons for operation. 1. While pressing and holding the ZONE 2 button on the remote controller, point the remote controller at this unit and press .
Page 118 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • The audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2ch PCM signal. When the AV component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.
Page 119 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Playing Back (ZONE 3) In remote controller operation, while pressing and holding the ZONE 3 button, press other buttons for operation. 1. While pressing and holding the ZONE 3 button on the remote controller, point the remote controller at this unit and press .
Page 120 Contents Connections Playback Setup ≫ ≫ ≫ ≫ main room, the mode will automatically switch to the Direct listening mode. To disable the function: While pressing and holding the ZONE 3 button on the remote controller, press . WHOLE HOUSE MODE: When the WHOLE HOUSE MODE button of the main unit is pressed during playback in the main room, "Z2"...
Page 121 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ZONE B Playback While performing playback through speakers (ZONE A) connected to the unit, you can enjoy the audio of the same source with the pre-main amplifier, etc. (ZONE B) ( p81) connected to the ZONE B LINE OUT jack at the same time. Playing Back 1.
Page 122 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Convenience functions Displaying Your Favorite Video on TV While Playing Music While listening to the music from a CD or BLUETOOTH-enabled device, you can display video on TV from an AV component such as a Blu-ray Disc player. TV’s REMOTE •...
Page 123 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting the video source to be displayed on TV beforehand: When playing the audio of "TUNER", "NET" and "BLUETOOTH", you can set the input selector to be displayed on TV beforehand using "Video Select" ( p169) on the Setup Menu.
Page 124 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Adjusting the tone Adjusting TREBLE/BASS You can adjust the sound quality of the speakers. 1. Press TREBLE or BASS to select the content to adjust. TREBLE: Enhances or moderates the high-tone range of the speakers. BASS: Enhances or moderates the low-tone range of the speakers.
Page 125 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Using the Cinema Dedicated mode Cinema Dedicated can improve sound quality by limiting the activity of digital circuits and thereby suppressing the noise that is generated by them. You can choose from "Cinema Dedicated" which temporarily stops communications such as via the network, Bluetooth, and USB, and "Cinema Dedicated Net Off"...
Page 126 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Sleep Timer You can allow the unit to enter standby automatically when the specified time has elapsed. Press the SLEEP button on the remote controller, and select any of "30 min", "60 min" and "90 min". "Off": The unit does not automatically enter standby mode.
Page 127 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/TV, MUSIC, and GAME. Selecting a Listening mode 1.
Page 128 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Checking the input format and listening mode Repeatedly pressing the button on the remote controller switches the display of the main unit in the following order. • The display content for the BLUETOOH input is different. •...
Page 129 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker Layouts and Selectable Listening Modes See the following table for selectable listening modes for each speaker layout. Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 6.1.4 7.1.4 DD (Dolby Audio - DD) (*1)
Page 130 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 6.1.4 7.1.4 (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) DTS 96/24 (*3) (*3)
Page 131 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 6.1.4 7.1.4 Multich (Multichannel) (*1) (*1) (*1) (*1) (*1) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*1) (*1) (*1) (*2)
Page 132 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening Mode Effects In alphabetical order surround back speakers are installed Atmos 7.0/7.1/7.2: When front speakers, center speaker, surround – „ AllCh Stereo speakers and surround back speakers are installed Atmos 2.0.2/2.1.2/2.2.2: When front speakers and height speakers are This mode is ideal for background music.
Page 133 Contents Connections Playback Setup ≫ ≫ ≫ ≫ channels with additional channels such as the surround back channel. lossless compression technology referred to as MLP, and it faithfully reproduces • To enable transfer of this audio format, connect via an HDMI cable and set the the master audio recorded in the studio.
Page 134 Contents Connections Playback Setup ≫ ≫ ≫ ≫ • To enable transfer of this audio format, connect via a digital cable and set the from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively. audio output on the player to Bitstream output. •...
Page 135 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Game-Action displayed, IMAX Mode is optimized for the playback of 5.1 IMAX Enhanced content. When "IMAX DTS:X" is displayed, IMAX Mode is optimized for the This mode is suitable for games with a lot of action. playback of fully immersive IMAX Enhanced content.
Page 136 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Pure Audio are recorded as is, even when recording to a DVD-Video, for example, without making any modifications to suit a home theater environment. THX technology This mode reproduces the original sound more faithfully. The display and analog is able to reproduce the movie theater sound accurately in a home theater video circuit are turned off to provide purer sound.
Page 137 Contents Connections Playback Setup ≫ ≫ ≫ ≫ between the surround channels so that you can enjoy the same spatial sound playing music sources recorded in 5.1ch, such as DTS, Dolby Digital, and with two surround speakers as in a movie theater. DVD-Audio.
Page 138 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Input Formats and Selectable Listening Modes You can select a variety of listening modes according to the audio format of the signal to be input. • List of listening modes selectable with the MOVIE/TV button ( p139) •...
Page 139 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ MOVIE/TV button Listening mode DTHD DSur (Dolby Audio (Dolby Audio Atmos Direct Multich(*2) (Dolby Audio (Dolby Audio (*2)(*12) - DD+) - TrueHD) (*13) - DD) (*2) - Surr) (*13) Input Format (*2)(*3) (*2) 2-channel signal input...
Page 140 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode DTS-HD DTS-HD ES Discrete HR (DTS- Master ES Matrix IMAX DTS 96/24 (DTS-ES IMAX IMAX DTS (*2) Express HD High (DTS-HD (DTS-ES DTS:X Neural:X Neural:X (*2) Discrete) DTS (*7) DTS:X (*7) (*2) Resolution) Master...
Page 141 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode AllCh T-D (Theater- TV Logic THX Ultra Mono Stereo / Full Dimensional) (*8) Cinema(*11) Cinema (*5) Mono (*9) (*10) Input Format 2-channel signal input Analog / PCM NET / USB / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTS-HD HR /...
Page 142 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ MUSIC button Listening mode DTHD Pure Audio DSur (Dolby Audio (Dolby Audio Atmos Direct Multich (*2) (Dolby Audio (Dolby Audio (*2)(*12) - DD+) - TrueHD) (*13) Stereo - DD) (*2) - Surr) (*13) Input Format (*2)(*3) (*2)
Page 143 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode DTS-HD DTS-HD ES Discrete HR (DTS- Master ES Matrix IMAX DTS 96/24 (DTS-ES IMAX IMAX DTS (*2) Express HD High (DTS-HD (DTS-ES DTS:X Neural:X Neural:X (*2) Discrete) DTS (*7) DTS:X (*7) (*2) Resolution) Master...
Page 144 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode Orchestra / AllCh Unplugged / THX Music THX Ultra Stereo / Full Studio-Mix (*11) Music (*5) Mono (*9) Input Format (*8) 2-channel signal input Analog / PCM NET / USB / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTS-HD HR /...
Page 145 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ GAME button Listening mode DTHD DSur (Dolby Audio (Dolby Audio Atmos Direct Multich (*2) (Dolby Audio (Dolby Audio (*2)(*12) - DD+) - TrueHD) (*13) - DD) (*2) - Surr) (*13) Input Format (*2)(*3) (*2) 2-channel signal input...
Page 146 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode DTS-HD DTS-HD ES Discrete HR (DTS- Master ES Matrix IMAX DTS 96/24 (DTS-ES IMAX IMAX DTS (*2) Express HD High (DTS-HD (DTS-ES DTS:X Neural:X Neural:X (*2) Discrete) DTS (*7) DTS:X (*7) (*2) Resolution) Master...
Page 147 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Listening mode Game-Action / Game- AllCh T-D (Theater- THX Games THX Ultra Rock /Game-RPG / Stereo / Full Dimensional) (*10) (*11) Games (*5) Game-Sports (*8) Mono (*9) Input Format 2-channel signal input Analog / PCM NET / USB / DSD (*1) DD / DD+ / DTHD...
Page 148 Contents Connections Playback Setup ≫ ≫ ≫ ≫ (*1) You cannot select any mode other than PureAudio, Stereo, AllCh Stereo and Full Mono if the sampling rate is 5.6/11.2 MHz. (*2) A center speaker or surround speakers need to be installed. (*3) If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less, DD+ cannot be selected.
Page 149 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Inputting Characters You can input characters or symbols on the keyboard displayed on the TV screen • Select "A/a" to switch between upper and lower cases. (Can also be switched such as when inputting a password for Wi-Fi Setup ( p171) or naming a with the MODE button on the remote controller.) preset radio station (...
Page 150 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setup Menu Menu list You can configure advanced settings to have a more enjoyable experience with this unit. For operation details, refer to "Menu operations" ( p152). 1. Input/Output 1. TV Out / OSD Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.
Page 151 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source 1. My Input Volume Set a volume value for each input selector. p168 2. Name Edit Set an easy name for each input. p168 Audio Select p169 Select the prioritized input terminal when multiple audio sources are connected to one input selector.
Page 152 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Menu operations Use the on-screen displays (OSD) that appear on the TV to make the settings. Press on the remote controller to display the Setup menu. Setup 1. Input/Output Assign 1. TV Out / OSD 2.
Page 153 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 1. Input/Output Assign Setting Item Default Value Setting Details 1080p -> When a TV supporting 4K is used, video signals „ 1. TV Out / OSD 4K Upscaling input with 1080p can be automatically output with Make settings for TV output and On-Screen Displays (OSD) that appear on the "Off": When this function is not used "Auto": When this function is used...
Page 154 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details HDMI 4K Signal Standard When an AV component such as a TV or player OSD Language English Select the on-screen display language from the Fomat that supports HDMI 4K is connected to this unit, following.
Page 155 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. HDMI Input Setting Item Default Value Setting Details Screen Saver 3 minutes Set the time to start the screen saver. Change input assignment between the input selectors and HDMI IN jacks. Select a value from "3 minutes", "5 minutes", "10 minutes"...
Page 156 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details "HDMI 1 (HDCP 2.3)" to "HDMI 6 (HDCP 2.3)": "COMPONENT 1", "COMPONENT 2": Assign the Assign a desired HDMI IN jack to the TV button. If COMPONENT VIDEO IN jacks to the PC button.
Page 157 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details "COAXIAL 1", "COAXIAL 2", "OPTICAL 1", "OPTICAL 2", "OPTICAL 3": Assign a desired DIGITAL IN jack to the PC button. OPTICAL 2 "COAXIAL 1", "COAXIAL 2", "OPTICAL 1", "OPTICAL 2", "OPTICAL 3": Assign a desired DIGITAL IN jack to the CD button.
Page 158 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 2. Speaker Setting Item Default Value Setting Details Height 1 Speaker Top Front Set the speaker type if height speakers are „ 1. Configuration connected to the HEIGHT 1 terminals. Select "Top Middle", "Top Rear", "Rear High", "Dolby Speaker Change the settings of connection environment of the speakers.
Page 159 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Height 2 Speaker Top Rear Set the speaker type if height speakers are Zone Speaker Set whether speakers are connected to Zone 2 or connected to the HEIGHT 2 terminals.
Page 160 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Crossover Setting Item Default Value Setting Details Height 2 80 Hz (THX) Select the crossover frequency from "40 Hz" to Change the settings of crossover frequencies. "200 Hz" to start outputting frequencies for each •...
Page 161 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Distance Setting Item Default Value Setting Details Double Bass This can be selected only when "Configuration" - Set the distance from each speaker to the listening position. "Subwoofer" is set to "1ch" or "2ch" and "Front" is set to "Full Band".
Page 162 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 4. Level Calibration Setting Item Default Value Setting Details Surr Back Right 0.0 dB Select a value between "-12.0 dB" and "+12.0 dB" Adjust the volume level of each speaker. (in 0.5 dB increments). A test tone will be output each time you change the value.
Page 163 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 5. Dolby Enabled Speaker Setting Item Default Value Setting Details Height 1 0.0 dB After selecting the speaker frequency between Change the settings of Dolby Enabled Speakers. "25 Hz" and "16 kHz" with the cursors / , adjust the volume of that frequency between "-6.0 dB"...
Page 164 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 7. THX Audio Setting Item Default Value Setting Details Loudness Plus When this is set to "On", you can enjoy even subtle Change the THX Audio settings. nuances of audio expression at low volume. This is only available when the THX listening mode is Setting Item Default Value...
Page 165 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 3. Audio Adjust „ 8. EQ for Standing Wave This controls the affect of the standing waves that occur when sound waves „ 1. Multiplex/Mono reverberating off obstacles such as walls interfere with the original sound waves. Change the settings of multiplex audio playback.
Page 166 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Dolby Setting Item Default Value Setting Details IMAX Mode Auto Set the IMAX sound mode. Change the setting of when Dolby signals are input. "Auto": IMAX sound mode is automatically applied when IMAX content is detected.
Page 167 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 4. LFE Level Setting Item Default Value Setting Details Headphone Level 0.0 dB Adjust the output level of headphones. Select a Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, value between "-12.0 dB"...
Page 168 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 4. Source „ 2. Name Edit Set an easy name for each input. The set name appears on the main unit's „ 1. My Input Volume display. Select the input selector to make the setting. Set a volume value for each input selector.
Page 169 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Audio Select Setting Item Default Value Setting Details PCM Fixed Mode Select whether to fix input signals to PCM (except Select the priority for input selection when multiple audio sources are connected multi-channel PCM) when you select "HDMI", to one input selector, for example, connections to both the "BD/DVD"...
Page 170 • When this function is set to "On", the power can switch the input of the unit using the remote consumption in standby state increases, controller or the Onkyo Controller even in the however, the increase in power consumption is standby mode.
Page 171 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 2. Network Setting Item Default Value Setting Details Audio TV Out You can enjoy audio through the speakers of the Change the settings of the Network function. TV while this unit is on. •...
Page 172 Proxy URL Displays/Sets the proxy server URL. AirPlay Device Onkyo Change the model name of this unit which is Name TX-RZ3400 displayed on the AirPlay-connected device to an Proxy Port 8080 Displays/Sets the proxy server port number when XXXXXX easily recognized name.
Page 173 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 3. Bluetooth Setting Item Default Value Setting Details AirPlay Password You can set a password of up to 31 characters so Change the settings for the BLUETOOTH function. that only users that have input can use AirPlay ®...
Page 174 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Setting Item Default Value Setting Details Auto Standby On/Off This setting allows the unit to enter standby mode Pairing You can initialize the pairing information stored on automatically after 20 minutes of inactivity without Information this unit.
Page 175 TRIGGER OUT jack. You can enable power link operation when you connect the turn on the power of the unit via network using unit and the external devices equipped with 12V trigger input jack. an application such as Onkyo Controller that can control this unit. Setting Item...
Page 176 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 6. Multi Zone Setting Item Default Value Setting Details Output Zone Main Select the zone where you want to listen to the „ 1. Zone 2 music. "Main": Outputs audio only to the main room Change the settings for Zone 2.
Page 177 Contents Connections Playback Setup ≫ ≫ ≫ ≫ 7. Miscellaneous Setting Item Default Value Setting Details Maximum Volume Off Set the maximum value for Zone 3 to prevent the „ 1. Tuner volume from becoming too loud. Select a value from "Off", and "50"...
Page 178 Default Value Setting Details power supplied to the SPEAKERS terminals you are not using on this unit. Remote ID If multiple ONKYO products are installed in the Setting Item Default Value Setting Details same room, select the ID for the remote control used with this unit from "1", "2"...
Page 179 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Setting Item Default Value Setting Details Update via Press ENTER to select when updating the firmware via USB. • This setting cannot be selected if a USB storage device is not connected or there is no updatable firmware in the USB storage device.
Page 180 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Quick Menu Menu operations You can quickly adjust the settings you frequently use, such as tone adjustments, etc. You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.
Page 181 Contents Connections Playback Setup ≫ ≫ ≫ ≫ listening to the audio of TV using the speakers of this unit. Select "Off" when the – When the "Adjusting VOCAL" ( p124) function is being used ARC function is not used. –...
Page 182 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Subwoofer 1/Subwoofer 2: Adjust the speaker level of the subwoofer while listening to the sound. • If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses. Front Panel≫...
Page 183 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Web Setup Menu operations You can make the settings for the network function of this unit using an Internet address of this unit. browser on a PC, smartphone, etc. Network Connection: You can select a network connection method. If you select 1.
Page 184 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Initial Setup with Auto Start-up Wizard Operations When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for TV’s REMOTE startup using simple operations following on-screen guidance.
Page 185 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ 1. Speaker Setup Set the subwoofer volume to more than half. • If the power of this unit suddenly turns off, the wires in the speaker cables 1. Select the connected speaker configuration and press ENTER. have touched the rear panel or other wires, and the protection circuit is Note that the image on the screen changes each time you select the number working.
Page 186 Contents Connections Playback Setup ≫ ≫ ≫ ≫ if the speakers are connected correctly. If there is any problem with the speaker connection, perform the connection after disconnecting the power cord. 5. Once the measurement is completed, it is possible to perform the measurement in 8 additional listening positions.
Page 187: Table Of Contents
Contents Connections Playback Setup ≫ ≫ ≫ ≫ Troubleshooting „ Tuner „ BLUETOOTH function Before starting the procedure „ Network function Problems may be solved by simply turning the power on/off or disconnecting/ „ USB storage device connecting the power cord, which is easier than working on the connection, setting and operating procedure.
Page 188: When The Unit Is Operating Erratically
Contents Connections Playback Setup ≫ ≫ ≫ ≫ When the unit is operating erratically ‰ Try restarting the unit Restarting this unit may solve the problem. Set the main unit to standby, then after waiting for 5 seconds or more, press and hold the ON/STANDBY button of the main unit for at least 5 seconds, and then restart the unit.
Page 189 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Resetting the unit (this resets the unit settings to the default) If the restart of the unit does not solve the problem, reset the unit, and restore all the settings to the factory default at the time of purchase. This may solve the problem. If the unit is reset, your settings are restored to the default values.
Page 190: Troubleshooting
Contents Connections Playback Setup ≫ ≫ ≫ ≫ Troubleshooting „ Power ‰ When the power is turned on, "AMP Diag Mode" appears on the display of the main unit. • The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an abnormality with the speaker cable connection.
Page 191 Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ No sound from a connected player • Change the input selector on this unit to the position of the jack to which the player is connected. • Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may be off.
Page 192: X84; Listening Modes
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Sound suddenly reduces • When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits. ‰...
Page 193: X84; Video
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ About DTS signals • With media that switches suddenly from DTS to PCM, PCM playback may not start immediately. In such a case, stop playback on the player side for approx. 3 seconds or more. Then, resume playback. The playback will be performed normally. •...
Page 194: X84; Linked Operation
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Images flicker • The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable, change the output resolution on the player.
Page 195: X84; Network Function
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Cannot connect with this unit • Check if the BLUETOOTH function of the BLUETOOTH-enabled device is enabled. p173) ‰ Music playback is unavailable on the unit even after successful BLUETOOTH connection •...
Page 196: X84; Usb Storage Device
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Sound is interrupted when playing music files on the network server • Check if the network server meets the requirements for operation. • When the PC is serving as the network server, quit application software other than the server software (Windows Media Player 12, etc.).
Page 197: X84; Zone B Function
Contents Connections Playback Setup ≫ ≫ ≫ ≫ ‰ Playback sound is interrupted, or communication is not possible • You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to improve visibility, and connect again.
Page 198: X84; Display
Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Display ‰ The display does not light up • When the Dimmer function is working, the display may go dim. Press the DIMMER button, and change the brightness level of the display. p15) •...
Page 199 Contents Connections Playback Setup ≫ ≫ ≫ ≫ Reducing the Power Consumption in Standby State When the following functions are enabled, the power consumption in standby state increases. To reduce the power consumption in standby state, check each setting and set the functions to "Off". –...
Page 200 We have confirmed the operations of the following devices. (As of January 2019) 4K : Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand This unit supports 4K (3840×2160p) and 4K SMPTE (4096×2160p) video signals. RIHD-compatible players; Toshiba brand players and recorders; Sharp brand...
Page 201 Contents Connections Playback Setup ≫ ≫ ≫ ≫ unit must also conform to the HDCP standards. 24/25/30/50/60 Hz, 1920×1080p 24/25/30/50/60 Hz, 2560×1080p 24/25/30/50/60 Hz : RGB/YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2 (12 bit) Supported Audio Formats – 4K (3840×2160p) 24/25/30 Hz, 4K SMPTE (4096×2160p) 24/25/30 Hz : RGB/YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit) 2 ch linear PCM: –...
Page 202 Contents Connections Playback Setup ≫ ≫ ≫ ≫ General Specifications „ Amplifier Section 90 dB (IHF-A, PHONO IN, SP OUT) Speaker Impedance Rated Output Power (FTC) (North American) 4 Ω - 16 Ω With 8 ohm loads, both channels driven, 1 kHz; rated 140 watts per channel Headphone Rated Output minimum RMS power, with no more than 0.08% total harmonic distortion 57 mW + 57 mW (32 Ω, 1 kHz, 10% THD)
Page 203 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ BLUETOOTH Section * 2.8 W (Equipment with HiNA functionality Standby mode, Network disconnect and Network Standby ON) (North American) Communication system 2.9 W (Equipment with HiNA functionality Standby mode, Network BLUETOOTH Specification version 4.2 disconnect and Network Standby ON) (Others) Frequency band * This equipment complies with European Commission Regulation (EC) No...
Page 204 Contents Connections Playback Setup ≫ ≫ ≫ ≫ „ Video Inputs „ Others Component Setup Mic : 1 (Front) IN1 (BD/DVD), IN2 (GAME) USB : 1 (Ver. 2.0, 5 V/1.0 A) Composite Ethernet : 1 IN1 (CBL/SAT), IN2 (STRM BOX) RS232 : 1 IR IN : 1 „...

Onkyo TX-RZ3400 Instruction Manual

Troubleshooting

When the Unit Is Operating Erratically

Troubleshooting

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Onkyo TX-RZ3400

Summary of Contents for Onkyo TX-RZ3400

Table of Contents
