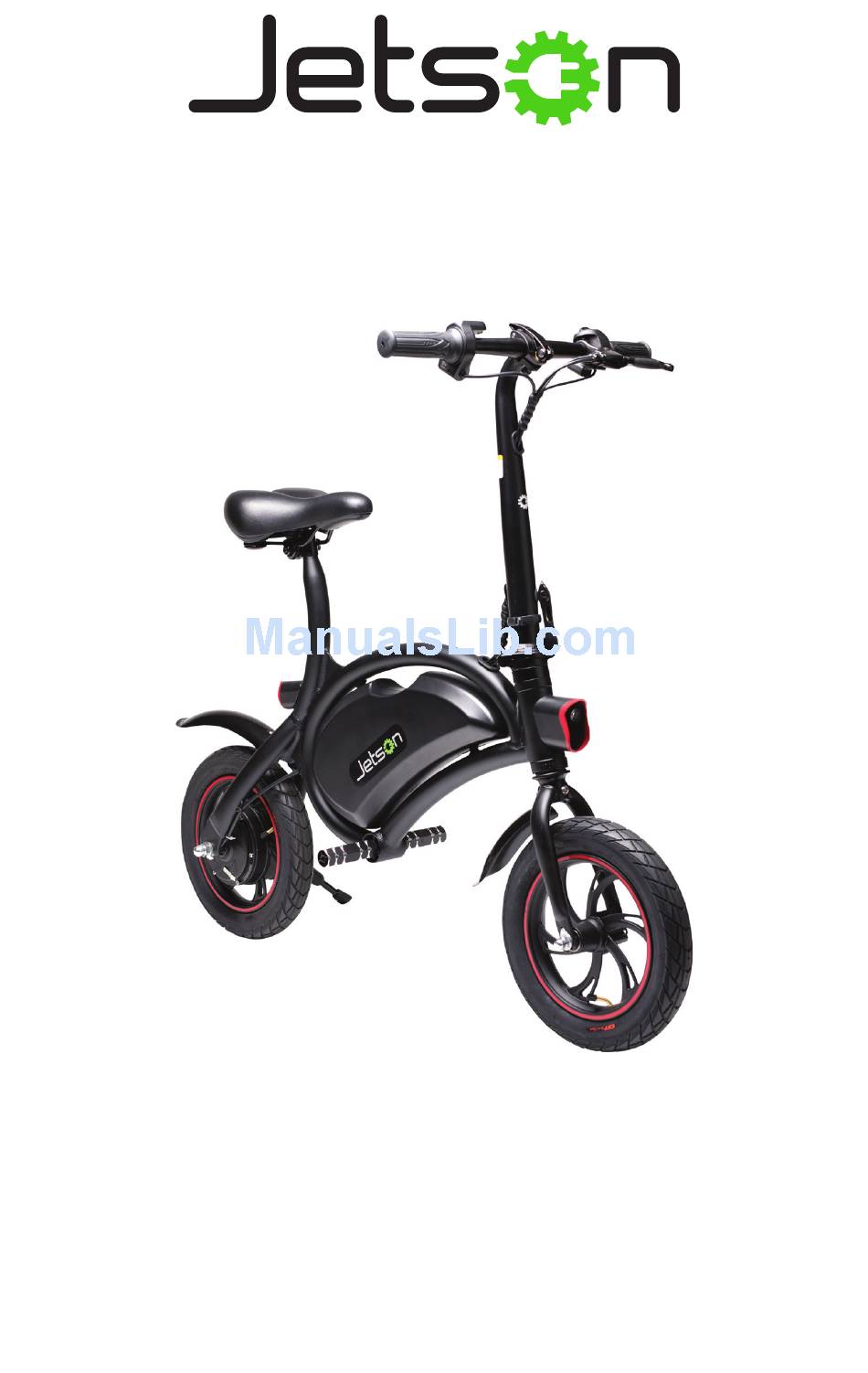

- Page 1 BOLT -MANUAL-...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Included in the Box Features and Specs Assembly Operating the Bolt Charging the Battery Unfolding the Bolt Folding the Bolt Safe Riding Care and Maintenance Safety Warnings Warranty Product Registration... -
Page 3: Introduction
This product manual can help you understand, use, and maintain your Bolt. In order to avoid danger caused by collisions, falls, and loss of control, please use caution and learn how to ride the Bolt safely. Jetson and authorized dealers cannot be held liable for injury or damage caused from riding the Bolt. -
Page 4: Included In The Box
INCLUDED IN THE BOX Front Tire Saddle Headlight Taillight Stem Quick Release Rear Fender Stem Rear Tire Handlebar Kickstand Frame Foot Rest Battery Front Fender... -
Page 5: Features And Specs
FEATURES AND SPECS MODEL: BOLT MOTOR: 250W MOTOR TYPE: HUB BATTERY: 36V, 5.2 AH LITHIUM ION CHARGER: 110V - 240V CHARGE TIME: 3-5 HOURS WHEEL DIAMETER: 14" PRODUCT WEIGHT: 34 LBS WEIGHT LIMIT: 250 LBS MAX SPEED: 16 MPH MAX RANGE: 35 MILES CLIMBING ANGLE: 15°... -
Page 6: Assembly
ASSEMBLY The Bolt comes mostly assembled, you will need to attach the Rear Fender and the Foot Rests. To attach the Rear Fender, remove the screw above the Rear Tire using the provided Allen Key. Then, attach the Rear Fender using the Screw. - Page 7 To connect the Foot Rests to the Bolt, place each Foot Rest onto the tube and turn it until it is secure.
-
Page 8: Operating The Bolt
OPERATING THE BOLT TURNING THE BOLT ON AND OFF To turn the Bolt on, push the Power Switch up to "ON." To turn the Bolt off, push the Power Switch down to "OFF." Power Switch BATTERY INDICATOR The Bolt has a Battery Indicator on the Handlebar. When all four lights are on, the Bolt is fully charged. - Page 9 TURNING THE LIGHTS ON AND OFF To turn the Headlight and Taillight on, hold down the Horn Button for 3 seconds. Turn off the lights by holding the Horn Button down for 3 seconds again. Hold down for 3 seconds CRUISE CONTROL SETTINGS To use the cruise control feature, press the Cruise Button when you have reached the speed you would like to maintain.
-
Page 10: Charging The Battery
Port when you are done charging. Before your first ride you must fully charge the Bolt - charge for 6 hours for the first 3 times you use it. For every ride after, charge your Bolt until it is fully charged, and NOT LONGER. -
Page 11: Unfolding The Bolt
UNFOLDING THE BOLT Lift the Handlebars up until it is aligned with the Stem. Then, lock the Stem Quick Release. Lift Handlebar Lock the Stem Quick Release... -
Page 12: Folding The Bolt
FOLDING THE BOLT Unlock the Stem Quick Release and lower the Handlebars slowly so you do not scratch the Frame. Unlock the Stem Quick Release Lower Handlebar... -
Page 13: Safe Riding
Make sure you can reach and squeeze the Brake Levers. Foot Position – While riding the Bolt, keep your feet on the Foot Rests. Do not ride with your feet dangling over the sides. Remain seated while riding the Bolt. -
Page 14: Care And Maintenance
CLEANING THE BOLT To clean the Bolt carefully wipe with a damp cloth, then dry with a dry cloth. Do not use water to clean the Bolt, as the electrical and electronic systems may get wet, resulting in personal injury or malfunction of the bicycle. -
Page 15: Safety Warnings
• Do not ride after drinking or taking prescription medication. • Do not carry items when riding. • Prior to each ride, inspect each part of the Bolt to ensure it has been maintained correctly and is functioning properly. • Always give way to pedestrians. - Page 16 ADDITIONAL OPERATION CAUTIONS Do not lift the Bolt off the ground while it is in operation and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the Bolt, and do not jump while using it.
-
Page 17: Warranty
• Jetson® makes no warranty with respect to products or trade accessories not made by Jetson®, including, but not limited to, motors, tires, wheels, and batteries, such products or trade accessories, such items being subject to the original manufacturer’s warranty, if any. -
Page 18: Product Registration
For myself For my child For my grandchild Gift for someone else (adult) Gift for someone else (child) How did you hear about the Jetson Bolt?: ______________________________________________ _____________________________________________________________________________________ Complete this form and mail it to: Attention: Product Registration Jetson Electric Bikes... - Page 20 BOLT...
