Hydran* M2-X Instruction Manual
CAUTION

4.3.10 Installing the Cables

CAUTION
CAUTION
MA-029 Rev. 1.0, 30-Jul-18
The Hydran M2-X must always be grounded, even if the
transformer tank is grounded at a single point and
monitored for tank-to-ground currents.
1. Mount the required, watertight conduits fittings: ½"-
NPT, PG-13 or M2-X0, with locknuts and sealing
gaskets.
2. Mount required flexible conduits.
3. Ground all metallic conduits.
4. Ensure that the plugs of all unused openings are
securely in place.

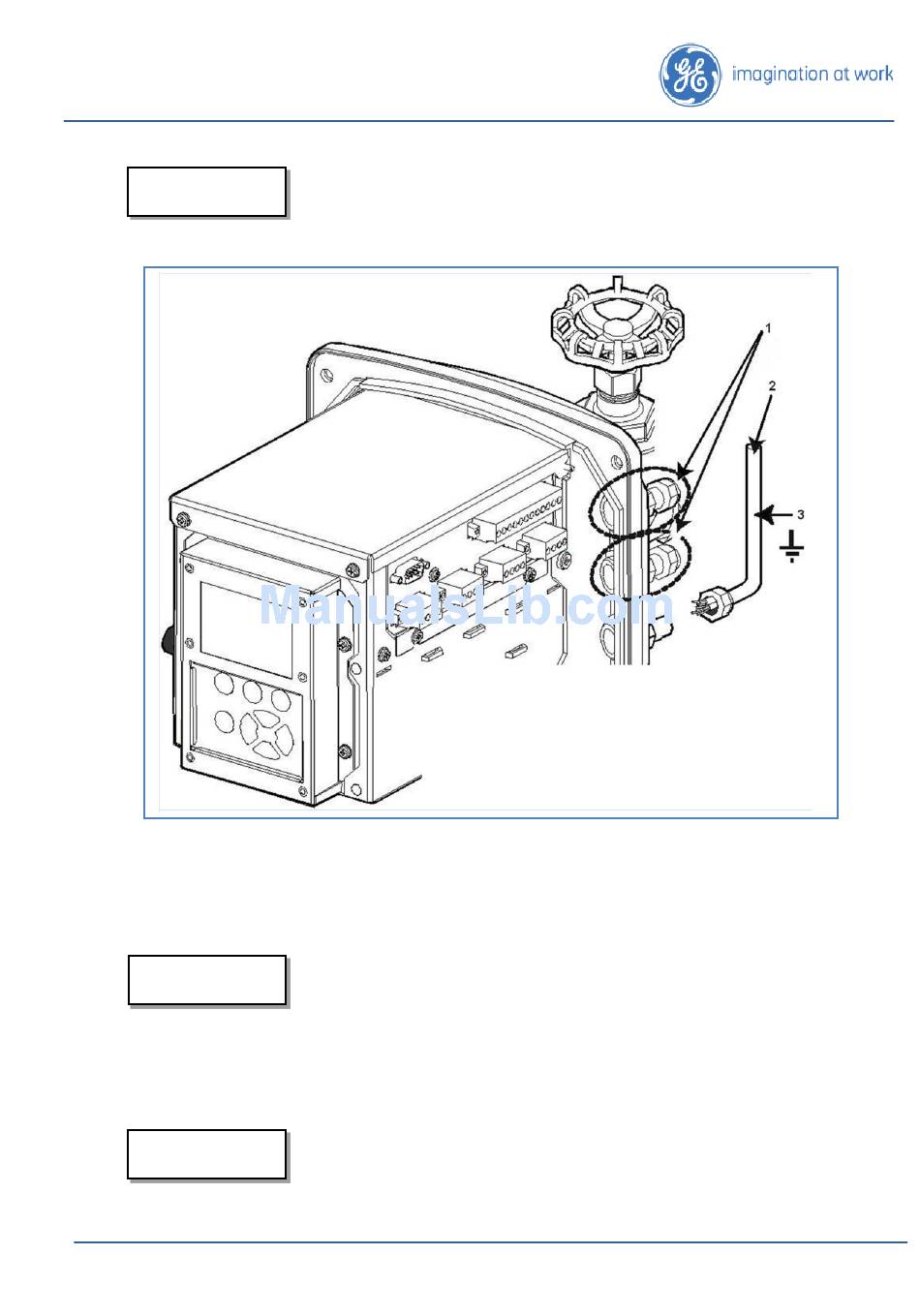

Figure 4-12: Installing Cable Conduits
The Hydran M2-X's operation may be affected if wires are not
connected correctly. Be careful when installing and inserting
each wire. Be sure to insert all strands in the terminal;
strands that touch two terminals will cause problems. Strip
each wire to a maximum of 8 mm before installing it. Do not
leave trims of metallic strands inside the Hydran M2-X's
enclosure.
The first temporary plug (see item 1 in Figure 2-6 must be
removed and replaced with a watertight fitting to connect
the ac power supply cable (Section 4.3.10.6).
Page 89
