Installing the Cables

1. Remove four retaining screws (using
supplied Allen key), 4 lock washers
and 4 flat washers.
2. Pull out cover.

Installing the Cable Conduits and Gland Fittings

GE Recommendations prior to installation:
•All cables carrying; Power, Communications, analogue inputs and outputs,
must be run in either rigid steel conduit or flexible steel liquid tight armoured
conduit, with a minimum rating of IP56.
•Using flexible steel armoured conduit makes it easier during installation and
servicing of the Hydran M2-X.
• All terminating connecting gland fittings to the Hydran M2-X must be liquid
tight or at a minimum have an IP56 rating, with locknuts and sealing gaskets
•The steel provides shielding against magnetic fields.
Page 26

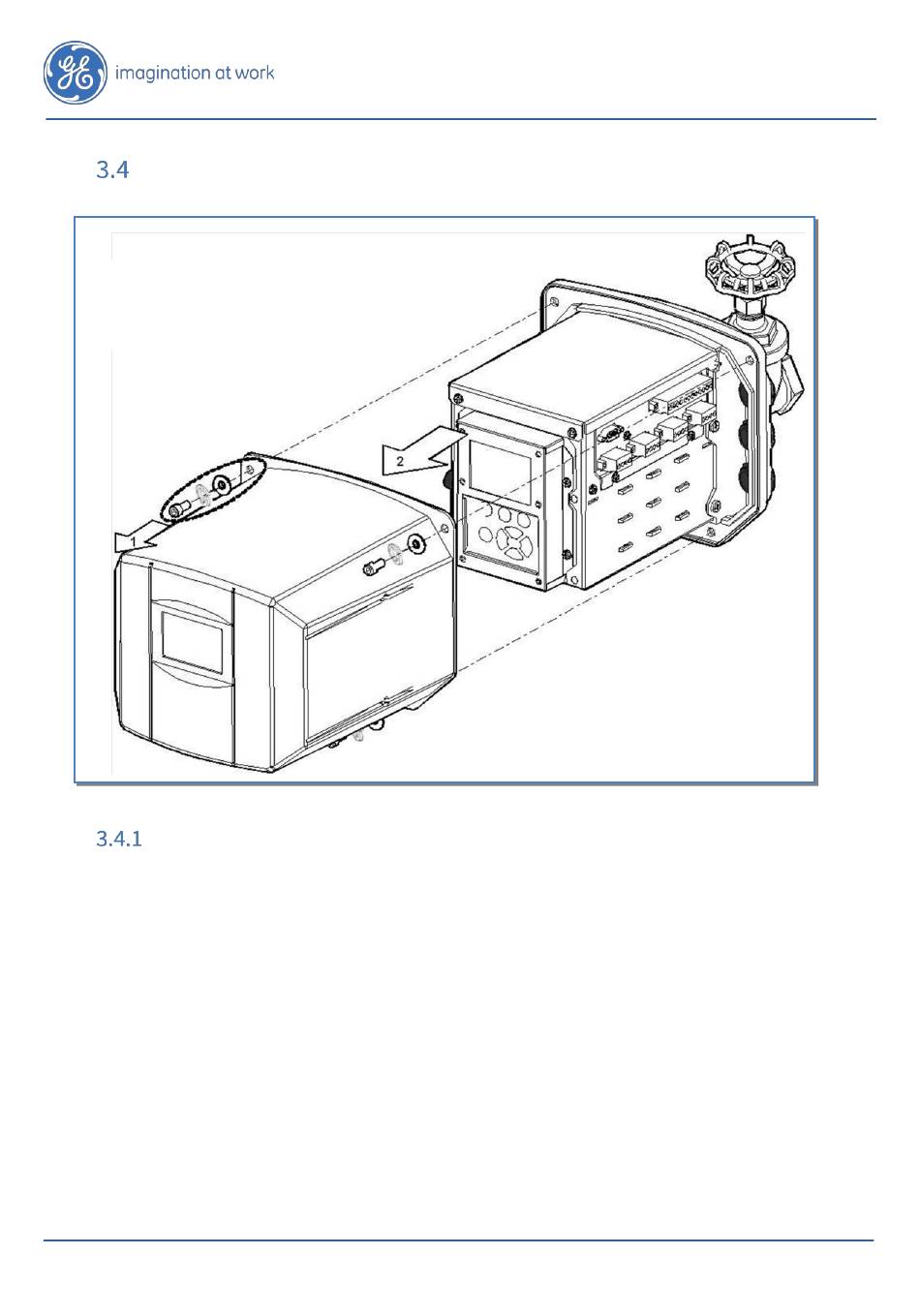

Figure 22: Removing the Hydran M2-X Cover
