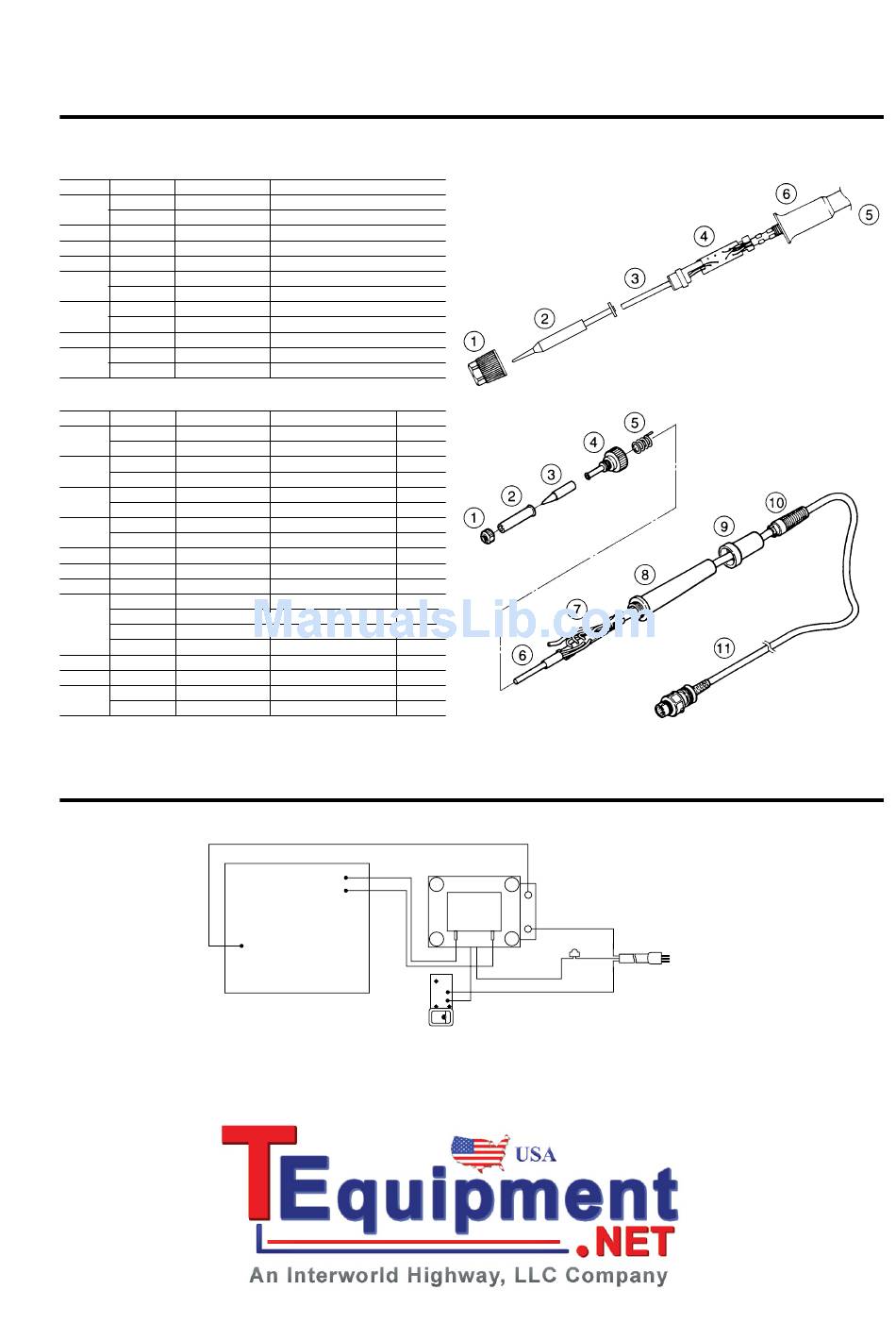

Iron; Wiring Diagram - Hakko Electronics 936 Instruction Manual

Parts List
900S
Item No. Part No. Part Name
1 900S-006 Nut
900S-006S Nut
2 Soldering Tip
3 A1322 Heating Element
4 900S-101 Terminal Board
5 900S-001 Handle
900S-001S Handle
6 900S-034 Handle Cover
900S-034S Handle Cover
7 900S-010 Cord Bushing
8 900S-039 Cord Asse'y
900S-039S Cord Asse'y
907,908
Item No. Part No. Part Name
1 B1784 Nut
B1794 Nut
2 B1786 Tip Enclosure
B1787 Tip Enclosure
3 Soldering Tip
Soldering Tip
4 B2022 Nipple
B2033 Nipple
5 B2032 Grounding Spring
6 A1321 Heating Element
7 B2028 Terminal Board
8 B2023 Handle
B2024 Handle
B2025 Handle
B2026 Handle
9 B2027 Handle Cover
10 B2031 Cord Bushing
11 B2029 Cord Asse'y
B2030 Cord Asse'y

Wiring Diagram

Ground
®
HEAD OFFICE
4-5, SHIOKUSA 2-CHOME, NANIWA-KU, OSAKA, 556-0024 JAPAN
TEL: (06) 561-3225 FAX: (06) 561-8466
OVERSEAS AFFILIATES
U.S.A.: AMERICAN HAKKO PRODUCTS, INC.
25072 ANZA DR. SANTA CLARITA, CA 91355, U.S.A.
TEL: (805) 294-0090 FAX: (805) 294-0096
Toll Free (800)88-HAKKO
4 2 5 5 6
www. hakkousa.com
S'PORE: HAKKO PRODUCTS PTE., LTD.
1, GENTING LINK #02-04, PERFECT INDUSTRIAL
BUILDING, SINGAPORE 349518
TEL: 7482277 FAX: 7440033
11

(Iron)

Description
E.S.D.
See. P.6
Old part No.900S-H
w/Cord Stopper
w/Handle Cover
w/Handle Cover, E.S.D.
E.S.D.
(Not shown)
(Not shown)
E.S.D. (Not shown)
Description For
907
908
907
908
See. P. 6 907
See. P. 6 908
907
908
907,908
Old part No.900M-H,900L-H 907,908
w/Cord Stopper 907,908
w/Handle Cover 907
w/Handle Cover, E.S.D. 907
w/Handle Cover 908
w/Handle Cover, E.S.D. 908
907,908
907,908
907,908
E.S.D. 907,908
24V
P.W.B.
HONG KONG: HAKKO DEVELOPMENT CO., LTD.
ROOM 1504 EASTERN HARBOUR CENTRE,
28 HOI CHAK STREET, QUARRY BAY, HONG KONG.
TEL: 2811-5588 FAX: 2590-0217
PHILIPPINES: HAIKU PHILS TRADING CO., INC.
NO. 415 WINDSOR TOWER CONDOMINIUM,
163 LEGASPI ST., LEGASPI VILLAGE MAKATI,
METRO MANILA, PHILIPPINES
TEL: 2-817-07-12 FAX: 2-810-76-49
MALAYSIA: HAKKO PRODUCTS SDN BHD
MALAYSIA HEAD OFFICE: PETALING JAYA
LOT 35/1 THE HIGHWAY CENTRE JALAN 51/205 46050
PETALING JAYA WEST MALAYSIA
TEL: 03-7941333 FAX: 03-7911232
PENANG BRANCH:
JOHORE BAHRU BRANCH: TEL: 07-236 7766 FAX: 07-237 4655
Transformer
AC
TR
TEL: 04-644 6669 FAX: 04-644 8628
3 Core
SEP., 1998
