Fortinet FortiAP S221E Quick Start Manual

Hide thumbs Also See for FortiAP S221E:

Advertisement

Quick Links

Download this manual

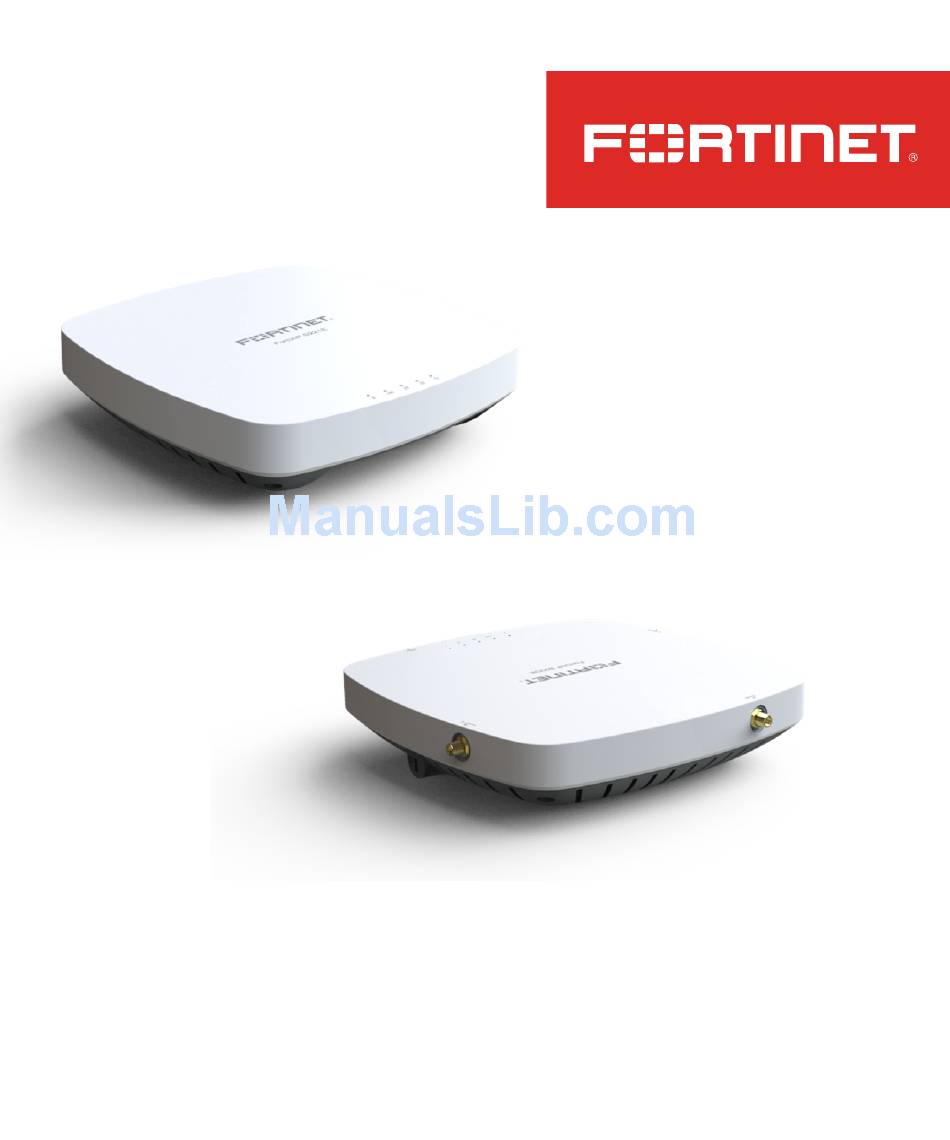

FortiAP S221E, S223E
QuickStart Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiAP S221E and is the answer not in the manual?

Questions and answers

Related Manuals for Fortinet FortiAP S221E

Summary of Contents for Fortinet FortiAP S221E

  • Page 1 FortiAP S221E, S223E QuickStart Guide...
  • Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features, or development, and circumstances may change such that any forward-looking statements herein are not accurate.

  • Page 3: Box Includes

    Box Includes FortiAP device QuickStart Guide X2 2.4GHz X2 5GHz (Model S223E) Wall Mounting Hardware (including Standard and Antennae Recessed Brackets)

  • Page 4: Before You Begin

    Write down details typically provided by your network administrator or ISP. Static IP address IP address ___________________ Subnet Mask ___________________ Default Gateway ___________________ Primary/Secondary DNS ___________________ DHCP It is normal to not require a hostname, but your ISP might require it. Hostname ___________________ QuickStart Guide Video https://video.fortinet.com/video/177/ fortigate-and-fortiap...
  • Page 5 FortiAP S221E - Device Front LED5: Power/Status LED1: BT/BLE O : System is o Green: System is on O : Bluetooth non-activity Blinking: System is booting Green: Bluetooth activity up or upgrading Blinking: Data transmitting/ LED2: WIFI LED4: LAN1 Orange:...
  • Page 6 FortiAP S223E - Device Front LED5: Power/Status LED1: BT/BLE O : System is o Green: System is on O : Bluetooth non-activity Blinking: System is booting Green: Bluetooth activity up or upgrading Blinking: Data transmitting/ LED2: WIFI Orange: Reserved for receiving LED3: LAN 2 O : WiFi link is o...
  • Page 7 FortiAP S221E - Device Rear Power connection for optional power adapter. 12V DC, center positive. LAN/PoE FortiAP S223E - Device Rear 2.4 GHz Antenna Power connection for optional power adapter. 5.0 GHz Antenna 12V DC, center positive. LAN/PoE 5.0 GHz Antenna 2.4 GHz...
  • Page 8 Œ   Installation Ceiling bracket install slide direction Mounting an AP below a suspended ceiling Ceiling T-Rail Ceiling Bracket The unit (S221E or S223E) can be mounted on a wall or ceiling using the mounting hardware provided. The electrical wall box must be pre-installed.

  • Page 9: Basic Connection

      Basic Connection Network Core/FortiGate WAN/POE Connect the FortiAP device to a FortiGate controller or an Internet connection. Ensure that the Power over Ethernet (PoE) cable is connected to an applicable port on your FortiGate device or PoE injector. Caution: Adequate grounding must be provided to the FortiAP unit and the PoE injector, in compliance with your local electrical code or regulations.
  • Page 10 Ž   FortiAP Setup Deployment through a FortiGate Ensure that you are running the Fortinet recommended version of support.fortinet.com software. Please check for more information. If FortiGate is on the same network as the FortiAP: 1. Use FortiGate to preauthorize the FortiAP device.
  • Page 11 If FortiGate is not on the same network as the FortiAP: 1. Log into FortiAP directly (IP address: 192.168.1.2) with username admin and no password, and specify the IP address of the controlling FortiGate. 2. Connect to FortiAP via the CLI using the instructions in the “Connecting to FortiAP CLI”...

  • Page 12: Cautions And Warnings

    Cautions and Warnings Environmental specifications Ambient operating temperature: 0C to 40C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...

  • Page 13: Regulatory Notices

    Le produit doit être alimenté par un bloc d'alimentation à courant continu homologué UL de 12 Vdc, 2A nominal marqué LPS ou Class 2 ou par une source d’alimentation par Ethernet de 54 Vdc (PoE). Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules.
  • Page 14 and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Operation of this device is restricted to indoor use only. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
  • Page 15 Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
  • Page 16 d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication réussie. This radio transmitter (IC: 7280B-2507T021) has been approved by ISED to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
  • Page 17 Gain (dBi) Brand Quantity Antenna Type Connector Holder 2.4GHz 5GHz External antenna model Senao Dipole 4.58 Networks, Inc SMA Plug Senao Dipole 5.35 Networks, Inc SMA Plug Bluetooth Senao PIFA IPEX 3.67 Networks, Inc European Conformity (CE) - EU This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 18 This declaration is only valid for Fortinet products (including, combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply...
  • Page 19 Italiano Questo prodotto è conforme alla Direttiva 2014/53/EU. Latviski Questo prodotto è conforme alla Direttiva 2014/53/EU. Lietuvių Šis gaminys atitinka direktyvą 2014/53/ES. Malti Dan il-prodott huwa konformi mad-Direttiva 2014/53/UE. Magyar Ez a termék megfelel a 2014/53/EU irányelvnek. Nederlands Dit product is in overeenstemming met Richtlijn 2014/53/EU. Norsk Dette produktet er i samsvar med direktiv 2014/53/EU.
  • Page 20 Suomi Tämä tuote on direktiivin 2014/53/EU mukainen. Svenska Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available at the link below: https://site.fortinet.com/ProductRegulatory/EU...
  • Page 21 The partiesto thisagreement are you, the end customer, and either (i) where you have purchased your Product within the Americas, Fortinet, Inc., or (ii) where you have purchased your Product outside of the Americas, Fortinet Singapore Private Limited (each referred to herein as "Fortinet").
  • Page 22 5. Transfer. If you are a Fortinet contracted and authorized reseller or distributor of Products, you maytransfer (not rent or lease unlessspecificallyagreed to in writing byFortinet) the Software to one end user on a permanent basis, provided that: (i) you ensure that your customer and the end user...
  • Page 23 Such repair or replacement willbe rendered byFortinet at an authorized Fortinet service facilityasdetermined byFortinet. The replacement Hardware need not be new or of an identicalmake, model, or part; Fortinet may, in itsdiscretion, replace the defective Hardware (or anypart thereof) with anyreconditioned Product that Fortinet reasonablydeterminesissubstantiallyequivalent (or superior) in allmaterialrespectsto the defective Hardware.
  • Page 24 Section 1 above, for anyamendment or other agreement to be binding on Fortinet, such amendment or other agreement must be signed byFortinet’sGeneralCounsel. No waiver willbe implied from conduct or failure to enforce rightsnor effective unlessin a writing...
  • Page 25 US $25.00, to GeneralPublic License Source Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modified software modules, you must also include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mailAddress, (e) Product purchased (if applicable), (f) Product SerialNumber (if applicable).
  • Page 26 copyof thisLicense. (Exception: if the Program itself isinteractive but doesnot normallyprint such an announcement, your workbased on the Program isnot required to print an announcement.) These requirementsapplyto the modified workasa whole. If identifiable sectionsof that workare not derived from the Program, and can be reasonablyconsidered independent and separate worksin themselves, then thisLicense, and itsterms, do not applyto those sectionswhen you distribute them asseparate works.
  • Page 27 Thissection isintended to make thoroughlyclear what isbelieved to be a consequence of the rest of thisLicense. 8. If the distribution and/or use of the Program isrestricted in certain countrieseither bypatentsor bycopyrighted interfaces, the originalcopyright holder who placesthe Program under thisLicense mayadd an explicit geographicaldistribution limitation excluding those countries, so that distribution ispermitted onlyin or among countriesnot thusexcluded.
  • Page 28 that refer to thisLicense and to the absence of anywarranty; and distribute a copyof thisLicense along with the Library. You maycharge a fee for the physicalact of transferring a copy, and you mayat your option offer warrantyprotection in exchange for a fee. 2.
  • Page 29 a) Accompanythe workwith the complete corresponding machine-readable source code for the Libraryincluding whatever changeswere used in the work(which must be distributed under Sections1 and 2 above); and, if the workisan executable linked with the Library, with the complete machine-readable "workthat usesthe Library", asobject code and/or source code, so that the user can modifythe Libraryand then relinkto produce a modified executable containing the modified Library.
  • Page 30 12. If the distribution and/or use of the Libraryisrestricted in certain countrieseither bypatentsor bycopyrighted interfaces, the originalcopyright holder who placesthe Libraryunder thisLicense mayadd an explicit geographicaldistribution limitation excluding those countries, so that distribution ispermitted onlyin or among countriesnot thusexcluded. In such case, thisLicense incorporatesthe limitation asif written in the body of thisLicense.
  • Page 31 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
