Webasto Blue Cool Classic Operation Manual

Operation Manual
WEBASTO BLUE COOL CLASSIC
Compact Air Condition Systems
General Information
Dear Webasto Customer!
This operation manual provides an overview about how to use the compact air condition system
and its control panel. An extensive documentation and description can be found in the installation
and service manual.
Safety Notes
In general, all A/C systems are running on 230 Volt AC. For all work at any of the components like
pumps, compressor, blowers or electronics, the power connection has to be interrupted. All work
at the electric wiring must be performed by specialized installers.
Before starting the air-condition system, check the following points:
• The closing valve at the sea-cock is open!
• The sea-water strainer is clean and filled with water!
• The boat has enough water under the body and the sea-cock is not blocked!
• All supply and return air grilles are open and not blocked by luggage, clothing or anything else!
• After switching on, water comes out of the over-board discharge. If not, switch off the system
and check the sea-water circuit again!

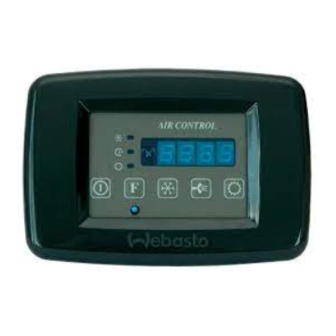

The control panel „Air-Control" for Compact Systems
The digital control panel is always factory pre-programmed and the secondary commands are
code-protected.
• If your Compact air-condition system has a heat cycle (easily detectable by the magnetic valve
next to the compressor), the cabin(s) can be heated until a sea-water temperature of about
10°C. The control panel will be pre-set with the function „Automatic".
• If your air-condition does not have a heat cycle, the function
Cool Cycle
Mode
Automatic Mode
Heat Cycle
Mode
On/Off
Function Lower
(F)
Values
(Snow flake)
„Cooling" is pre-set.
Blower Speed
Read-out
(0)
Higher
Values
(Sun)
