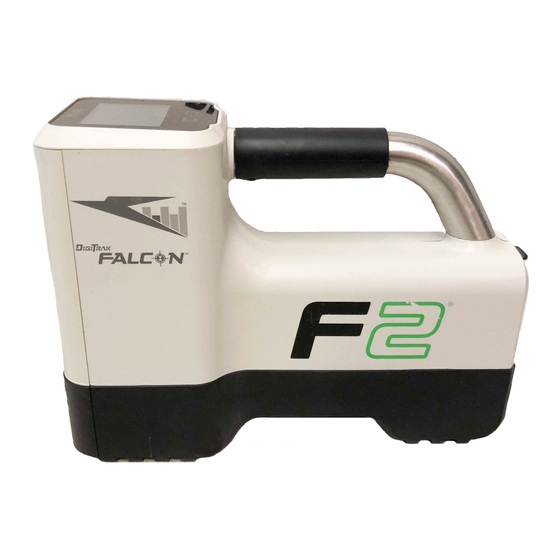

DigiTrak Falcon F2 Quick Start Manual

Locator system
Hide thumbs Also See for Falcon F2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

Power On Receiver

1. Install battery and click trigger to power on the
receiver.
2. Ensure the region number in the globe icons on
the startup screen and transmitter match.
3. Click the trigger to reach the Locate screen.
Receiver Locate Screen
Transmitter and receiver must be
Receiver Main Menu
Click to open the Main menu. Click between menu options, hold briefly
and release to select.
For DigiTrak remote displays, see separate manual or Quick Start Guide.
© 2016 Digital Control Incorporated, Oct
All rights reserved. 402-1021-21-C metric
1. Locate point (ball)
2. Receiver
3. Roll indicator
4. Roll/pitch update meter
5. Transmitter (Tx) pitch
6. Tx signal strength
7. Tx temperature
Paired
before data will display (page 3).
1. Telemetry channel
2. Frequency band
3. Battery strength
4. Frequency Optimizer
5. Power off
6. HAG
7. Calibration
8. Settings
9. Target depth
10. Target Steering
www.DigiTrak.com
1. IR port    2. Trigger
-
-
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Falcon F2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigiTrak Falcon F2

Summary of Contents for DigiTrak Falcon F2

  • Page 1 4. Frequency Optimizer 5. Power off 6. HAG 7. Calibration 8. Settings 9. Target depth 10. Target Steering For DigiTrak remote displays, see separate manual or Quick Start Guide. © 2016 Digital Control Incorporated, Oct www.DigiTrak.com All rights reserved. 402-1021-21-C metric...
  • Page 2 Steps Required Before Drilling 1. Optimize and measure active interference. 2. Select frequency bands. 3. Pair the receiver with the transmitter. 4. Check for background noise. 5. Calibrate both bands. 6. Check Above Ground Range. Optimize and Measure Active Interference 1.
  • Page 3 Select Frequency Bands 3. Click to move the selector to the band of your choice, hold briefly to select, then assign as either the Up or Down band (the band the Tx powers on with when facing Up or Up, Down, Cancel Down).

  • Page 4: Settings Menu

    Check Above Ground Range (AGR) 11. Always check AGR with a tape measure to verify depth readings for both bands at various distances up to the maximum expected bore depth. Distance readings should be within ±5%. To access the AGR screen later, select Calibration, 1PT CAL, and wait 15 seconds for the AGR screen.
  • Page 5 Changing Transmitter Frequency Band Switch between frequency bands during pre-bore calibration or mid-bore to overcome interference. A frequency band remains selected on both the receiver and transmitter even after a power cycle. Above Ground – Power-On Method Insert transmitter (Tx) batteries with the Tx pointing down (battery compartment on top, shown at right) to power on in the Down band.
  • Page 6 FO results when the receiver is attenuating the Tx signal for depths shallower than 3 m. This is normal. See the operator's manual if the signal strength is flashing, indicating extreme interference. ® Watch our DigiTrak training videos at www.youtube.com/dcikent Printed: 8/22/2017...
  • Page 7 Basic Locating 1. Find the FLP and RLP by centering the target ball in the box. 2. At the FLP, hold trigger for predicted depth reading. 3. Find the LL by centering the line in the box between the FLP and RLP (see Locate screen on previous page).
  • Page 8 4. Tx predicted depth 5. Tx battery strength 6. Horizontal distance between Tx and FLP Predicted Depth Screen For detailed information, see your system operator's manual, available at www.DigiTrak.com. If you have questions, contact your regional DCI office or U.S. Customer Service at 1.425.251.0559.
