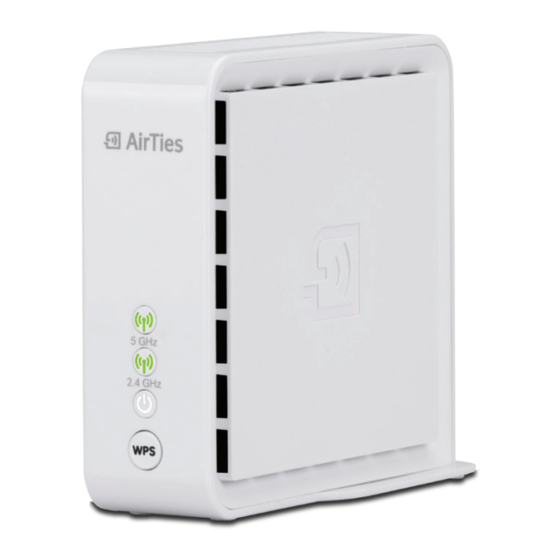

AirTies Air 4920 Quick Installation Manual
Home wi-fi mesh access point, expansion unit
Hide thumbs
Also See for Air 4920:
- Installation manual ,
- Quick installation manual (9 pages) ,
- Quick installation quide (8 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for AirTies Air 4920
Summary of Contents for AirTies Air 4920
- Page 1 Home Wi-Fi Mesh Access Point Air 4920 Expansion Unit Quick Installation Guide...
-
Page 2: Package Content
PACKAGE CONTENT AirTies Air 4920 Expansion Unit Power Adapter Ethernet Cable *Cable colour may vary. -
Page 3: Ports And Buttons
PORTS AND BUTTONS Wireless 5GHz Status LED Wireless 2.4GHz Status LED Power On/Off Status LED WPS Button Gigabit Ethernet Ports Power On/Off Button Reset Button External Power Adapter... - Page 4 LED LIGHT BEHAVIOUR Conditions Timing Indicators Colour Behaviour OFF/Dark Power OFF White Power ON Solid (No blinking) White Device is not ready Blinking WLAN is active and the Access Point has 50ms OFF Green an active strong MESH connection on Blinking 5000ms ON the Access Point...
- Page 5 State Explanation Recommended Action(s) Identifier Power the device on if desired. No other action required. No action required. If unit was just powered on, then please wait for at least 2 minutes for the unit to complete its boot process. No action required.
- Page 6 ADDING THE EXPANSION UNIT TO AN EXISTING MESH Please remove protective plastic cover from the product before installation. STEP Open the AirTies Wi-Fi application on your mobile device. STEP Select My Network from the menu.
- Page 7 STEP Click on + AirTies Unit. STEP Follow the instructions on your mobile application to complete your setup. This process should only take a couple of minutes.
- Page 8 Tablet, etc.) will present the AirTies Expansion Unit setup page. • On the AirTies Expansion Unit’ s setup page, insert the Wi-Fi Name (SSID) and Password, of your choice, and click “Save”. The pre-configured (factory) Wi-Fi Name (SSID) and Password can be found on the bottom of the unit.
- Page 9 RETURNING UNITS TO FACTORY SETTINGS: To return the unit to factory settings, power on the unit, wait for the Power LED to be lit solid white and press down on the reset button (in a small opening on the back) for 10 – 12 seconds. A metal paperclip is a good choice to do this. When the reset process is successfully triggered, the LEDs in the front will temporarily “blink”...
-
Page 10: Product Support
Where such terms entitle you to the source code of said software, that source code will be made available at cost upon request from AirTies. To obtain a copy of said source code, please send your request in writing via email to osrb@airties.com or via snail mail to: AirTies Wireless Communications Mithat Uluünlü... -
Page 11: Eu Declaration Of Conformity
European Directives: RED 2014/53/EU EcoDesign 2009/125/EC RoHs 2011/65/EU Signed for and on behalf of : AirTies Wireless Networks Metin İsmail Taşkın 8 of February 2017, Istanbul (Head Off ice) CTO (Chief Technology Off icer) (Name, Job, Function&Signature) -
Page 12: Quick Installation Guide
Home Wi-Fi Mesh Access Point Air 4920 Expansion Unit Quick Installation Guide Designed in Turkey MP-0000063436...
