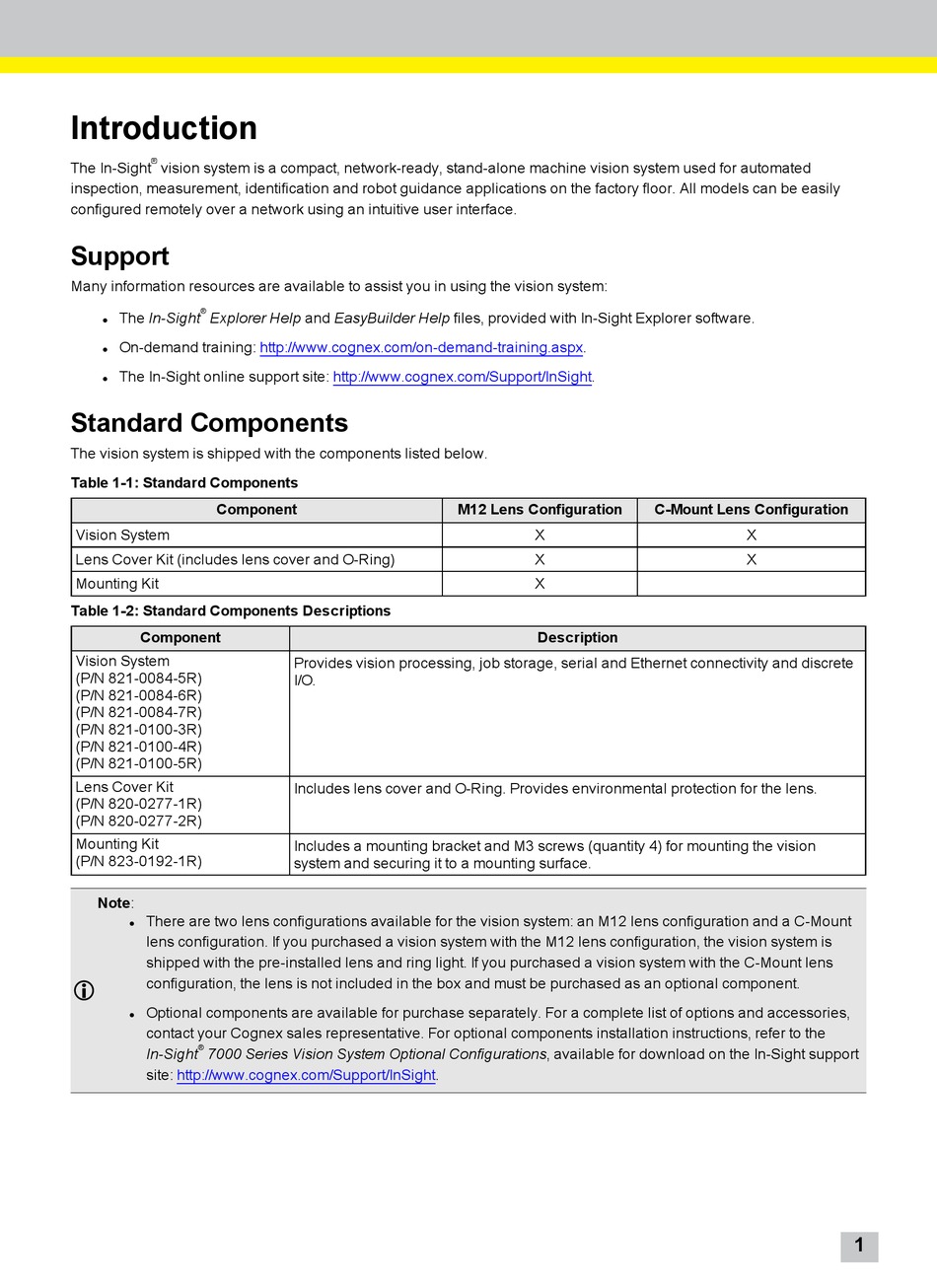

Introduction

®
The In-Sight vision system is a compact, network-ready, stand-alone machine vision system used for automated
inspection, measurement, identification and robot guidance applications on the factory floor. All models can be easily
configured remotely over a network using an intuitive user interface.

Support

Many information resources are available to assist you in using the vision system:
®
The In-Sight Explorer Help and EasyBuilder Help files, provided with In-Sight Explorer software.
l
On-demand training: http://www.cognex.com/on-demand-training.aspx.
l
The In-Sight online support site: http://www.cognex.com/Support/InSight.
l

Standard Components

The vision system is shipped with the components listed below.
Table 1-1: Standard Components
Component
Vision System
Lens Cover Kit (includes lens cover and O-Ring)
Mounting Kit
Table 1-2: Standard Components Descriptions
Component
Vision System
(P/N 821-0084-5R)
(P/N 821-0084-6R)
(P/N 821-0084-7R)
(P/N 821-0100-3R)
(P/N 821-0100-4R)
(P/N 821-0100-5R)
Lens Cover Kit
(P/N 820-0277-1R)
(P/N 820-0277-2R)
Mounting Kit
(P/N 823-0192-1R)
Note:
There are two lens configurations available for the vision system: an M12 lens configuration and a C-Mount
l
lens configuration. If you purchased a vision system with the M12 lens configuration, the vision system is
shipped with the pre-installed lens and ring light. If you purchased a vision system with the C-Mount lens
configuration, the lens is not included in the box and must be purchased as an optional component.
Optional components are available for purchase separately. For a complete list of options and accessories,
l
contact your Cognex sales representative. For optional components installation instructions, refer to the
®
In-Sight 7000 Series Vision System Optional Configurations, available for download on the In-Sight support
site: http://www.cognex.com/Support/InSight.
M12 Lens Configuration
Provides vision processing, job storage, serial and Ethernet connectivity and discrete
I/O.
Includes lens cover and O-Ring. Provides environmental protection for the lens.
Includes a mounting bracket and M3 screws (quantity 4) for mounting the vision
system and securing it to a mounting surface.
C-Mount Lens Configuration
X
X
X
Description
X
X
1
