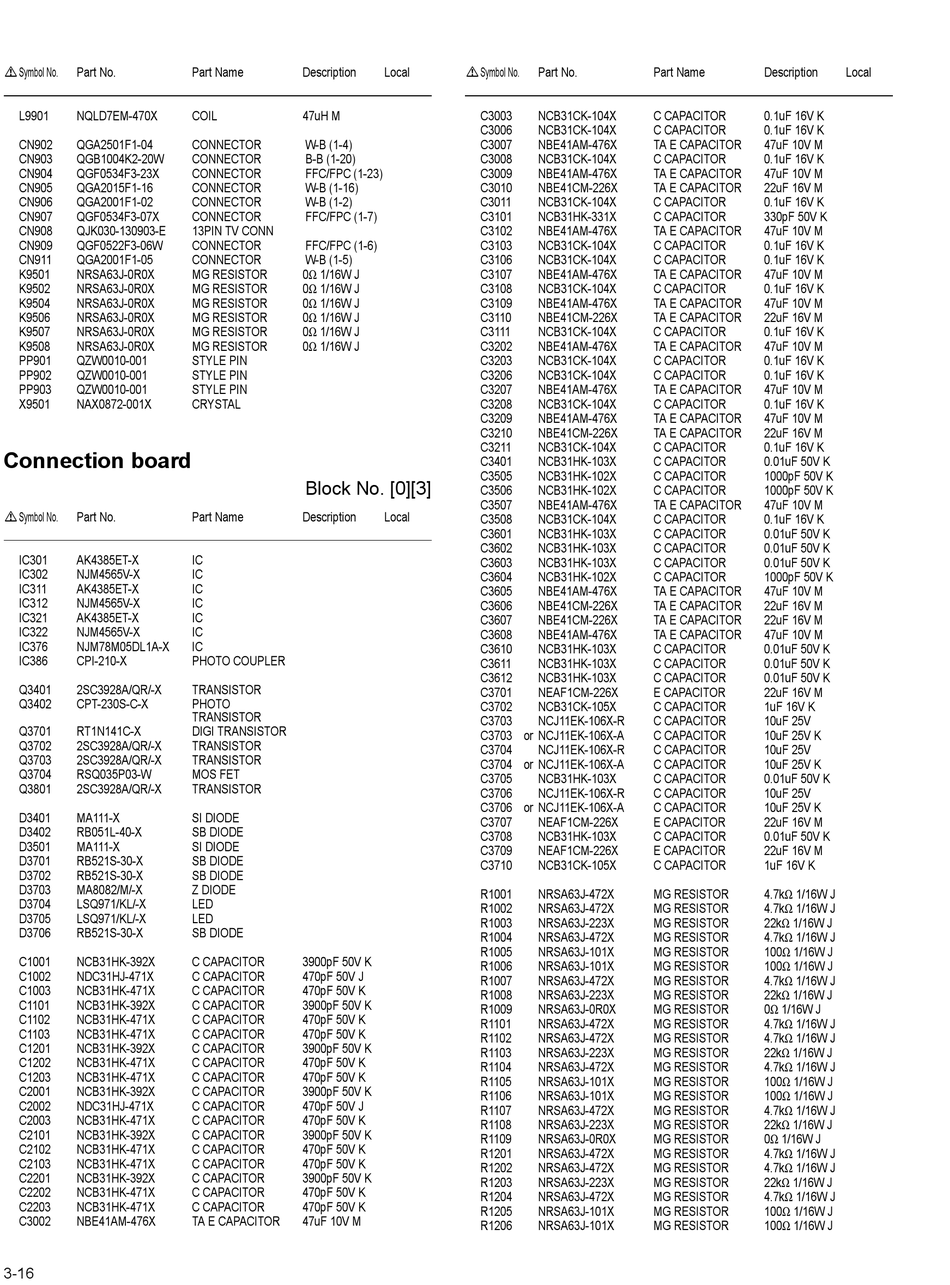

JVC KW-AVX900EU Service Manual page 80

 Symbol No. Part No.
L9901 NQLD7EM-470X
CN902 QGA2501F1-04
CN903 QGB1004K2-20W
CN904 QGF0534F3-23X
CN905 QGA2015F1-16
CN906 QGA2001F1-02
CN907 QGF0534F3-07X
CN908 QJK030-130903-E
CN909 QGF0522F3-06W
CN911 QGA2001F1-05
K9501 NRSA63J-0R0X
K9502 NRSA63J-0R0X
K9504 NRSA63J-0R0X
K9506 NRSA63J-0R0X
K9507 NRSA63J-0R0X
K9508 NRSA63J-0R0X
PP901 QZW0010-001
PP902 QZW0010-001
PP903 QZW0010-001
X9501 NAX0872-001X
Connection board
 Symbol No. Part No.
IC301 AK4385ET-X
IC302 NJM4565V-X
IC311 AK4385ET-X
IC312 NJM4565V-X
IC321 AK4385ET-X
IC322 NJM4565V-X
IC376 NJM78M05DL1A-X
IC386 CPI-210-X
Q3401 2SC3928A/QR/-X
Q3402 CPT-230S-C-X
Q3701 RT1N141C-X
Q3702 2SC3928A/QR/-X
Q3703 2SC3928A/QR/-X
Q3704 RSQ035P03-W
Q3801 2SC3928A/QR/-X
D3401 MA111-X
D3402 RB051L-40-X
D3501 MA111-X
D3701 RB521S-30-X
D3702 RB521S-30-X
D3703 MA8082/M/-X
D3704 LSQ971/KL/-X
D3705 LSQ971/KL/-X
D3706 RB521S-30-X
C1001 NCB31HK-392X
C1002 NDC31HJ-471X
C1003 NCB31HK-471X
C1101 NCB31HK-392X
C1102 NCB31HK-471X
C1103 NCB31HK-471X
C1201 NCB31HK-392X
C1202 NCB31HK-471X
C1203 NCB31HK-471X
C2001 NCB31HK-392X
C2002 NDC31HJ-471X
C2003 NCB31HK-471X
C2101 NCB31HK-392X
C2102 NCB31HK-471X
C2103 NCB31HK-471X
C2201 NCB31HK-392X
C2202 NCB31HK-471X
C2203 NCB31HK-471X
C3002 NBE41AM-476X
3-16
Part Name Description
COIL 47uH M
CONNECTOR W-B (1-4)
CONNECTOR B-B (1-20)
CONNECTOR FFC/FPC (1-23)
CONNECTOR W-B (1-16)
CONNECTOR W-B (1-2)
CONNECTOR FFC/FPC (1-7)
13PIN TV CONN
CONNECTOR FFC/FPC (1-6)
CONNECTOR W-B (1-5)
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 0Ω 1/16W J
STYLE PIN
STYLE PIN
STYLE PIN
CRYSTAL
Block No. [0][3]
Part Name Description
IC
IC
IC
IC
IC
IC
IC
PHOTO COUPLER
TRANSISTOR
TRANSISTOR
DIGI TRANSISTOR
TRANSISTOR
TRANSISTOR
MOS FET
TRANSISTOR
SI DIODE
SB DIODE
SI DIODE
SB DIODE
SB DIODE
Z DIODE
LED
LED
SB DIODE
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V J
C CAPACITOR 470pF 50V K
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V J
C CAPACITOR 470pF 50V K
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 3900pF 50V K
C CAPACITOR 470pF 50V K
C CAPACITOR 470pF 50V K
TA E CAPACITOR 47uF 10V M
Local  Symbol No. Part No.
C3003 NCB31CK-104X
C3006 NCB31CK-104X
C3007 NBE41AM-476X
C3008 NCB31CK-104X
C3009 NBE41AM-476X
C3010 NBE41CM-226X
C3011 NCB31CK-104X
C3101 NCB31HK-331X
C3102 NBE41AM-476X
C3103 NCB31CK-104X
C3106 NCB31CK-104X
C3107 NBE41AM-476X
C3108 NCB31CK-104X
C3109 NBE41AM-476X
C3110 NBE41CM-226X
C3111 NCB31CK-104X
C3202 NBE41AM-476X
C3203 NCB31CK-104X
C3206 NCB31CK-104X
C3207 NBE41AM-476X
C3208 NCB31CK-104X
C3209 NBE41AM-476X
C3210 NBE41CM-226X
C3211 NCB31CK-104X
C3401 NCB31HK-103X
C3505 NCB31HK-102X
C3506 NCB31HK-102X
C3507 NBE41AM-476X
Local
C3508 NCB31CK-104X
C3601 NCB31HK-103X
C3602 NCB31HK-103X
C3603 NCB31HK-103X
C3604 NCB31HK-102X
C3605 NBE41AM-476X
C3606 NBE41CM-226X
C3607 NBE41CM-226X
C3608 NBE41AM-476X
C3610 NCB31HK-103X
C3611 NCB31HK-103X
C3612 NCB31HK-103X
C3701 NEAF1CM-226X
C3702 NCB31CK-105X
C3703 NCJ11EK-106X-R
C3703 or NCJ11EK-106X-A
C3704 NCJ11EK-106X-R
C3704 or NCJ11EK-106X-A
C3705 NCB31HK-103X
C3706 NCJ11EK-106X-R
C3706 or NCJ11EK-106X-A
C3707 NEAF1CM-226X
C3708 NCB31HK-103X
C3709 NEAF1CM-226X
C3710 NCB31CK-105X
R1001 NRSA63J-472X
R1002 NRSA63J-472X
R1003 NRSA63J-223X
R1004 NRSA63J-472X
R1005 NRSA63J-101X
R1006 NRSA63J-101X
R1007 NRSA63J-472X
R1008 NRSA63J-223X
R1009 NRSA63J-0R0X
R1101 NRSA63J-472X
R1102 NRSA63J-472X
R1103 NRSA63J-223X
R1104 NRSA63J-472X
R1105 NRSA63J-101X
R1106 NRSA63J-101X
R1107 NRSA63J-472X
R1108 NRSA63J-223X
R1109 NRSA63J-0R0X
R1201 NRSA63J-472X
R1202 NRSA63J-472X
R1203 NRSA63J-223X
R1204 NRSA63J-472X
R1205 NRSA63J-101X
R1206 NRSA63J-101X
Part Name Description
C CAPACITOR 0.1uF 16V K
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
TA E CAPACITOR 22uF 16V M
C CAPACITOR 0.1uF 16V K
C CAPACITOR 330pF 50V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
TA E CAPACITOR 22uF 16V M
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
TA E CAPACITOR 47uF 10V M
TA E CAPACITOR 22uF 16V M
C CAPACITOR 0.1uF 16V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 1000pF 50V K
C CAPACITOR 1000pF 50V K
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.1uF 16V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 1000pF 50V K
TA E CAPACITOR 47uF 10V M
TA E CAPACITOR 22uF 16V M
TA E CAPACITOR 22uF 16V M
TA E CAPACITOR 47uF 10V M
C CAPACITOR 0.01uF 50V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 0.01uF 50V K
E CAPACITOR 22uF 16V M
C CAPACITOR 1uF 16V K
C CAPACITOR 10uF 25V
C CAPACITOR 10uF 25V K
C CAPACITOR 10uF 25V
C CAPACITOR 10uF 25V K
C CAPACITOR 0.01uF 50V K
C CAPACITOR 10uF 25V
C CAPACITOR 10uF 25V K
E CAPACITOR 22uF 16V M
C CAPACITOR 0.01uF 50V K
E CAPACITOR 22uF 16V M
C CAPACITOR 1uF 16V K
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 22kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 100Ω 1/16W J
MG RESISTOR 100Ω 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 22kΩ 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 22kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 100Ω 1/16W J
MG RESISTOR 100Ω 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 22kΩ 1/16W J
MG RESISTOR 0Ω 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 22kΩ 1/16W J
MG RESISTOR 4.7kΩ 1/16W J
MG RESISTOR 100Ω 1/16W J
MG RESISTOR 100Ω 1/16W J
Local
