Important Notes:
 Where a HDMI lead is connected directly to the customer's surround sound
system and the surround system is directly connected to the customer's TV
via a HDMI lead, then there is no requirement to connect a S/PDIF or
TOSLINK lead to the iQ3.
 The iQ3's S/PDIF Digital Audio Output & HDMI Digital Audio Output settings
must be set to AC3
 With this set up there is no volume control from the iQ3's HDMI Digital Audio
Output.
 The iQ3 currently will not support audio through some if not all HDMI Audio
Return Channel systems (ARC). In this instance
TV via HDMI.
7.12

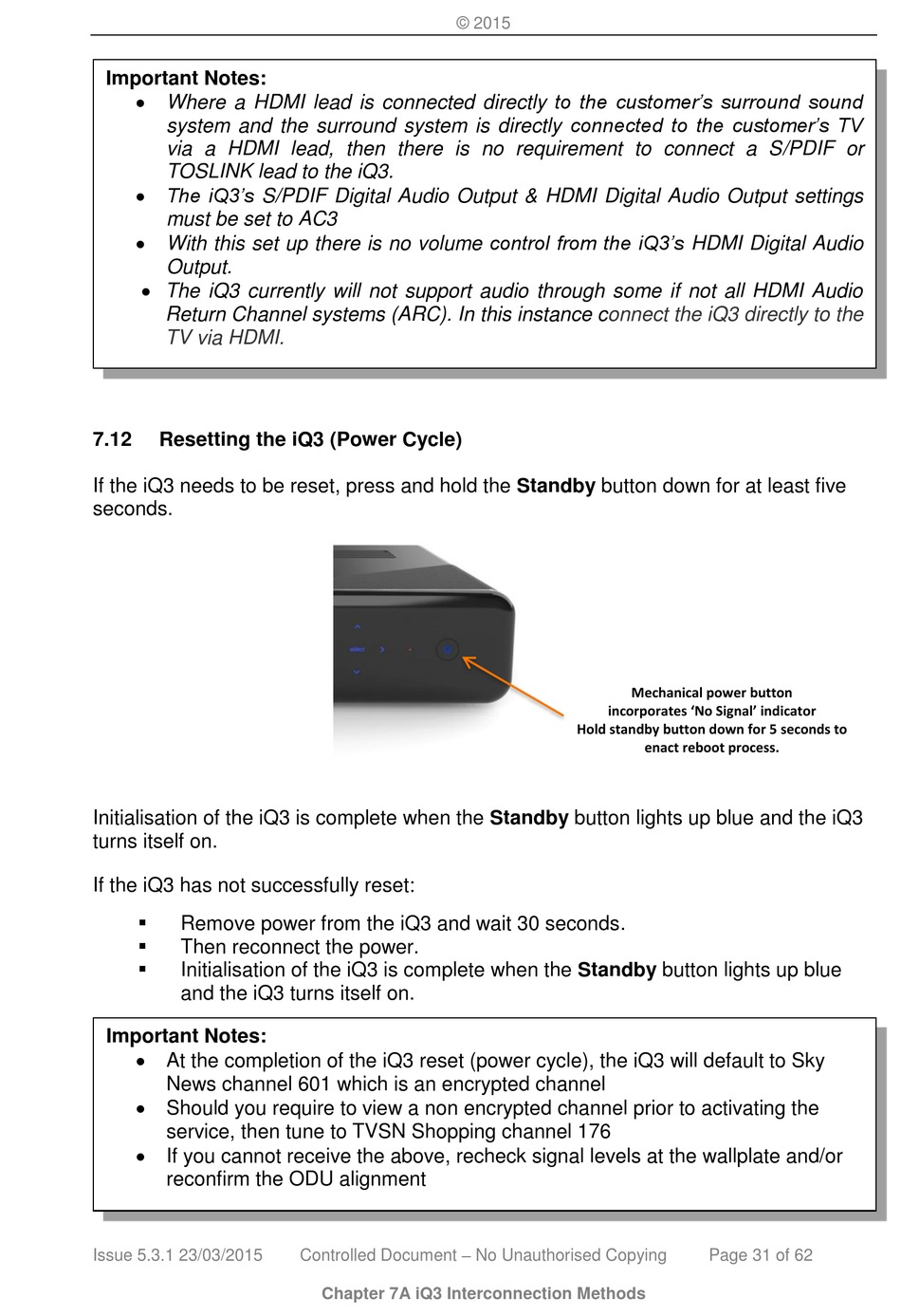

Resetting the iQ3 (Power Cycle)

If the iQ3 needs to be reset, press and hold the Standby button down for at least five
seconds.
Initialisation of the iQ3 is complete when the Standby button lights up blue and the iQ3
turns itself on.
If the iQ3 has not successfully reset:

Remove power from the iQ3 and wait 30 seconds.

Then reconnect the power.

Initialisation of the iQ3 is complete when the Standby button lights up blue
and the iQ3 turns itself on.
Important Notes:
 At the completion of the iQ3 reset (power cycle), the iQ3 will default to Sky
News channel 601 which is an encrypted channel
 Should you require to view a non encrypted channel prior to activating the
service, then tune to TVSN Shopping channel 176
 If you cannot receive the above, recheck signal levels at the wallplate and/or
reconfirm the ODU alignment
Issue 5.3.1 23/03/2015
© 2015
Controlled Document – No Unauthorised Copying
Chapter 7A iQ3 Interconnection Methods
connect the iQ3 directly to the
Mechanical power button
incorporates 'No Signal' indicator
Hold standby button down for 5 seconds to
enact reboot process.
Page 31 of 62
