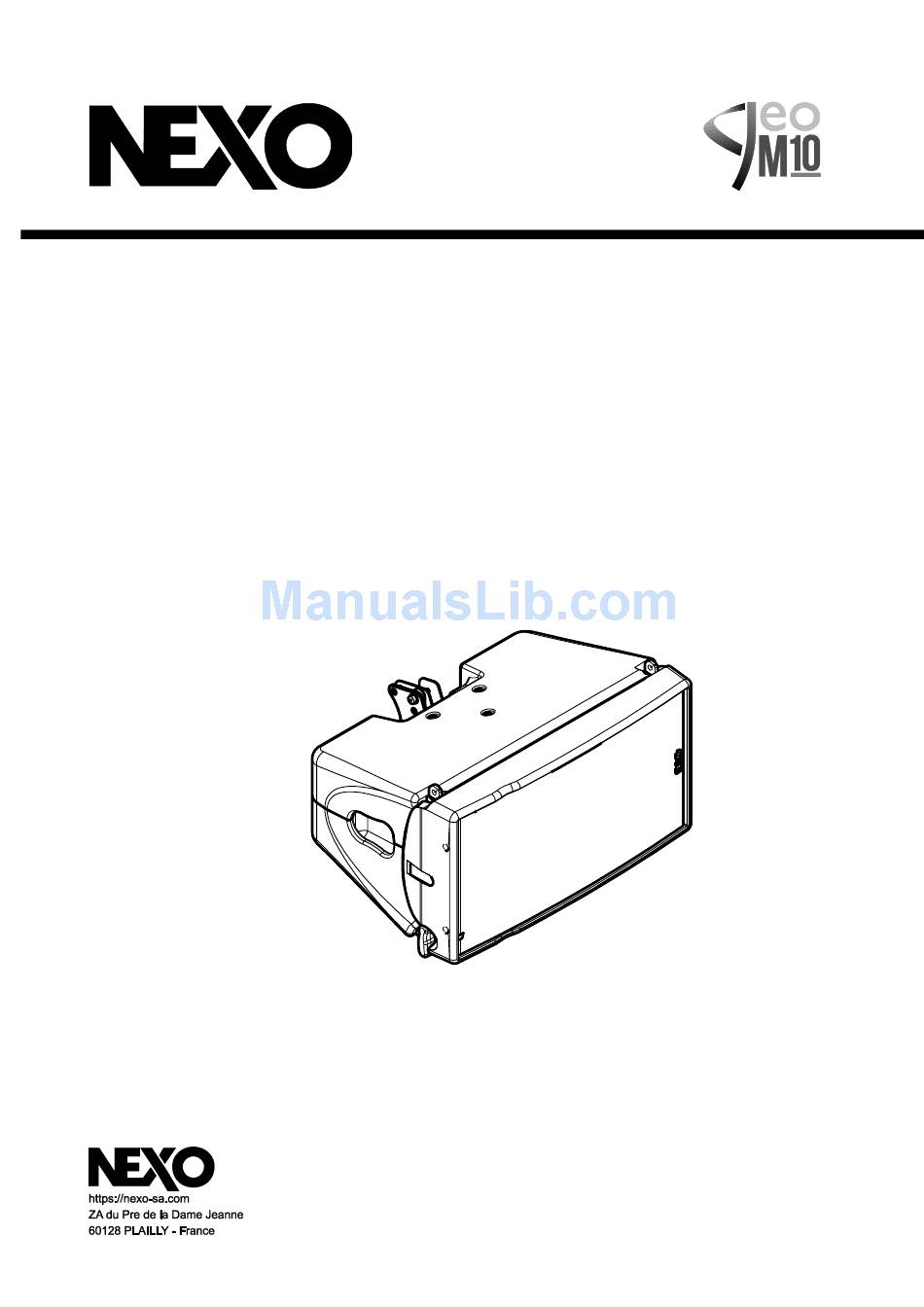

- Page 1 DP2657-01a-DI GEO M10 Series GEOM1012 – GEOM1025 User manual...
-
Page 2: Table Of Contents
ARRAY EQ................................. 14 MAINTENANCE ............................... 15 TECHNICAL SPECIFICATIONS ..........................16 10 USER NOTES ................................17 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. -
Page 4: Geom10 Rigging
Page 4/17 GEOM10 RIGGING GEOM10 RIGGING Assembly Front On both side, pull AutoRig in auto lock position. Position GEOM10 on top, front points will lock automatically. Ensure that all AutoRig systems are locked. Back Unlock GEOM10 link bar. Pull on the latch to engage the guide in the slot. Adjust the angle with the quick release pin 0820AV. - Page 5 GEOM10 RIGGING Page 5/17 Disassembly Front (stacked or unflown) On both side, pull AutoRig and holding the knob. AutoRig remains in the open position. Back Remove the quick release pin 0820AV. Unlock the GEOM10 link bar by pulling the latch. SAFETY: You can replace one of the four screws with an eyebolt (M8), and use a sling (apply thread lock on the eyebolt).
-
Page 6: Geom10 - Accessories
All GEOM10 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling GEOM10 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire GEOM10 accessory range if any component is purchased from different supplier. - Page 7 GEOM10 – ACCESSORIES Page 7/17 VNT-GSTKM10S – VNT-GSTKM10L VNT-MNSTKM10 - Rated for a maximum of 3 GEOM10 on the top of MSUB15. GMT-LBUMPM10 - Rated for a maximum of 12 GEOM10. - Usable with GMT-EXBARM10L for a one rigging point. GMT-EXBARM10L...
- Page 8 GEOM10 – ACCESSORIES Page 8/17 GMT-FLGM10 - Pair of flanges for 120°horizontal directivity. - No tools, magnetic clamp. GMT-3CASEM10 GMT-6CASEM10...
-
Page 9: Description
Page 9/17 DESCRIPTION GEOM1012 and GEOM1025 are a compact high-technology line array, 2 way passive, with a 10’’ LF and a 1.4’’ Without tools, you can change the HF horizontal directivity by adding a pair of magnetic flanges. GEOM1012 : 12° vertical dispersion GEOM1025 : 25°... -
Page 10: Preset Geom10
PRESET GEOM10 Please consult www.nexo-sa.com for NEXO TD Controllers firmware information. For the GEOM1012, with or without directivity flanges, the following setups are available: o Setup for one stand-alone box, with high-pass at 63, 75, 85, 95 or 120 Hz. - Page 11 PRESET GEOM10 Page 11/17 o Possibilities to use 2-3Box setup in stack configuration using MSUB15 in OMNI or CARDIO mode with 1 Back and 2 front and 3 GEOM10 on top of them, application venue up to 15 meters, default cross over 85 Hz but small overlap could have impact if needed, for example (MSUB15 120 Hz and GEOM10 75 Hz).
- Page 12 Page 12/17 PRESET GEOM10 o For long throw stacking application on floor or on MSUB15, up to 6 boxes used at 63 Hz without Sub and 85 Hz with MSUB15 at 85 Hz. 7 - 12 Boxes o For very long throw application used with Sub either ground stack or flying, recommended MSUB15 cardioid mode, cross over MSUB15 95 Hz and 12 GEOM10 cross over 75 Hz for maximum impact.
- Page 13 PRESET GEOM10 Page 13/17 o Ground Stack Sub design is: GEOM10 MON and MSUB15 MON o Minimum phase setup not compatible with others. o Used for high power stage Monitor, DJ Monitor, Drum Fill, Stack side. o Always use same cross over between GEOM10 and MSUB15, no overlap possible without doing phase adjustment by yourself.
-
Page 14: Array Eq
Page 14/17 ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): GEOM10 GEOM10 STACK MON... -
Page 15: Maintenance
Angle it to get out the driver. wave guide. Tightening torque for the 10’’: 3.5 Nm Spare parts MARK QUANTITY REFERENCE DESIGNATION 05LEXM1012 Lexan GEOM1012 black 05LEXM1012-PW Lexan GEOM1012 white 05LEXM1025 Lexan GEOM1025 black 05LEXM1025-PW Lexan GEOM1025 white 05LEXWAR Lexan Warning... -
Page 16: Technical Specifications
Page 16/17 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS GEOM10 WITH NEXO ELECTRONICS Model GEOM10 59Hz – 20kHz Frequency range (±6dB) Sensibility (1W / 1m) 100dB SPL Nominal Peak SPL Level (1m) 136dB Peak Operating voltage 30 Vrms (180 Vpeak) 12° pour GEOM1012 Vertical Dispersion 25°... -
Page 17: 10 User Notes
USER NOTES Page 17/17 10 USER NOTES France Nexo S.A. Parc d’activité de la Dame Jeanne F-60128 PLAILLY Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr https://nexo-sa.com...
