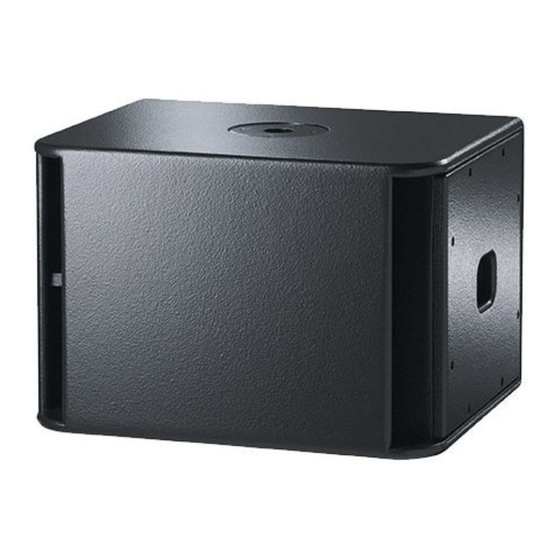

- Page 1 PS Series PS Series PS Series PS Series PS8 - PS8TD - LS400 - PS8Amp PS10 - PS10TD - LS500 - PS10Amp PS15 - PS15Bass - PS15TDMK2 - LS1200 User Manual...
- Page 2 ___________________________________________________________________________________________________ Norms: TDcontrollers Norms: TDcontrollers Norms: TDcontrollers Norms: TDcontrollers Those equipments have been tested and found to comply with the following European and international Standards for electromagnetic Compatibility and electrical Safety: • Electrical safety CEI65 • Radiated & conduction emission EN55022: Information technology equipment. Radio disturbance characteristics.
-
Page 3: Table Of Contents
................................. 26 ..............................28 TAND ALONE MPLIFIERS PS8, PS8TD & LS400 : SPECIFICATIONS, CURVES & DIAGRAMS ..............30 PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS ..............33 PS15, PS15TD MKII & LS1200 : SPECIFICATIONS, CURVES & DIAGRAMS ............. 37... -
Page 4: Introduction
INTRODUCTION ___________________________________________________________________________________________________ INTRODUCTION Thank you for selecting NEXO PS Series equipment. This manual will provide you with useful and important information about your PS speaker system: • PS8 & optional LS400 sub bass • PS10 & optional LS500 sub bass •... - Page 5 ___________________________________________________________________________________________________ These controllers are not interchangeable. Each one is precisely matched to the corresponding cabinets. Excepted NX241 that covers the entire NEXO range. NOTE: Earlier PS15TDs (up to serial number 1518) were designed for PS15s without the Impedance Compensation Network (ICN) (serial number < 23853) and the LS1000 Sub.
- Page 6 LOUDSPEAKERS ___________________________________________________________________________________________________ On the PS8, LS400, PS10, LS500, PS15 (used in passive mode), PS15 Bass and LS1200, the connectors are wired as follows: Speakon Connector Signal ð pin 1+ Sub bass + (optional) ð pin 1- Sub bass - (optional) ð...
-
Page 7: Asymmetrical Horn Configuration
CAD software and stage monitoring. The specific dispersion of the PS8, PS10 & PS15 horn can be seen on figure 1 ("front of house" configuration): •... -
Page 8: Active / Passive Configuration (Ps15 Only)
LOUDSPEAKERS ___________________________________________________________________________________________________ « Stage Monitor » Configuration For stage monitors the required coverage is always wider when performers are close to the wedge (above the horn axis) 100˚ than when they move away from it (below the horn axis). For floor monitor use the horn must be rotated with its "wide"... -
Page 9: Sub Bass Use (Optional)
LOUDSPEAKERS ___________________________________________________________________________________________________ Sub bass Use (optional) General Recommendations The Sub bass section of the TDcontroller is monophonic (the Left and Right channels are summed at the input of the Controller). In a Stereo sub bass installation using 2 TDcontrollers, bear in mind that when only one Controller input is used, this will lower the gain of the Sub Output by -6 dB (as the nominal level is calculated for a 2 input use). -
Page 10: Accessories
Stand, Mast & U Coupler PS8, PS10 and PS15 have a built in 35 mm (1 3/8”) diameter stand adapter. Cabinets can be positioned directly on a general-purpose speaker stand or on a mast inserted in the stand adapter fitted on top of the LS400, LS500 &... - Page 11 FS0081-003 FS0081-003 This adapter is designed for use with the PS8 cabinet. It allows for Horizontal mounting of the cabinet on a stand or a mast (∅35mm). It can be used along with...
-
Page 12: Use & Maintenance
Use & Maintenance Checking the PS10 & PS15 internal fuses The following paragraph concerns only the PS10 and PS15 cabinets, since the PS8 is fitted with a re- settable fuse that does not require maintenance. The function of these fuses is to protect the passive crossover against overheating if a speaker component is accidentally disconnected or fails open circuit. -
Page 13: Troubleshooting
Nexo loudspeakers and electronics are covered against defects in workmanship or materials for a period of two (2) years from the original date of purchase. At the discretion of Nexo, the defective item will be repaired / replaced with no charge for materials / labor. The item to be repaired must be adequately packaged and dispatched, prepaid, to an authorized Nexo distributor / service center. -
Page 14: Tdcontroller User Guide
P.14 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ TDcontroller USER GUIDE This section describes the Analogue TDcontroller PS8TD, PS10, and PS15MK2. For information concerning the NX241 Digital TDcontroller, please refer to the NX241 Operating Manual. Read before use The PS TDcontroller is designed to be used with PS and LSub speaker cabinets. Its main functions are: •... -
Page 15: Ps15Td Mk2: Compatibility With Former Ps15Td, Ls1000 & Ps15 Cabinets
LS1000s cannot withstand the amount of energy provided by the new electrical cross-over. LS1000 above serial number 560 are equipped with the new 18’’ NEXO driver and with these units it is possible to use the TDcontroller MK2. Keep in mind that the cross-over is not tuned for the LS1000 architecture and sound quality will be not be as good as with the LS1200. - Page 16 It does not affect the sub output, which will always be a filtered sub signal. (This is therefore not a Sub on/off button although the older PS15TD operates as the PS8/PS10 units described above). In the « Overlap » position, the PS15 is exploited to its maximum capability. This position should be used if the system is being used without a LS1200.
- Page 17 P.17 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ PS15 Gain control (PS15TD only) Two 12 dB range trimmers are provided to set the gain of L&R (HF & LF in active mode) channels. This adjustment can be useful in active mode where it is sometimes necessary to correct the gain difference of amplifiers which have different power and constant sensitivity.
-
Page 18: Rear Panel
P.18 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ Rear Panel Audio Inputs The audio inputs are two 3-pin female XLR connectors located in the area labeled Audio IN, L and R being the left and right channels respectively. When using the active mode on the PS15TD only the Left channel XLR connector is used. - Page 19 P.19 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ to ground. When used with an amplifier with balanced inputs, the wiring of the output XLR is simply pin to pin (1 to 1, etc.), the polarity of the signal being preserved if the source connected to the input is also balanced (see previous section).
-
Page 20: Following Functions Concern Ps15Td Mk2 Only
NB : The PS TDcontroller is insensitive to the polarity of the wiring of the inputs, contrary to some other NEXO Controllers. It is highly recommended that the user read the all of the information provided below regarding the wiring of Sense lines (0.0.0 : Recommendations for wiring the Sense lines). - Page 21 P.21 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ Fuse holder (PS15) When necessary, the fuse should be replaced by a fuse of the same rating • for 230V : T100mAL250V • for 115V : T200mAL250V Mains Socket (PS15) WARNING : This appliance must be earthed. The socket is compatible with mains supply flexible cords which comply with IEC Publication 227.
-
Page 22: Setting-Up Advice
P.22 TDCONTROLLER USER GUIDE ___________________________________________________________________________________________________ If your are using this TDcontroller with a PS15 cabinet without an ICN, the ICN jumpers must be set to the « A » position (left side). If not, a boost of 3dB at 1400Hz will result, affecting the sound quality of your system. -
Page 23: Tdcontroller Reference Guide
P.23 TDCONTROLLER REFERENCE GUIDE ___________________________________________________________________________________________________ TDcontroller REFERENCE GUIDE Linear section The characteristics of the linear section are independent of signal level, as opposed to the servo control functions described in next paragraph. Subsonic and VHF filtering Low and high-pass filters are used to remove signals out of the usable frequency range, eliminating sub- and ultra-sonic components that could possibly degrade the performance of the Controller and amplifiers. - Page 24 P.24 TDCONTROLLER REFERENCE GUIDE ___________________________________________________________________________________________________ • One operates on the whole frequency range (wide band VCA). • The other element works selectively as a dynamic equalizer (LF-VCEQ). Depending on the nature and origin of the servo signals, either one or the 2 combined elements is used to process the Audio signal.
- Page 25 P.25 TDCONTROLLER REFERENCE GUIDE ___________________________________________________________________________________________________ Electronic block diagram PS8TD & PS10TDcontroller Block Diagramm...
-
Page 26: Amplifiers
AMPLIFIERS ___________________________________________________________________________________________________ AMPLIFIERS PS8Amp & PS10Amp The PS8Amp and PS10Amp are power amplifiers tailored for PS8 and PS10 system and their respective LS400 & LS500 sub bass requirements. Their structure and power being identical, they share the same specifications: •... -
Page 27: Level Control
P.27 AMPLIFIERS ___________________________________________________________________________________________________ Outputs The two Speakon connectors are automatically configured with a visual indication of the current wiring. Configuration can be made while the system is operating. • Sub On = 3 amplifier channels : The two PS10 Stereo channels are assigned to poles 2+ and 2- on the L &... -
Page 28: Stand Alone Amplifiers
Stand alone Amplifiers Recommended Power NEXO recommends high power amplifiers in all cases, budget constraints being the only reason to select lower power amplifiers. If a problem occurs on an installation without protection, the use of a lower power amplifier generating half their rated output power (-3dB) will not prevent possible damage. This is due to... - Page 29 Gain value NEXO recommends low gain amplifiers: +26dB is recommended, as it is both adequately low and quite common. This gain level considerably improves signal to noise ratio and allows all preceding electronic gear, including the TDcontroller, to operate at an optimum level. Remember that using a higher gain amplifier will proportionally raise the noise floor level by the same amount.
-
Page 30: Ps8, Ps8Td & Ls400 : Specifications, Curves & Diagrams
PS8 are wired 2- & 2+ on Speakon connectors, LS400 on 1- & 1+. Loop through Speakons are present on both. Single identical cables can thus be used to loop through combinations of up to 2 x PS8 & 1 x LS400 in no particular order. - Page 31 As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice. [a] Response curves & data : Anechoïc Far Field for the PS8 + PS8TD. Half-Space Anechoïc radiation for the LS400 + PS8TD. [b] Sensitivity & Peak SPL data : these will depend on spectral distribution and crest factor of program material. Measured with band limited Pink Noise. Nominal refers to Voice Decade (300 Hz - 3 kHz), Wideband to the specified ±3dB range.
- Page 32 P.32 PS8, PS8TD & LS400 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ ON AXIS RESPONSE (dB) TOTAL DISTORTION (%) 0.1% On Axis Responses PS8 & PS8 + LS400. PS8+LS400 : THD for 110dBSPL @ 1m. IMPEDANCE (Ohms) All measurements made with PS8TDcontroller.
-
Page 33: Ps10, Ps10Td & Ls500 : Specifications, Curves & Diagrams
P.33 PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS SYSTEM SPECIFICATIONS PS10 with PS10 TDcontroller LSub 500 with PS10 TDcontroller Frequency Response [a] 65 Hz - 20 kHz ±3dB 40 Hz - 110 Hz ±3dB Usable Range @-6dB [a] 58 Hz - 21 kHz... - Page 34 LS500 As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice. [a] Response curves & data : Anechoïc Far Field for the PS10 + PS10TD. Half-Space Anechoïc radiation for the LS500 + PS10TD.
- Page 35 P.35 PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ PS10 Curves ON AXIS RESPONSE (dB) TOTAL DISTORSION (%) 10.000 -10.00 -20.00 -30.00 c 1 : On axis responses PS10 & PS10 + LS500 c 2 : PS10 + LS500 : THD for 110 dBSPL @ 1m. IMPEDANCE (Log Z) 30.000 0°...
-
Page 36: Connection Diagrams
P.36 PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ Connection Diagrams... -
Page 37: Ps15, Ps15Td Mkii & Ls1200 : Specifications, Curves & Diagrams
P.37 PS15, PS15TD MKII & LS1200 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ PS15, PS15TD MKII & LS1200 : SPECIFICATIONS, CURVES & DIAGRAMS SYSTEM SPECIFICATIONS PS15 with PS15 TDcontroller MK2 LSub 1200 with PS15 TDcontroller MK2 Frequency Response [a] 50 Hz - 18 kHz ±3 dB 30 Hz - 120 Hz ±3 dB Usable Range @-6 dB [a] 47 Hz - 18 kHz... - Page 38 LS1000. As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice. [a] Response curves & data : Anechoic Far Field for the PS15 + PS15TD. Half-Space Anechoic radiation for the LS1000 + PS15TD.
- Page 39 P.39 PS15, PS15TD MKII & LS1200 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ PS15 : Curves ON AXIS RESPONSE (dB) TOTAL DISTORSION (%) 10.000 -10.00 -20.00 -30.00 c 9 : On axis responses PS15 & PS15 + LS1000 c 10 : PS15 + LS1000 : THD for 115 dBSPL @ 1m. IMPEDANCE 32 Ohm 16 Ohm...
- Page 40 P.40 PS15, PS15TD MKII & LS1200 : SPECIFICATIONS, CURVES & DIAGRAMS ___________________________________________________________________________________________________ Connection Diagrams...
