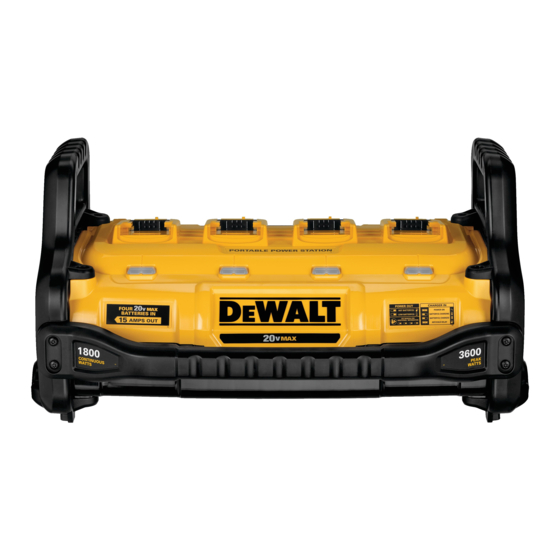

DeWalt DCB1800 Quick Start Manual

How to read Front Panel LED indicators in Power-Out Mode
• Slow flashing yellow (and 10 beeps of 1 second) = low battery
• Solid yellow (and 10 beeps of 1 second) = hot battery
• 4 yellow scrolling (and two beeps every 30 seconds) = approaching low battery
• 2 yellow flashing, alternating (and 10 beeps of 1 second) = system fault
How To Turn on Charger
1) Plug In female end of extension cord (sold separately) to Charger-In Plug
2) Plug male end of extension cord into wall
3) Fully insert 20V MAX* battery(ies) to charge
How to read Front Panel LED
indicators in Charger-In Mode
• Slow Flashing Red = battery(ies) charging
• Solid Red = battery(ies) charged
• Quick Flashing Red = hot/cold delay
BASIC TROUBLESHOOTING
Portable power station/charger does not operate or turn ON when ON/OFF button is pressed
• Check that all four batteries have sufficient charge (at least 1 green LED light, ideally 2 or 3 green LED lights on battery fuel gauge, if equipped).
• Remove batteries and reinsert fully into the tool.
• Check that batteries are within operating temperature (solid yellow light will illuminate if battery overtemp condition).
• Be sure nothing is plugged into "Charger-In" plug.
Portable power station/charger turns off during high power operation
• Check to make sure load does not exceed capacity of portable power station/charger (15 amps). If it trips a 15 amp circuit
breaker, it will likely trip the portable power station/charger.
• Try using four of the same, premium (3.0Ah or greater) batteries fully charged. Compact (2.0Ah or less) batteries may not
provide the output needed for high power operation.
Device does not operate with portable power station/charger
• Consult manufacturer of device for use with modified sine wave.
Portable power station/charger does not charge
• Check the connection of the extension cord on both ends; be sure female end is securely plugged into Charger-In plug of the portable power station/charger.
• Check that electricity is flowing to extension cord using another device (light, tool, etc.).
• Remove batteries and reinsert fully into the tool.
DCB1800 QUICK START GUIDE
WARNING:
TO REDUCE THE RISK OF INJURY, USER MUST READ
INSTRUCTION MANUAL BEFORE OPERATING PRODUCT.
QUICK START GUIDE IS NOT A SUBSTITUTE FOR INSTRUCTION MANUAL.
DO NOT EXPOSE TO WATER, RAIN, SNOW, OR ANY TYPE OF MOISTURE.

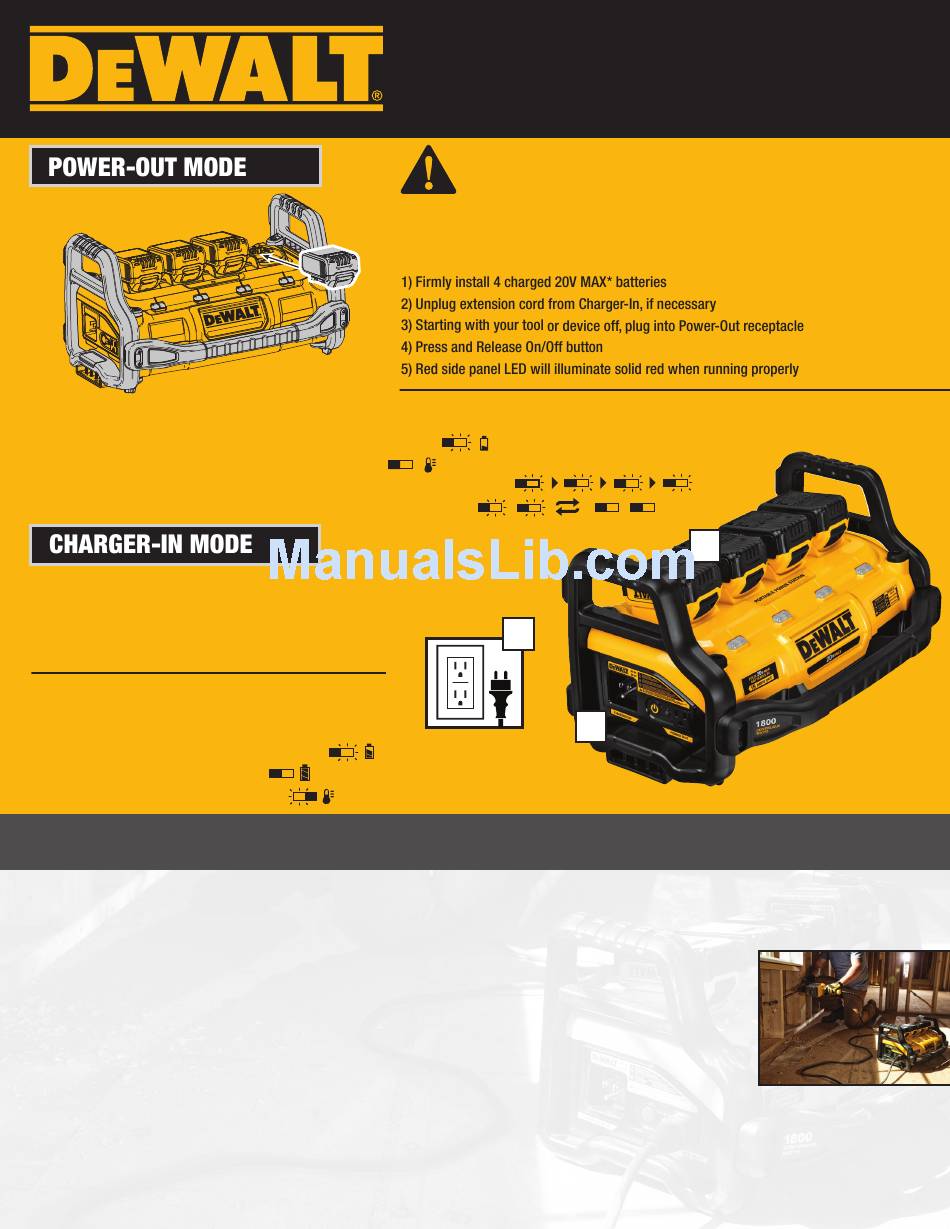

How to Turn on Power-Out mode
2
3
1
