Summary of Contents for DeWalt DCB1102
- Page 1 DCB1102...
- Page 2 English (original instructions) Copyright D WALT...
- Page 3 Fig. A XXXX XX XX...
-
Page 4: Technical Data

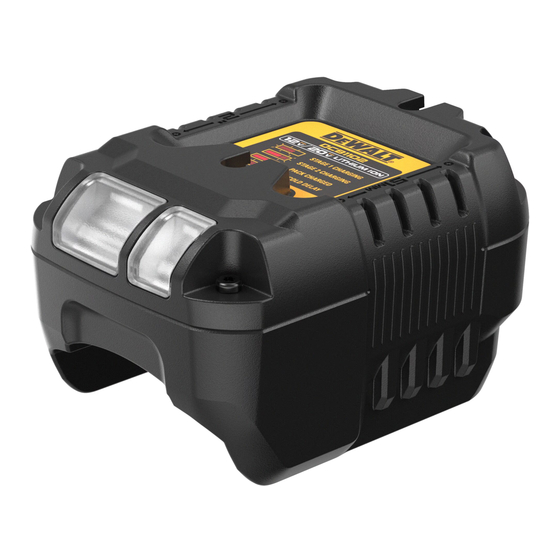

English BATTERY CHARGER DCB1102 Congratulations! You have chosen a D WALT charger. Years of experience, thorough product development and innovation make D WALT one of the most reliable partners for professional power tool users. Technical Data DCB1102 Output Mains voltage Type Battery type Li‑Ion... -
Page 5: Important Safety Instructions For All Battery Chargers
English Batteries DCB1102 Cat # Weight (kg) Chargers/Charge Times (Minutes) DCB546 18/54 6.0/2.0 1.05 DCB547 18/54 9.0/3.0 1.46 DCB548 18/54 12.0/4.0 1.44 DCB181 0.35 DCB182 0.61 DCB183/B 0.40 DCB184/B 0.62 DCB185 0.35 DCB187 0.54 DCB189 0.54 DCBP034 0.31 DCB122 0.22 DCB124 0.25... - Page 6 English • Children are not allowed to use or play with this charger. This charger can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: Electrical Safety
English Electrical Safety The charger has been designed for one voltage only. Make sure that the voltage of your charger corresponds to that of your mains. Your D WALT charger is double insulated in accordance with EN60335; therefore, no earth wire is required. If the supply cord is damaged, it must be replaced only by D WALT or an authorised service organisation. -
Page 8: Description (Fig. A)
Battery release button Charger Intended Use The DCB1102 charger is designed for charging 12V and 18V D WALT Li‑Ion XR and XR FLEXVOLT battery packs: DCB122, DCB124, DCB124G, DCB125, DCB126G, DCB127, DCB181, DCB182, DCB183, DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCBP034, DCB546, DCB547, DCB547G, DCB548, DCB549. -
Page 9: Electronic Protection System
English Stage 2 charging lights remain ON continuously, and it may be removed and used at this time or left in the charger. nOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed. 2 Indicators Stage 1 Charging Stage 2 Charging Fully Charged Hot/Cold Pack Delay*... -
Page 10: Maintenance
Only wall mount DCB1102 charger with the charging lights pointed upward toward the ceiling. nOTE: Do not attempt to mount DCB1102 under or on top of a bench or table. MAINTENANCE Your battery charger has been designed to operate over a long period of time with a minimum of maintenance. -
Page 11: Rechargeable Battery Pack
English Rechargeable Battery Pack This long‑life battery pack must be recharged when it fails to produce sufficient power on jobs that were easily done before. At the end of its technical life, discard it with due care for our environment: • Run the battery pack down completely, then remove it from the tool. - Page 12 Belgique et WALT ‑ Belgium BVBA Tel: NL 32 15 47 37 63 www.dewalt.be luxembourg België Egide Walschaertsstraat 16 Tel: FR 32 15 47 37 64 enduser.BE@SBDinc.com en luxemburg 2800 Mechelen Fax: 32 15 47 37 99 Danmark WALT (Stanley Black&Decker AS)
