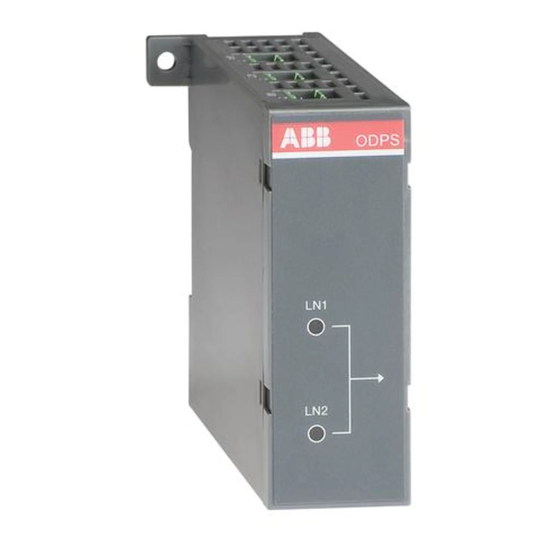

- Page 1 34ODPS A/ 1SCC390112M0201 Dual Power Source, ODPSE230C Installation and operating instructions O D P...
- Page 2 Introduction ODPSE230C is used to provide power supply for motorized switches and breakers by using two lines, Line I and Line II. Features • Protects the motor operator against over and undervoltage • No need for external supply voltage • Isolation provided between line I and II Status indication A green LED light for Line I and Line II indicates that voltage is between specified range. In case of anomaly LEDs are...
-
Page 3: Technical Data
Technical data Voltage and current limits Rated AC voltage 220 … 240 V +/-20%, 50/60 Hz +/-10% Output current Max 4 A Operating time Main circuit connections X11:1 Line I Phase X11:2 Line I Neutral X13:1 Line II Phase X13:2 Line II Neutral X12:1 Motor operator Phase X12:2 Motor operator Neutral Connection cables... -
Page 4: Connection Diagram
Picture 4 Connectors Dimensions Connection diagram Picture 5 Dimensions of the device Picture 6 Connection diagram ABB Oy Low Voltage Switches P.O Box 622 FI-65101 VAASA, Finland Telephone +358 10 22 11 The technical data and dimensions are valid Telefax +358 10 22 45708 at the time of printing. We reserve the right to www.abb.com subsequent alterations...
