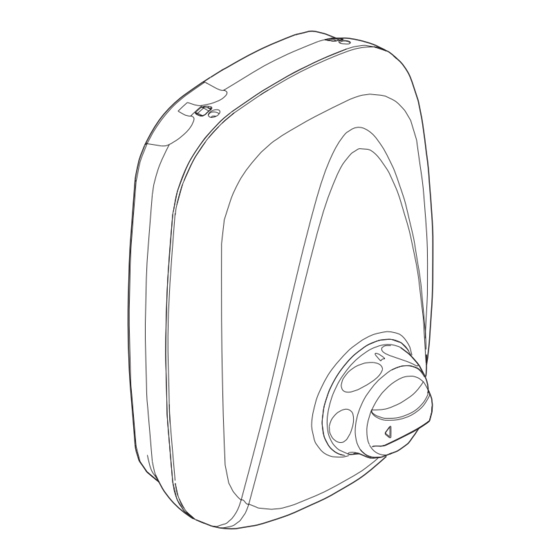

    INTRODUCTION The Mira Vigour Thermostatic Power Shower is an all-in-one power shower with an integral mains voltage pump and separate controls for flow and temperature. It features a 15 mm dual entry push-fit manifold which supports various inlet supply configurations. The manifold includes inlet filters and check valves. The thermostatic mixer incorporates a wax capsule sensing unit.
  • Page 4: Important Safety Information

    18. DO NOT fit any form of outlet flow control as the outlet acts as a vent for the tank body. Only Mira Showers recommended outlet fittings should be used. 19. If water leaks from the pressure relief valve, maintenance will be required before the appliance can be safely used.
  • Page 5 22. DO NOT operate this appliance if water leaks from this appliance. 23. Only a competent person should remove the front cover. We recommend any maintenance work is carried out by a Mira Service Engineer or qualified tradesperson. 24. Mains connections are exposed when the cover is removed. Isolate the electrical and water supply before removing the cover.
  • Page 6: Caution

    Caution! Read all of these instructions and retain this guide for later use. Make sure that this guide is left with the user Pass on this guide in the event of change of ownership of the installation site. Follow all warnings, cautions and instructions contained in this guide, and on or inside the shower.
  • Page 7: Pack Contents

    PACK CONTENTS   Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included.  1 x Thermostatic Power Shower  4 x Case Inserts  1 x Flow Control Knob ...
  • Page 8: Dimensions

    DIMENSIONS All dimensions are nominal and in millimetres.
  • Page 9: Specifications

    Maximum static pressure - 100 kPa (1 bar) or 10 m head of water. Duty Cycle - The Mira Vigour Thermostatic Power Shower pump is now continuously rated. The motor is fitted with a self-resetting thermal trip, designed to operate if motor temperatures become too high due to abnormally high supply voltages.
  • Page 10: Installation Requirements

    INSTALLATION REQUIREMENTS Gravity Fed system - The shower MUST be fed from a cold water cistern and hot water cylinder providing nominally equal pressure. 30° - 60° 10 m Maximum 80 mm Minimum...
  • Page 11: Installation

    INSTALLATION General Do not take risks with plumbing or electrical equipment. Do not install the shower unit in a position where it could become frozen. Isolate electrical and water supplies before proceeding with the installation of the shower unit. The shower unit must be fed from a cold water storage cistern and hot water cylinder with equal pressures.
  • Page 12: Plumbing

    Plumbing A minimum storage capacity of cold water of 230 litres (50 gallons) is required to provide adequate showering time. Insufficient storage may result in the pump being run dry. Layout and sizing of pipework must be such that nominally equal inlet supply pressures are achieved and the effects on the shower performance of other draw-offs are minimised.
  • Page 13 Warning! Do not fix the shower unit to the wall until plumbing and electrical installations have been completed. Decide on a suitable location for the shower unit avoiding buried cables and pipes. The unit should be positioned at a height convenient for all the family (at least 200 mm below the ceiling to allow for the fitting and removal of the unit cover).
  • Page 14 Make sure that the end of the supply Chamfer pipework is cut squarely and is free from burrs, which will damage the inlet manifold seals. Chamfer the end of the pipe to assist insertion into the fitting and prevent the ‘O’ seal tearing. Warning! Do not insert fingers into the push-fit connectors as this can result in injury.
  • Page 15 Temporarily locate the shower unit. Position the shower unit on the wall and mark the three fixing points. Note! Installers may wish to obtain alternative proprietary cavity fixings for dry lined, stud partition or dry partition wall structures. Use the push-fit release tool to push the grey collars into the manifold to release the shower unit from the supply pipes.
  • Page 16 12. Fit the three rubber feet into the Rubber Feet recesses in the rear of the case as shown. The feet will reduce the noise transmitted by the power shower through the wall. Warning! Blanking plates should be fitted to stop water ingress into the inside of the unit.
  • Page 17 14. Locate the shower unit on the inlet supplies and push the inlet manifold onto the pipework until resistance is felt. DO NOT FORCE! Note! PTFE tape or liquid jointing compound must not be used and is not required to assist connection. 15.
  • Page 18 19. Refit the unit cover and secure with the three cover securing screws. OFF Position 20. Insert the flow control knob in the OFF position. 21. Insert the temperature indicator trim and the inner temperature control knob. 22. The power thermostatic shower will Flow Control now require commissioning, refer to Knob...
  • Page 19: Commissioning

    COMMISSIONING The unit must not be run dry. Before proceeding any further with the installation the shower unit must be commissioned. Connect the flexible hose to the outlet of the shower unit. Caution! Do not over tighten. Hose Washer Hose Turn on the water supplies and check for leaks.
  • Page 20: Maximum Temperature Setting

    Maximum Temperature Setting It may be necessary to adjust the maximum temperature for site conditions to make sure of safe showering from the unit. Make sure that the hot water temperature is at least 12 °C above the required temperature for correct operation of the thermostatic power shower.
  • Page 21 Caution! When resistance is felt DO NOT USE FORCE to turn the spindle any further as this is the maximum shower temperature obtainable with the available hot water storage temperature. FORCE will DAMAGE the internal components. Turn the temperature spindle until the maximum water temperature required Temperature Spindle is obtained.
  • Page 22: Disabling The Temperature Override Button

    Disabling the Temperature Override Button The temperature override button allows the user to override the preset maximum temperature. The temperature override button should be disabled if the power shower is to be used by the young, the elderly, the infirm, or anyone inexperienced in the correct operation of the controls.
  • Page 23: Operation

    OPERATION For safety reasons this appliance is fitted with an adjustable maximum temperature setting. This must be checked and adjusted as necessary to suit both site conditions and user’s comfort. Turn the outer flow control knob until the desired flow of water is obtained.
  • Page 24 To override the preset maximum temperature press the override button and turn the inner temperature control knob anticlockwise. Press the Override Button and turn the Inner Temperature Control Knob anticlockwise. Turn the outer flow control knob fully clockwise to stop the flow of water.
  • Page 25: Fault Diagnosis

    FAULT DIAGNOSIS Fault Diagnosis - User Maintenance The appliance is fully performance tested after assembly. Providing it has been correctly installed and is operated as advised, difficulties should not arise. In the unlikely event that you experience problems with your appliance then the following procedure will enable you to undertake basic fault finding before contacting the person responsible for installing your shower.
  • Page 26: Fault Diagnosis - Installer Maintenance

    In the event of any of the following tests failing, re-check as appropriate before contacting the Mira Showers Customer Support Department, refer to the back cover of this guide. Malfunction...
  • Page 27 Malfunction Cause Remedy The maximum Hot water cylinder Adjust the cylinder shower temperature less than temperature. Note! It is temperature is too 12 °C above the showering recommended that the stored cold. temperature. water temperature does not exceed 65 °C. Maximum temperature Reset the maximum incorrectly set.
  • Page 28: Maintenance

    MAINTENANCE Warning! There are no user serviceable components beneath the cover of the appliance. Only a competent tradesperson should remove the cover. Before removing the cover, the electricity supply must be turned off at the mains and if applicable, the appropriate circuit fuse removed. Mains electrical connections are exposed when the cover is removed.
  • Page 29: Spare Parts

    SPARE PARTS 147.67 Check Valve Pack 453.01 Cartridge - Thermostatic 453.03 Motor Pump Assembly - components identified ‘A’ 453.07 Inlet Manifold Assembly - components identified ‘B’ 453.08 PCB Assembly - Power 453.12 Harness Assembly - Concentric - components identified ‘C’ 453.13 Solenoid Valve Assembly - components identified ‘D’...
  • Page 30: Accessories

    ACCESSORIES Genuine Mira accessories can be purchased direct from Customers Services (our contact details can be found on the back cover of this guide) or from approved stockists or merchants. Eco Showerhead Everclear Showerhead White - 2.1668.001 White - 2.1616.030 Chrome - 2.1668.002...
  • Page 31: Notes

    NOTES...
  • Page 32: Customer Service

    fi lters) or where no fault has been found with guarantee period and beyond. You have the assurance of a the product. fully trained Mira Technician, genuine Mira spare parts and Water or electrical supply, waste and isolation issues. a 12 month guarantee on any chargeable work done.
