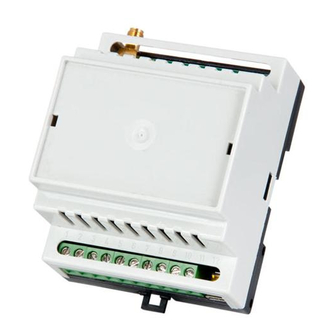

- Page 1 GSM SWITCH - GATE CONTROLLER ESIM120...
-
Page 2: Safety Instructions
• DO NOT attempt to personally repair the system. • System label is on the bottom side of the device. System ESIM120 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance must not be done during stormy conditions. -
Page 3: Table Of Contents
About User Manual This document describes GSM switch - gate controller ESIM120, its operation and installation. It is very important to read User Manual before start using the system. A quick start guide is located in first two chapters. Chap-... -
Page 4: General Information
1.2 Operation Description System ESIM120 operates over GSM network. Gates are opened or any other electric appliance is turned on/off by making a phone call to the system. The phone call is automatically rejected by the system, therefore the phone call becomes free of charge. -
Page 5: Connector And Led Indicators Functionality
NOTE Gate controller Gate controller Although the installation of system ESIM120 is not complex, we highly Fig. No. 2 recommend installing the device only in the case if you have minimal electrotechnical or electronics knowledge. Otherwise you can damage the device. -
Page 6: System Pre-Operation, Control & Configuration
The system can also be configured remotely by connecting over GPRS connection. Please, refer to chapter 3.3 for more details. System configuration and control using SMS messages is performed by sending it to ESIM120 phone number from one of the authorized phone numbers. The structure of SMS message consists of 4 digit SMS password (the default SMS password is 0000 – four... -
Page 7: Sms Password
44[area code][local number]. The plus symbol is not necessary. Phone number length – up to 15 digits. SMS text: XXXX_NR1:37011111111_NR2:37011111112_ NR3:37011111113_NR4:37011111114_NR5:37011111115 Example: 1111_NR1:37011111111_NR3_37011111113 To receive the list containing added administrator numbers send the following SMS message. List Administrator Numbers SMS text: XXXX_HELPNR Example: 1111_HELPNR MANUAL ELDES ESIM120 V1.0... -
Page 8: Date & Time Settings
This SMS message erases a particular or several administrator phone numbers at once. The Delete Administrator system will not allow erasing of the User 1 phone number. This number can only be modified. Numbers SMS text: XXXX_NR2:DEL_NR3:DEL_NR4:DEL_NR5:DEL Example: 1111_NR4:DEL_NR5:DEL 2.4 Date & Time Settings It is important to set correct date and time so that the system can send reports at specified Date &... -
Page 9: User Database Management
To receive the list containing added database users send the following SMS message. List Users SMS text: XXXX_GETALLNUMBERS Example: 1111_GETALLNUMBERS ATTENTION:Depending on entered user numbers and/or user names you might receive more than 55 SMS messages! MANUAL ELDES ESIM120 V1.0... - Page 10 This feature allows to erase a particular user or several users from the database. It is possible to Delete User (-s) delete a user (-s) by user name or by phone number. SMS text: XXXX_D:37011111111 XXXX_D:UserName Example: 1111_D:37011111111_UserName2_UserName3 This feature allows to erase all users from the database (not the administrator numbers) at Delete All Users once. SMS text: XXXX_D:ALL Example: 1111_D:ALL This feature allows to search for a user in the database. It is possible to search for user by user Search for User name or by phone number.
- Page 11 The user database allows to assign output C1, output C2 or both outputs to a particular user Assign Output who will be able to control the output (-s). It is possible to assign by user name or by phone (-s) to User number. SMS text: XXXX_OUTPUT_37011111111_X XXXX_OUTPUT_UserName_X Value: X – output (-s), range – [1 – C1 output, 2 – C2 output, 3 – both outputs] Example: 1111_OUTPUT:UserName1_3 MANUAL ELDES ESIM120 V1.0...
- Page 12 This feature allows to check which output (-s) is assigned to a particular user in the database. Check Assigned It is possible to check by user name or by phone number. Output SMS text: XXXX_OUTPUT_37011111111_? XXXX_OUTPUT_UserName_? Example: 1111_OUTPUT_37011111111_? Ring Counter feature sets the user validity limit according to the quantity of allowed phone Set Ring Counter calls to the system.
- Page 13 (-s) for User possible to enable the scheduler by user name or by phone number. For more details on how to set the schedulers, please, refer to chapter 2.6 SMS text: XXXX_NSCHED_37011111111_1:ON_2:ON_3:ON_4:ON_5:ON_6: ON_7:ON_8:ON XXXX_NSCHED_UserName_1:ON_2:ON_3:ON_ 4:ON_5:ON_6:ON_7:ON_8:ON Example: 1111_NSCHED_37011111111_2:ON_3:ON_8:ON MANUAL ELDES ESIM120 V1.0...
- Page 14 Disable Scheduler The user database allows to disable one or several schedulers by their number. The scheduler sets a period of time according to which a particular user gains access to output control. It is (-s) for User possible to disable the scheduler (-s) by user name or by phone number. For more details on how to set the schedulers, please, refer to chapter 2.6 SMS text: XXXX_NSCHED_37011111111_1:OFF_2:OFF_3:OFF_4:OFF_5:O FF_6:OFF_7:OFF_8:OFF...
-
Page 15: Scheduler Settings
Saturday; SU – Sunday; AL – always. Example: 1111_SCHED2_ST:08:15_EN:18:00_TU:OFF_WE:OFF_ SU:OFF NOTE: Several weekdays for particular scheduler can be enabled and disabled at once by sending one SMS message. Example: 1111_SCHED5_ST:09:20_EN:15:43_MO:ON_TU:OFF_SA:OFF NOTE: When AL (always) parameter is enabled, other weekday parameters become inactive. MANUAL ELDES ESIM120 V1.0... -
Page 16: Output Configuration
2.7 Output Configuration Manufacturer default C1 and C2 output names: C1 – Controller1, C2 – Controller2. The Output Name length of each output name can be up to 10 characters including space symbol. Send the following SMS message in order to set a new output name. SMS text: XXXX_Cx:NewOutpuName Value: x –... - Page 17 For more details on how to set the schedulers, please, refer to chapter 2.6 SMS text: XXXX_OSCHEDx_1:OFF_2:OFF_3:OFF_4:OFF_5: OFF_6:OFF_7:OFF_8:OFF Value: x – output number; range – [1.. 2] Example: 1111_OSCHED2_4:OFF_6:OFF_7:OFF_8:OFF NOTE: Several schedulers can be enabled and disabled for particular output at once by sending one SMS message. Example: 1111_OSCHED1_1:ON_4:OFF_7:ON_8:OFF MANUAL ELDES ESIM120 V1.0...
-
Page 18: Input & Output Status
2.8 Input & Output Status This feature allows to receive a report by SMS on the present input & output status (enabled/ Input & Output disabled), input & output names and input delay value. Status SMS text: XXXX_STATUS Example: 1111_STATUS 2.9 Input Configuration Manufacturer default input names: Z1 – Zone1, Z2 – Zone2, Z3 - Zone3. The length of each Input Name input name can be up to 8 characters including space symbol. Send the following SMS mes- sage in order to set a new name. -
Page 19: Info Sms
Info SMS is a system status report that can be requested at any time. It contains information Info SMS on system date, time, GSM signal strength and user database memory status. In addition Info SMS can be useful to check the system status (online/offline) and for prepaid SIM card users in order to check whether the credit is sufficient for sending SMS messages (no SMS reply – system offline or out of credit). SMS text: XXXX_INFO Example: 1111_INFO MANUAL ELDES ESIM120 V1.0... -
Page 20: Confirmation By Call Upon Output Control Action
The ring duration depends on the GSM operator. In case the user answers the phone call, he/she will be able to listen on the phone to what is happening around ESIM120 (a microphone must be connected to ESIM120). The “phone conversation” lasts until the user hangs up the phone. -
Page 21: Control From Any Phone Number
In order to enable this feature, send the following SMS message. SMS text: XXXX_ALLNUM:ON Example: 1111_ALLNUM:ON In order to disable control from any phone number, send the following SMS message. Disable Control from Any Phone Number SMS text: XXXX_ALLNUM:OFF Example: 1111_ALLNUM:OFF MANUAL ELDES ESIM120 V1.0... -
Page 22: Event Log Deletion
SMS text: XXXX_DELETELOG Example: 1111_DELETELOG NOTE: Log feature must be enabled using ELDES Configuration Tool or remotely by connecting to the system over GPRS. Otherwise this SMS command will have no affect. 2.14 System Restart In order to fully restart the system remotely, send the following SMS message. -
Page 23: Appendix
To configure the system quicker and easier as well as to use more system capabilities, please install configuration software ELDES Configura tion Tool which can be downloaded from ELDES website at www.eldes.lt Before connecting USB cable to the computer, please, read ELDES Configuration Tool user guide available in the HELP section of the software. - Page 24 GPRS connection. Use one-time GPRS parameters when you want to change only one or several parameters from the standart GPRS parameters and use it only for upcoming session. *3 – For more information download ESIM120 GPRS manual from www.eldes.lt website. *4 - If session ends and you haven”t made all the necessary configurations, you will have to start a new session and login to a webpage with new username and password (repeat all steps from no.2).
- Page 25 The code name of the standart GPRS parameters. Configurable only by profile Code name profile1 Both software or using web interface. ELDES server parameter. It is recommended not to change this default IP or DNS address config.eldes.lt Client parameter. ELDES server parameter. It is recommended not to change this default...
-
Page 26: Technical Support
• incorrect syntax • extra space symbol left in SMS message For product warranty repair service, please, contact your local retail store where this product was purchase. If your problem could not be fixed by the self-guide above, please, contact your distributor or ELDES technical support by email support@eldes.lt More up to date information about your device and other products can be found at the manufacturer”s website www.eldes.lt... - Page 27 MANUAL ELDES ESIM120 V1.0...
- Page 28 Made in Lithuania. www.eldes.lt...
